Shop FILL-RITE

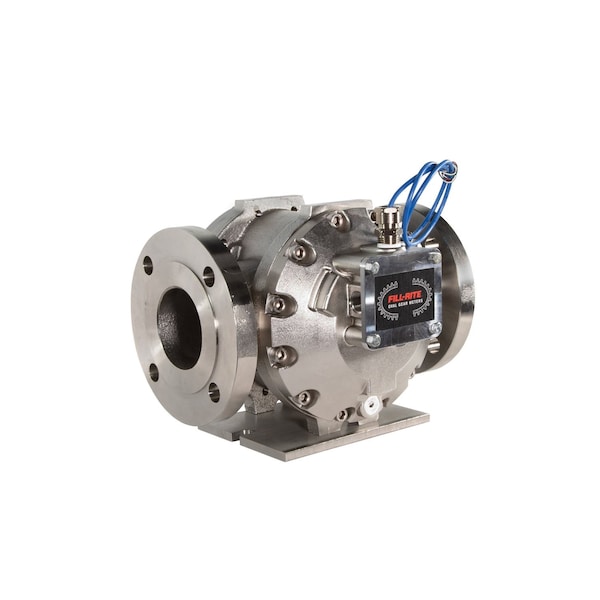

Positive Displacement Flowmeter, 3 in Sz

  • Mfr # TS30CW04CHTAN

  • Zoro # G816518406


product price:
$
15,413.99
/ea
Free Shipping & Returns

Key Features

Compatible Flow Material
Pesticides
Includes Totalizer
No
Rotor Material
PPS
Media Temperature - Maximum
180 Degrees F
Media Temperature - Minimum
-15 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TS30CW04CHTAN
Zoro #
G816518406
UPC #
089404254271
Country of Origin
United States

Dimensions

For Pipe Size
3 in
Connection Size
3 in
Manufacturer Warranty Length
2

Details

Item
Positive Displacement Flowmeter
Compatible Flow Material
Pesticides
Includes Totalizer
No
Rotor Material
PPS
Media Temperature - Maximum
180 Degrees F
Media Temperature - Minimum
-15 Degrees F
Mounting Orientation
Universal
Shaft Material
Stainless Steel
Wetted Material
316 Stainless Steel, Anodized Aluminum, Viton, PTFE
Includes Pressure Gauge
No
O-Ring Material
PTFE
Display Type
No Display
Flow Rate - Minimum
40 gpm
Unit Of Measure
Gallons
Housing Material
316 Stainless Steel
Output Type
Standard Frequency Pulse
Seal Material
PTFE
Standards
NTEP
Flow Rate - Maximum
240 gpm
Product Type
Rotary Positive Displacement Meter
Flowmeter Type
Positive Displacement
Viscosity - Maximum
300 cSt
Operating Pressure - Maximum
400 psi
Voltage - Maximum
12V DC
Connection Type
Flange
Accuracy
+/-0.5%
Includes Flow Rate Adjustment Knob
No

Description

Positive Displacement Flowmeter, Product Type Rotary Positive Displacement Meter, Flowmeter Type Positive Displacement, Accuracy +/-0.5 Percent, Connection Size 3 in, Connection Type Flange, Compatible Flow Material Pesticides, Media Temperature - Maximum 180 Degrees F, Media Temperature - Minimum -15 Degrees F, Viscosity - Maximum 300 cSt, Voltage - Maximum 12V DC, Housing Material 316 Stainless Steel, Rotor Material PPS, O-Ring Material PTFE, Seal Material PTFE, Shaft Material Stainless Steel
