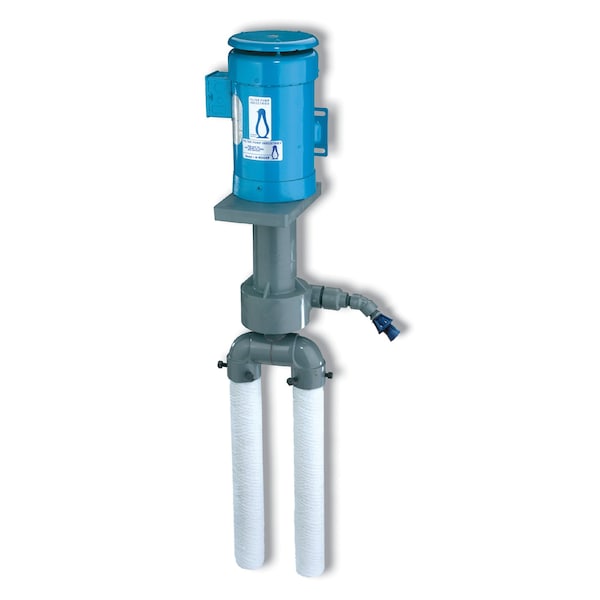

In-Tank Suction, with eductor, 3400 gph max, 1/2 HP, 1-PH, CPVC/EPDM, 1in NPT Disch

Penguin SF Series in-tank suction filtration systems constructed from A CPVC, B Polypro, or C PVDF, depending on model number, withno metal contact. They are corrosion- resistant and designed for continuous-duty operation and virtuallytrouble-free service. Series SF filtration systems are easy-to-install and maintain. Pumps are sealess, cantilever design, run dry without damage, self-priming when fully immersed in liquid, tank-lip mounted. Pumps include an eductor mounted for agitation by inducing an additional 4 gpm of flow for every 1 gpm of effluent pumping, Can be used with a variety of filter cartridges and ships with standard string wound filter cartridges. Applications include Plating Solutions, Acids, Alkalines, Rinse Tanks, Solution pumping, filtration, and/or agitation.

• • Chemical Filter System
• • Sealless, cantilever design
• • Tank-lip mounted inside the tank with no floor space required
• • Self-priming when fully immersed in liquid
• • Filtration rates up to 3400-GPH
• • Runs dry without damage
• • CPVC, polypropylene, or PVDF eductor provides increased agitation
• • Accepts a variety of cartridges types, 1"ID
