Shop FINISH THOMPSON

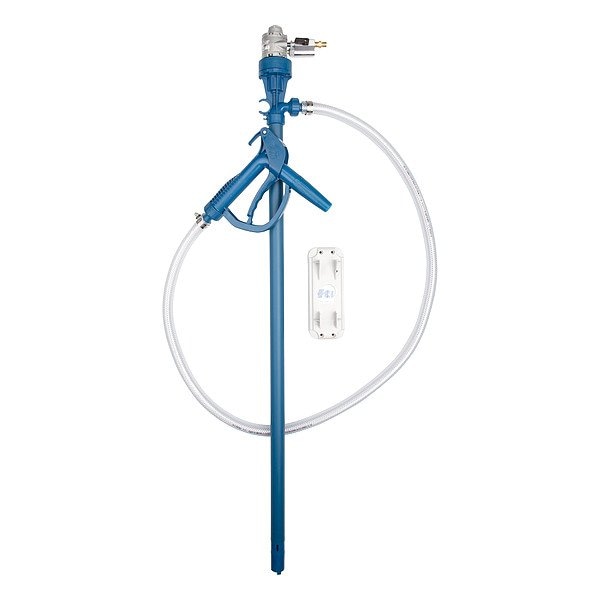

Air Drum Pump Kit, 15 gpm, 7.4 psi

  • Mfr # EFP-40 & S4 Kit

  • Zoro # G921683099

product price:  $736.99
/ea
Free Shipping & Returns

Key Features

Hose Tube Material
PVC
Wetted Material
316 SS/FKM/PP/PTFE
Discharge Tube Outlet ID
3/4 in
Housing Material
Polypropylene
Air Outlet Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EFP-40 & S4 Kit
Zoro #
G921683099
UPC #
-
Country of Origin
United States

Dimensions

Air Outlet Size
1/4 in
Hose Length
60 in
Spout Length
1 in
For Container Size
55 gal
Air Inlet Connection Size
1/4 in
Hose Inside Diameter
3/4 in
Suction Tube Length
40 in
Spout Connection Size
3/4 in

Details

Hose Tube Material
PVC
Wetted Material
316 SS/FKM/PP/PTFE
Discharge Tube Outlet ID
3/4 in
Housing Material
Polypropylene
Thermal Protection
No
Nozzle Operation
Manual
Mounting Bracket Included
Wall Mounting Bracket
Static Protection
Not Groundable
Power Source - TS Only
Air
Suction Tube OD
1 1/4 in
For Container Type
Drum
Pump Technology
Centrifugal
Standards
CE
Suction Tube ID
2 1/4 in
Maximum Outlet Pressure
7.4 psi
Maximum Viscosity
300 cps
Meter Type Included
No Meter Included
Includes Follower Plate
No Follower Plate Included
Maximum Flow Rate
15 gpm
Maximum Head Pressure
7.4 psi
Item
Air Drum Pump Kit
Duty Cycle
Continuous
Hazardous Location Class
Not Rated
Includes
Clamp, Hose, Motor, Mount, Pump
Variable Speed
Yes
Includes Bung Adapter
No
Air Consumption
27 cfm
Motor Horsepower
1/2 hp
Discharge Tube Outlet OD
1 in
Spout Material
PVDF
Container Cover Type Included
No Cover Included
Includes Nozzle
Yes
Maximum Air Pressure
40 psi
Minimum Air Pressure
40 psi
Hose Cover Material
PVC
Includes Discharge Hose
Yes
Includes Spout
Yes
Motor Speed
11,000 RPM
Air Inlet Connection Type
MNPT
Includes Suction Tube
Yes
Nozzle Material
Polypropylene/FKM
Spout Connection Type
Hose Barb
Maximum Fluid Temperature
150 Degrees F
Suction Tube Material
Polypropylene
Maximum Head
17 ft
Discharge Connection Type
Hose Barb
Minimum Fluid Temperature
35 Degrees F
Chemical Compatibility
Noise Level
78 dB
Power Source
Air

Description

Air Drum Pump Kit, Spout Connection Size 3/4 in, Suction Tube Material Polypropylene, Discharge Connection Type Hose Barb, Spout Length 1 in, Thermal Protection No, Air Outlet Size 1/4 in, Air Consumption 27 cfm, Hose Length 60 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter No, Includes Nozzle Yes, Includes Spout Yes, Adapter Material Not Applicable
