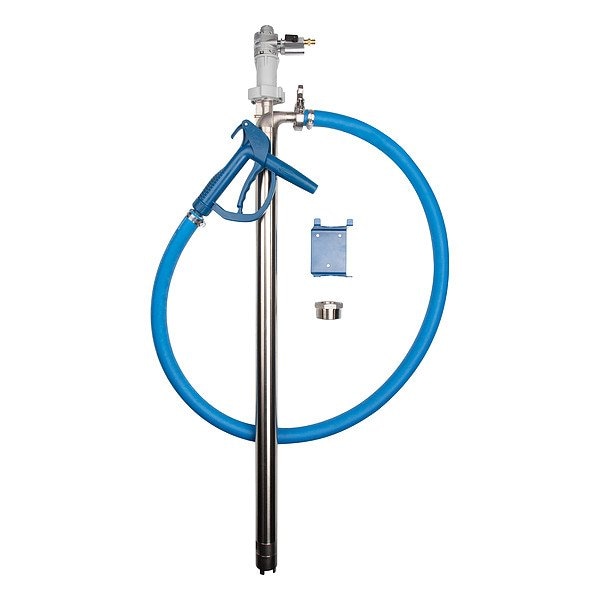

Air Drum Pump Kit, 22 gpm, 16.5 psi

  • Mfr # PFS-48-BTC & M6 Kit

  • Zoro # G721671760

product price:  $1,762.99
/ea
Free Shipping & Returns

Key Features

Suction Tube Length
48 in
Maximum Air Pressure
80 psi
Maximum Fluid Temperature
220 Degrees F
Adapter Connection Standard
Smooth Bore
Discharge Tube Outlet ID
1 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PFS-48-BTC & M6 Kit
Zoro #
G721671760
UPC #
-
Country of Origin
United States

Dimensions

Suction Tube Length
48 in
Hose Length
72 in
Air Outlet Size
1/4 in
Spout Length
1 in
For Container Size
275 gal
Adapter Connection Diameter
2 in
Air Inlet Connection Size
1/4 in
Spout Connection Size
1 in
Hose Inside Diameter
1 in

Details

Maximum Air Pressure
80 psi
Maximum Fluid Temperature
220 Degrees F
Adapter Connection Standard
Smooth Bore
Discharge Tube Outlet ID
1 in
Includes
Clamp, Hose, Motor, Mount, Pump
Mounting Bracket Included
Wall Mounting Bracket
Housing Material
316 Stainless Steel
Maximum Head Pressure
16.5 psi
Nozzle Operation
Manual
For Container Type
Tote
Meter Type Included
No Meter Included
Suction Tube ID
2 in
Minimum Air Pressure
80 psi
Discharge Tube Outlet OD
1 1/4 in
Maximum Viscosity
330 cps
Power Source - TS Only
Air
Noise Level
78 dB
Hazardous Location Class
Not Rated
Wetted Material
316 SS/Buna-N/ETFE/PTFE
Standards
FDA
Thermal Protection
No
Maximum Flow Rate
22 gpm
Includes Spout
Yes
Suction Tube Material
316 Stainless Steel
Includes Bung Adapter
Yes
Item
Air Drum Pump Kit
Motor Speed
9,000 RPM
Includes Nozzle
Yes
Nozzle Material
Polypropylene/Buna-N
Suction Tube OD
2 in
Static Protection
Not Groundable
Includes Suction Tube
Yes
Motor Horsepower
1/2 hp
Maximum Head
38 ft
Chemical Compatibility
Hose Cover Material
Buna-N
Hose Tube Material
Buna-N
Discharge Connection Type
Tri-Clamp
Includes Follower Plate
No Follower Plate Included
Container Cover Type Included
No Cover Included
Includes Discharge Hose
Yes
Minimum Fluid Temperature
-20 Degrees F
Variable Speed
Yes
Spout Connection Type
Hose Barb
Maximum Outlet Pressure
16.5 psi
Air Consumption
32 cfm
Duty Cycle
Continuous
Pump Technology
Centrifugal
Spout Material
Stainless Steel
Adapter Material
Polypropylene
Air Inlet Connection Type
MNPT
Power Source
Air

Description

Air Drum Pump Kit, Spout Connection Size 1 in, Suction Tube Material 316 Stainless Steel, Discharge Connection Type Tri-Clamp, Spout Length 1 in, Thermal Protection No, Air Outlet Size 1/4 in, Air Consumption 32 cfm, Hose Length 72 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout Yes, Adapter Material Polypropylene
