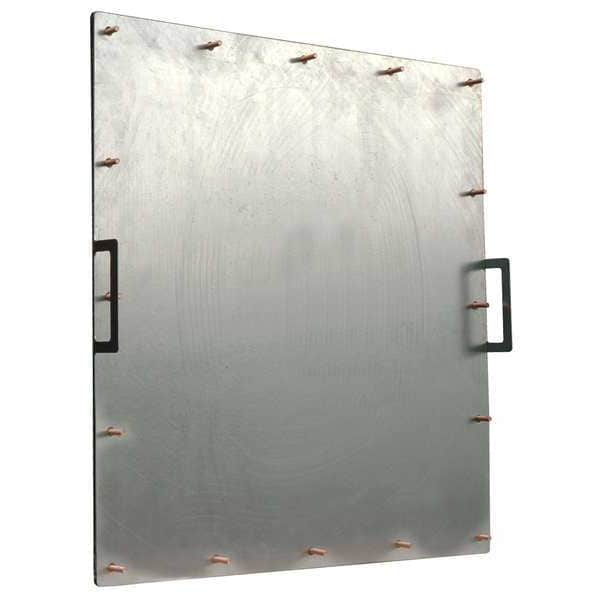

Duct Access Door, UL Rated, 23 x 23
Mfr # 6EJA9
Zoro # G1433135
product price:Â
$
175.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Material
Back Plate = Cold rolled Steel, Thickness-0.057 in (1.5mm) Front Plate = Galvanized Steel, Thickness-0.060 in (1.5mm)
Rough Opening Height
20 in
Rough Opening Width
20 in
Finish
Galvanized
Shape
Square
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6EJA9
- Zoro #
- G1433135
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Door Height
- 23 in
- Door Width
- 23 in
- Rough Opening Height
- 20 in
- Rough Opening Width
- 20 in
- Mounting Stud Length
- 1 in
- Material Thickness
- 16 ga
Details
- Material
- Back Plate = Cold rolled Steel, Thickness-0.057 in (1.5mm) Front Plate = Galvanized Steel, Thickness-0.060 in (1.5mm)
- Finish
- Galvanized
- Shape
- Square
- Standards
- UL Listed
- Item
- Duct Access Door
- For Duct Shape
- Rectangular
- Maximum Temperature Rating
- 2,300 Degrees F
- Door Shape
- Square
- Product Type
- Access Door
- For Media Type
- Grease
- Material Fabrication
- Cold Rolled
- Includes
- "E"-Clips For Each Stud, 1/4" Wing Nuts For Each Stud, Access Door Cover (Front Panel), Access Door Frame (Back Frame)
- Latch Type
- Thumbscrews
- Number of Mounting Stud
- 16
- Observation Port Material
- Steel
Description
Duct Access Door, Door Height 23 in, Door Shape Square, Door Width 23 in, Latch Type Thumbscrews, Material Thickness 16 ga, Maximum Temperature Rating 2,300 Degrees F, Mounting Stud Length 1 in, Number of Mounting Stud 16, Observation Port Material Steel, Rough Opening Height 20 in, Rough Opening Width 20 in, Standards UL Listed, Product Type Access Door, For Media Type Grease
