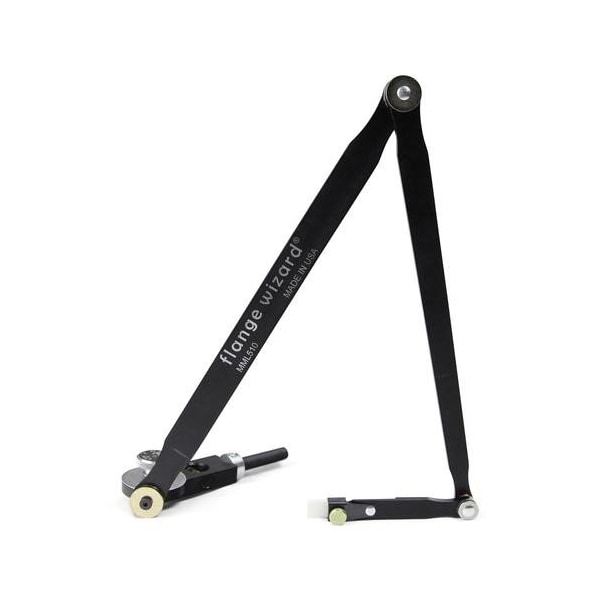

Master Marker Arm Assembly

The Flange Wizard® MLA510 Master Marker Arm Assembly is a versatile and precision-engineered tool designed to streamline the layout and marking process for pipe and structural beam projects. When paired with the On/Off Magnetic Body, this assembly enables professionals to replace multiple templates with a single, efficient solution, enhancing both accuracy and productivity.

• Wide Application Range: Accommodates pipe sizes from 8" to 48" and structural beams up to 48", making it suitable for a broad spectrum of projects.
• Enhanced Precision: The redesigned marking arm operates independently from the main body, featuring its own 360° rotating shaft with a built-in leveling vial. This design ensures accurate alignment and marking, even over existing welds or uneven surfaces.
• Adjustable and Telescopic Arm: Equipped with spring-loaded joints, the arm provides smooth operation and can telescope to navigate uneven surfaces, facilitating precise layout of angles and saddles on pipes and beams.
• Durable Construction: Built to withstand the rigors of industrial use, ensuring longevity and consistent performance in demanding environments.
