Multi-Hole Imager Tower Assembly

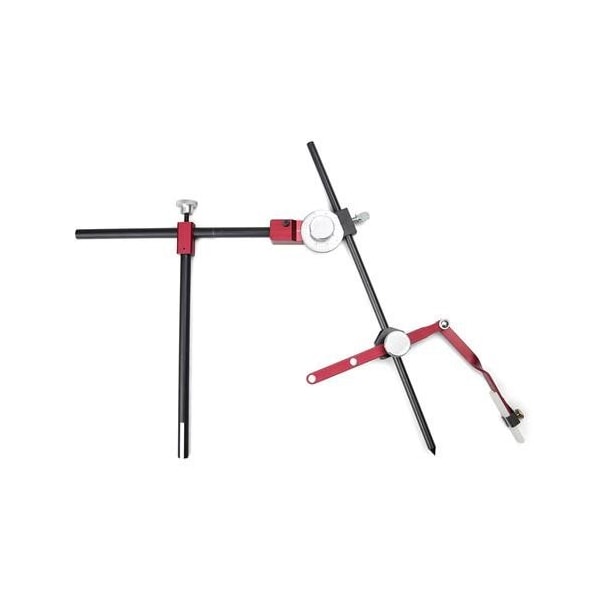

The Multi-Hole Imager is Flange Wizard®’s latest innovation in precision layout tools, designed to simplify marking round or elongated holes on flat, round, or irregular surfaces. With a strong on/off magnet, it securely holds in place while allowing for easy repositioning. A built-in leveling vial in the main tower ensures accurate alignment, while the adjustable protractor and sliding marking arm enable precise layout of elliptical holes in header pipes for matching compound pipe laterals or 90° saddle branches. This versatile tool replaces multiple templates, saving time and improving efficiency. It’s housed in a durable polypropylene case (p/n 8900) for protection between jobs. For non-magnetic surfaces, an optional Spring Buckle Strap (p/n 5010) keeps the tool securely positioned.

• Strong On/Off Magnet – Securely holds on flat, round, or irregular surfaces.
• Built-In Leveling Vial – Ensures precise and level layouts.
• Versatile Layout Capabilities – Marks round or elongated (elliptical) holes on flat material and pipes.
• Adjustable Protractor & Sliding Marking Arm – Provides accurate hole layout for lateral connections.
• 90° Saddle Branch Layouts – Easily creates matching holes at a perfect 90-degree angle.
• The Multi-Hole Imager is a must-have for professionals needing precision, reliability, and efficiency in their layout work.
