- MFR #
- VP05
- Zoro #
- G8769634
- UPC #
- -
- Country of Origin
- China
- Item

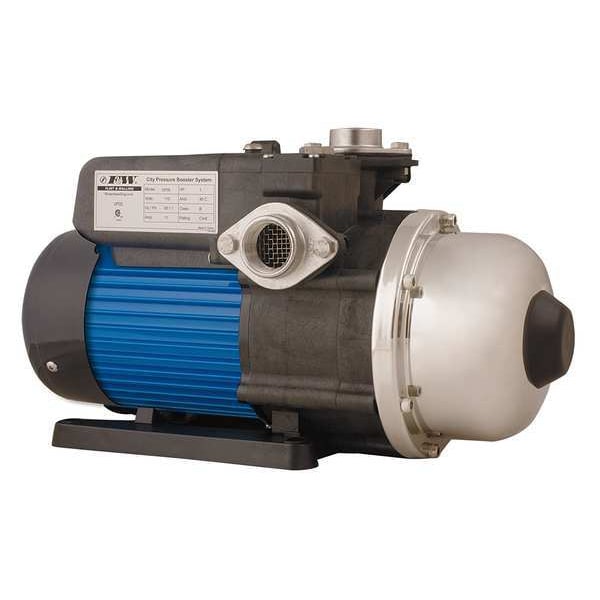

- Booster Pump
- Booster Pump Type
- Booster Pump System
- HP - Pumps
- 1/2 hp
- Voltage - Pumps
- 115V AC
- Phase - Pumps
- 1
- Number of Stages - Pumps
- 2
- Max. Pressure - Pumps
- 120 psi
- Housing Material - Pumps
- Stainless Steel
- Motor Enclosure - Pumps
- Totally Enclosed Fan-Cooled
- For Use With
- Home Water Pressure Boost
- Best Efficiency GPM @ PSI
- 3 @ 64
- Impeller Material
- Stainless Steel
- Motor Ambient Temp. Rating
- 40 Degrees C/104 Degrees F
- Phase
- Single
- Inlet
- 1"
- HP
- 1/2
- Amps
- 6 A
- Duty
- Continuous
- Max. PSI Boost @ 2-10 GPM
- 34
- Max. Case Pressure
- 120 psi
- Wetted Materials
- Stainless Steel, Thermoplastic
- Seal Material
- Ceramic
- Motor Type
- PSC
- Includes
- Instructions
- Agency Compliance
- CSA, cUS
- Impeller Type
- Closed
- Type
- Pressure
- Motor Enclosure
- Totally Enclosed Fan Cooled (TEFC)
- Stages
- 2
- Tank (Gal.)
- 0.1
- Outlet
- 1"
- Max. Pressure
- 120 psi
- Inlet (In.)
- 1
- Voltage
- 115
- Housing Material
- Stainless steel
- Motor RPM
- 3450
- Bearing Type
- Ball
- Hz
- 60
- Flow Rate @ 30 psi
- 9 gpm
- Flow Rate @ 80 psi
- 3 gpm
- Motor Ambient Temperature (Maximum)
- 104 Degrees F
- Flow Rate @ 10 psi
- 20 gpm
- Flow Rate @ 70 psi
- 3 gpm
- Wetted Material
- Stainless Steel, Thermoplastic
- Flow Rate @ 15 psi
- 17 gpm
- Horsepower
- 1/2 hp
- Minimum Flow Rate
- 1 gpm
- Pressure Boost (Maximum)
- 34 psi
- Shut Off Pressure (Maximum)
- 39 psi
- Priming
- Manual
- Mounting Orientation
- Horizontal
- Duty Cycle
- Continuous
- Intake Type
- NPT
- Number of Stages
- 2
- Best Efficiency Pressure
- 64 psi
- Flow Rate @ 20 psi
- 15 gpm
- Standards
- ANSI 372 255405, CSAus Certified, NSF Certified
- Frequency
- 60 Hz
- Thermal Overload Protection
- Yes
- Maximum RPM
- 3,450 RPM
- Case Pressure (Maximum)
- 120 psi
- For Use With Potable Systems
- Yes
- Compatible with Media Type
- Water
- Electrical Connection Type
- Plug-In
- Impeller Design
- Closed
- Pump Housing Material
- Stainless Steel
- Discharge Type
- NPT
- Maximum Flow Rate
- 25 gpm
- Nameplate Voltage
- 115V AC
- Flow Rate - Maximum
- 25 gpm
- For Media Type
- Clear Water
- Discharge Standard
- NPT
- Full Load Current
- 6 A
- Shut Off Pressure - Maximum
- 39 psi
- Inlet Standard
- NPT
- Pressure Boost - Maximum
- 34 psi
- Revolutions Per Minute - Maximum
- 3,450 RPM
- Power Source
- Corded Electric
- Installation
- Floor Standing
- Media Temperature - Maximum
- 104 Degrees F
- Motor Ambient Temperature - Minimum
- 32 Degrees F
- Best Efficiency Head
- 125 ft
- Thermal Protection
- Auto
- Best Efficiency Flow
- 9 gpm
- Series
- VP
- Motor Design
- Permanent Split Capacitor
- Pump Casing Material
- Stainless Steel
- Media Temperature - Minimum
- 34 Degrees F
- Case Pressure - Maximum
- 120 psi
- Motor Ambient Temperature - Maximum
- 104 Degrees F
- Inlet Gender
- Female
- Motor Enclosure Design
- Totally Enclosed Fan Cooled
- Discharge Gender
- Female
- Flow Rate - Minimum
- 1 gpm
- Application
- Boosting
- Pump Technology
- Centrifugal
- Feet of Head - Maximum
- 39 ft
- Power Source - TS Only
- Corded Electric
- Power Source - old
- Corded Electric
