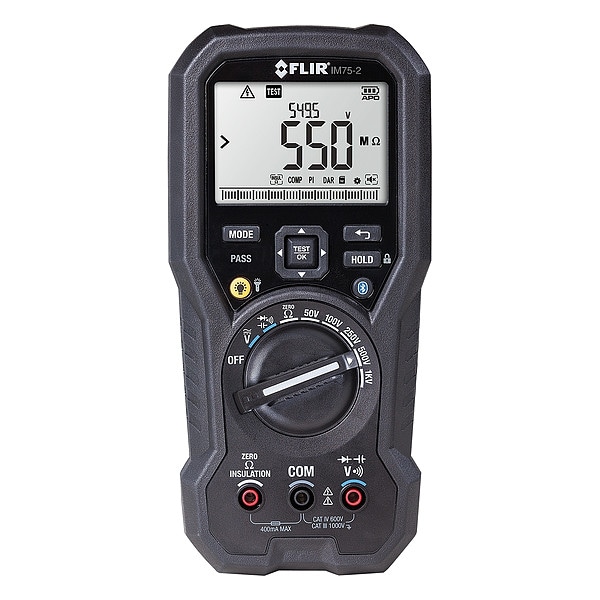

Flir Digital Multimeter, 3.7 in H, 8.1 in W IM75-2 - main

Digital Multimeter, 3.7 in H, 8.1 in W

  • Mfr # IM75-2

  • Zoro # G411208962

product price: $769.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
(6) AAA Batteries, Test Probes with Clips
Insulation Limit Alarm
Yes
Display Screen Type
LCD with Backlight
Backlit Digital Display
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IM75-2
Zoro #
G411208962
UPC #
793950372951
Country of Origin
Taiwan, Province of China

Dimensions

Battery Size
AAA
Manufacturer Warranty Length
Limited Lifetime
Tool Length
2 in
Tool Height
3.7 in
Tool Width
8.1 in

Details

Item
Digital Multimeter
Power Source
Battery
Includes
(6) AAA Batteries, Test Probes with Clips
Insulation Limit Alarm
Yes
Display Screen Type
LCD with Backlight
Backlit Digital Display
Yes
Test Voltage
1,000V DC, 100V DC, 250V DC, 500V DC, 50V DC
Minimum Operating Temperature
32 Degrees F
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Waterproof
No
Communication Protocol
Bluetooth
USB Data Download Included
No
Features
Multi-Color LED Indicator, Perform Measurement Comparisons Over Time, Wireless Communication
Includes Batteries
Yes
Maximum AC Voltage Measured
1,000 V
Standards
CE, FCC Class B, RCM, UKCA, UL
Data Logger
Yes
Greater Than 30V Warning
Yes
Calibration Certificate
None
Maximum Capacitance Measured
10 mF
Minimum Capacitance Measured
1,000 uF
Number of Records Stored
99
Auto Ranging
Yes
Battery Chemistry
Alkaline
Includes Software
No
Insulation Resistance Resolution
0.001 microohm to 100 megaohm
Number of Batteries Required
6
Parameters Measured
AC Voltage, Capacitance, DC Voltage, Insulation Resistance
Auto Power Off
Yes
Dustproof
Yes
Alert Type
Digital Display
Timed Ramp Voltage Test
Yes
Display Type
Digital
Maximum DC Voltage Measured
1,000 V
Testing Functions
Insulation Resistance
Live Circuit Voltage
2V AC/DC
Minimum Insulation Resistance
4 megaohm
Bluetooth Compatible
Yes
IP Rating
IP54
Input Impedance
10 megaohm
Maximum Insulation Resistance
20 gigohm
Capacitance Auto Discharge
Yes
PI/DAR Testing
Yes
Remote Test Probe Included
Yes
Resistance Accuracy
+/-1.5% + 5 Digits to 40.0 M Ohms, +/-10.0% + 3 Digits 4.1 G to 20.0 G Ohms, +/-3.0% + 5 Digits to 4000.0 M Ohms
Maximum Operating Temperature
122 Degrees F
Test Current
1 mA
Pass/Fail Selection Limits
Yes

Description

Digital Multimeter, Backlit Digital Display Yes, Bluetooth Compatible Yes, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate None, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof Yes, Greater Than 30V Warning Yes, Includes (6) AAA Batteries, Test Probes with Clips, Insulation Limit Alarm Yes, Maximum Insulation Resistance 20 gigohm, Minimum Insulation Resistance 4 megaohm, PI/DAR Testing Yes
