  9. Infrared Camera, 150 mK, -4 Degrees to 482 Degrees F, Auto Focus

This item is Discontinued.

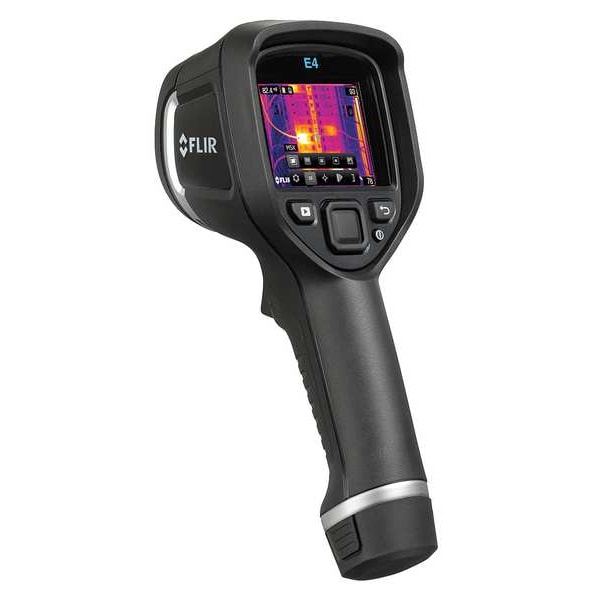

Flir Infrared Camera, 150 mK, -4 Degrees to 482 Degrees F, Auto Focus FLIR E4

Infrared Camera, 150 mK, -4 Degrees to 482 Degrees F, Auto Focus (Discontinued)

  • Mfr # FLIR E4
  • Zoro # G5281245
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLIR E4
Zoro #
G5281245
UPC #
845188004941
Country of Origin
Estonia

Dimensions

Manufacturers Warranty Length
10 yr IR Detector, 2 yr Camera, 5 yr Battery
Display Size
3 in
Manufacturer Warranty Length
2 yr

Details

Item
Infrared Camera
Item - Infrared Camera
Infrared Camera
IR Detector Resolution
80 x 60 Pixels
Temp. Range (F) - Infrared
-4 Degrees to 482 Degrees
Temp. Range (C) - Infrared
-20 Degrees to 250 Degrees
Temp. Accuracy (F) - Infrared
+/-2.0% or +/-3.6 Degrees Whichever is Greater
Thermal Resolution
4800 Pixels
Field of View
45 Degrees x 34 Degrees
Focus Method
Fixed
Spectral Response - Infrared
7.5 to 13um
Field of View - IR Camera
45.0 Degrees Horizontal x 34.0 Degrees Vertical
Focus Distance - Infrared
Minimum of 0.40 m
Thermal Sensitivity - IR Camera
150 mK
Detector Resolution - Infrared
80 x 60 Pixels
Display - IR Camera
3.0 in High Contrast Landscape Color LCD
Display Resolution - IR Camera
320 x 240 Pixels
Focus Range - Infrared
0.40m to Infinity
Frame Rate - IR Camera
9 Hz
Temp. Range (F)
-4 Degrees to 482 Degrees
Special Features
MSX Enhancement
Display Type
High Contrast Landscape LCD
Spectral Response
7.5 to 13um
Includes
EU, UK, US and Australian Plug Adapters, Hard Carrying Case, USB Cable
Temp. Accuracy
+/-2%
NIST Certified
No
Data Logging
Yes
Ambient Temp. Range
32 Degrees to 122 Degrees F
Ambient Temp. Range (F)
32 Degrees to 122 Degrees
Wireless
Yes
Temp. Accuracy (C) - Infrared
+/-2.0% or +/-2.0 Degrees Whichever is Greater
Display
3" Color LCD
Image Frequency
9 Hz
Emissivity
Adjustable 0.10 to 1.00
File Formats
JPEG
Thermal Sensitivity
150 mK
Data Logging - Instrument
Yes
Green Environmental Attribute
Product is Rechargeable
Visual Light Resolution
0.3 MP
Standards
C-Tick, CCC, CE, CSA, EN 61000-6-2, EN 61000-6-3, FCC 47 CFR Part 15 Class B, PSE, RoHS 2011/65/EC, UL Listed, WEEE 2012/19/EC
Display Resolution
320 x 240
Features
Data Logging, Multi Spectral Dynamic Imaging (MSX(R))
Minimum Focus Distance
0.5 m
Battery Run Time
4 hr
Temperature Alerts
High Temperature, Low Temperature
Alert Type
Digital Display
Minimum Operating Temperature Degrees F
5 Degrees F
Emissivity Adjustability
Adjustable
Maximum Temperature Measured Degrees F
482 Degrees F
Batteries Included
Yes
Minimum Emissivity Setting
0.10
Digital Display Screen Type
LCD
Battery Voltage
3V
Infrared Resolution
80 x 60
Lens Angles Included
45 Degrees
Maximum Temperature Measured Degrees C
250 Degrees C
Maximum Emissivity Setting
1.00
Frame Rate
9 Hz
Calibration Certificate Type
Available Separately
Accuracy Degrees C
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Minimum Temperature Measured Degrees F
-4 Degrees F
Data Transfer Type
Wired, Wireless
Number of Batteries Required
1
Interface
USB, Wireless
Intrinsic Safety
Not Specified Intrinsically Safe
Portability
Handheld
Auto Power Off
Yes
Minimum Temperature Measured Degrees C
-20 Degrees C
Maximum Operating Temperature Degrees F
122 Degrees F
Accuracy Degrees F
+/-2.0% of Reading or +/-3.6 Degrees F Whichever is Greater
Battery Chemistry
Lithium Ion
Series
FLIR Ex

Description

Infrared Camera, Temperature Alerts High Temperature, Low Temperature, Frame Rate 9 Hz, Visual Light Resolution 0.3 MP, Calibration Certificate Type Available Separately, Alert Type Digital Display, Data Transfer Type Wired, Wireless, Digital Display Screen Type LCD, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.10, Thermal Sensitivity 150 mK, Minimum Focus Distance 0.5 m, Minimum Operating Temperature Degrees F 5 Degrees F
