- MFR #
- FLIR T540-42
- Zoro #
- G6625740
- UPC #
- 845188014674
- Country of Origin
- Sweden
- Item

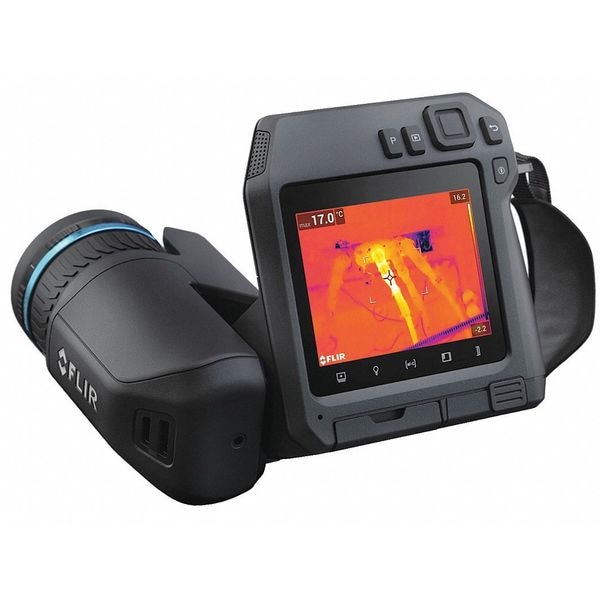

- Infrared Camera
- Temp. Range (F) - Infrared
- -4 Degrees to 1202 Degrees
- Emissivity
- Adjustable 0.10 to 1.00
- Temp. Accuracy (F) - Infrared
- +/-2.0% or +/-3.6 Degrees Whichever is Greater
- Temp. Accuracy (C) - Infrared
- +/-2.0 Degrees
- Laser Sighting
- Yes
- Data Logging - Instrument
- Yes
- Display - IR Camera
- 4.0 in Touch Screen Color LCD
- Focus Method
- Auto, Manual
- Special Features
- 180 Degrees Rotating Lens, 4 in LCD Display with 160 Degrees Viewing Angle, Automated GPS Tagging, Built-In Laser Distance Meter, Capacitive Touch Screen with Intuitive Menu, Interchangeable Auto Cal Lenses, Laser Assisted Autofocus, Ultra Max Super Resolution (In FLIR Tools)
- Picture In Picture
- Yes
- Ambient Temp. Range
- -15 Degrees to 50 Degrees C
- Charger Replacement
- 423N33
- Alarm
- yes
- File Formats
- H.264, MJPEG, MPEG4
- Thermal And Visible Light Blending
- Yes
- Item - Infrared Camera
- Infrared Camera
- Includes
Battery Charger, Cables (USB 2.0 A to USB Type-C), Front Lens Cap, Hard Carrying Case, Infrared Camera with Lens, Lanyards, License Card Flir Thermal Studio Pro (3 Month Subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 Month Subscription), Power Supply, USB Type-C to HDMI, USB Type-C to USB Type-C
- Frame Rate - IR Camera
- 30 Hz
- Ambient Temp. Range (F)
- 5 Degrees to 122 Degrees
- Green Environmental Attribute
- Product is Rechargeable
- Drop Tested
- Not Tested
- Standards
- CSA, EN, PSE 60950-1, UL Listed
- Image Notation
- Sketch
- Wireless
- Yes
- Thermal and Visible Light Blending
- Yes
- NIST Certified
- No
- Temp. Range (C) - Infrared
- -20 Degrees to 650 Degrees
- Detector Resolution - Infrared
- 464 x 348 Pixels
- Visual Light Resolution
- 5 MP
- Included Charger
- 423N33
- Multiple Lens Option
- Yes
- Display Resolution - IR Camera
- 640 x 480 Pixels
- Articulating Lens
- Yes
- Removable Memory Card
- SD
- Safety Rating
- EN/UL/CSA/PSE 60950-1
- Field of View - IR Camera
- 42.0 Degrees Horizontal x 32.0 Degrees Vertical
- Thermal Sensitivity - IR Camera
- 30 mK
- Spectral Response - Infrared
- 7.5 to 14.0um
- Focus Range - Infrared
- 0.15m to Infinity
- Display Resolution
- 640 x 480
- Thermal Sensitivity
- 30 mK
- Field of View
- 42 Degrees x 32 Degrees
- Focus Distance - Infrared
- Minimum of 0.15 m
- Features
- Data Logging, Image Notation, Image Sketching, Multi Spectral Dynamic Imaging (MSX(R))
- Minimum Operating Temperature Degrees F
- 5 Degrees F
- Calibration Certificate Type
- Available Separately
- Lens Angles Included
- 42 Degrees
- Data Transfer Type
- Wired, Wireless
- Accuracy Degrees C
- +/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
- Accuracy Degrees F
- +/-2.0% of Reading or +/-3.6 Degrees F Whichever is Greater
- Alert Type
- Digital Display, Sound
- Number of Batteries Required
- 2
- Digital Display Screen Type
- LCD Touchscreen
- Temperature Alerts
- High Temperature, Low Temperature, Normal Body Temperature
- Minimum Emissivity Setting
- 0.01
- Minimum Temperature Measured Degrees C
- -20 Degrees C
- Emissivity Adjustability
- Adjustable
- Maximum Temperature Measured Degrees F
- 2,732 Degrees F
- Minimum Focus Distance
- 0.15 m
- Maximum Operating Temperature Degrees F
- 122 Degrees F
- Maximum Temperature Measured Degrees C
- 1,000 Degrees C
- Frame Rate
- 30 Hz
- Maximum Emissivity Setting
- 1.00
- Battery Chemistry
- Lithium Ion
- Infrared Resolution
- 464 x 348
- Minimum Temperature Measured Degrees F
- -4 Degrees F
- Battery Voltage
- 3V
- Intrinsic Safety
- Not Specified Intrinsically Safe
- Batteries Included
- Yes
- Series
- T500
- Interface
- SD Card, USB, Wireless
- Battery Run Time
- 4 hr
