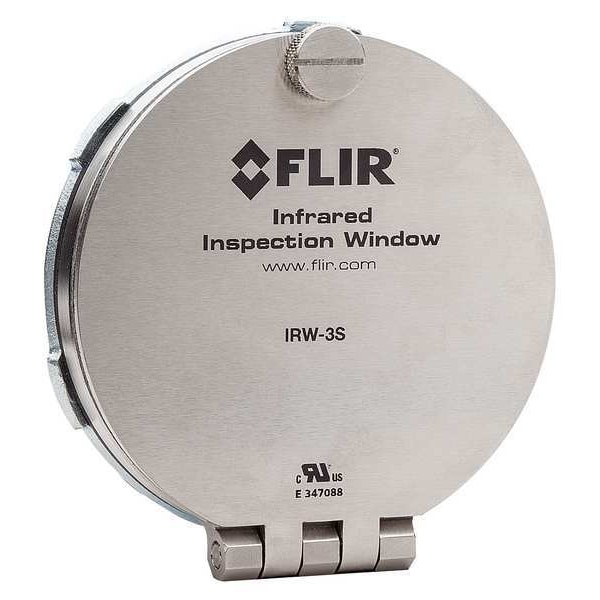

Infrared Window, 3739 sq. mm, IP67, SS
Mfr # IRW-3S
Zoro # G7531675
product price:Â
$
498.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Includes
Installation Instructions
Voltage Range
Any
Crystal Insert Size
75mm dia
Manufacturers Warranty Length
Limited Lifetime Warranty Against Manufacturer Defects
Body Material
Stainless steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- IRW-3S
- Zoro #
- G7531675
- UPC #
- 845188007591
- Country of Origin
- Estonia
- Item
- Infrared Window
- Includes
- Installation Instructions
- Voltage Range
- Any
- Body Material
- Stainless steel
- IP Rating
- IP68
- NEMA Rating
- 12, 4
- Use
- Indoor, Outdoor
- Special Features
- Hinged Cover Stays Attached, No Special Tool to Secure Cover, Window Labeling/ID# Inside The Cover, 3 Step Installation, No Screw Holes to Drill
- Body Maximum Temperature
- 500 Degrees F
- Viewing Aperture Area
- 5.79 sq in
- Gasket Maximum Temperature
- 170 Degrees F
- Optic Maximum Temperature
- 2,474 Degrees F
- Components
- Stainless Steel Frame and Cover
- Cover Material
- Stainless Steel
- Minimum Operating Temperature Degrees F
- -40 Degrees F
- Lens Material
- Crystal
- Frame Material
- Stainless Steel
- Maximum Operating Temperature Degrees F
- 500 Degrees F
- For Outdoor Use
- Yes
Description
Infrared Window, Maximum Operating Temperature Degrees F 500 Degrees F, Minimum Operating Temperature Degrees F -40 Degrees F, Optic Maximum Temperature 2,474 Degrees F, Viewing Aperture Area 5.79 sq in, Viewing Aperture Diameter 2.71 in, Viewing Aperture Height Not Applicable, Viewing Aperture Width Not Applicable, Window Thickness 0.07 in, Body Maximum Temperature 500 Degrees F, Includes Installation Instructions, IP Rating IP68, Gasket Maximum Temperature 170 Degrees F
