  9. IR Smart Phone Adapter, -4 Degrees to 752 Degrees F, 70 mK, 55 Degrees x 43 Degrees

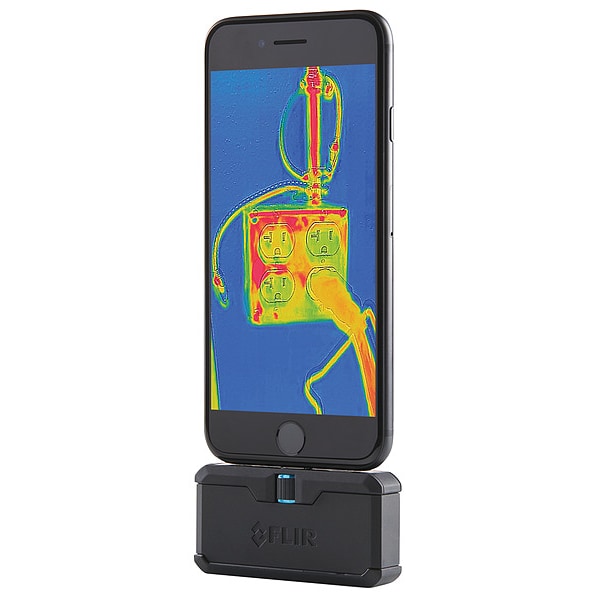

Flir IR Smart Phone Adapter, -4 Degrees to 752 Degrees F, 70 mK, 55 Degrees x 43 Degrees FLIR ONE PRO-iOS - main

IR Smart Phone Adapter, -4 Degrees to 752 Degrees F, 70 mK, 55 Degrees x 43 Degrees

  • Mfr # FLIR ONE PRO-iOS

  • Zoro # G1460781

product price: $509.99
/ea
Free Shipping & Returns

Key Features

Field of View
55 Degrees x 43 Degrees
Temp. Range (F) - Infrared
-4 Degrees to 752 Degrees
Thermal Sensitivity
70 mK
Focus Method
Fixed
Visual Light Resolution
1.5 MP
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLIR ONE PRO-iOS
Zoro #
G1460781
UPC #
812462024087
Country of Origin
Estonia

Dimensions

Depth
0.6 in
Height
1.3 in
Width
2.7 in
Manufacturers Warranty Length
1 yr
Overall Depth
5/8 in
Overall Height
2 3/4 in
Overall Width
1 3/8 in
Manufacturer Warranty Length
1 yr

Details

Item
IR Smart Phone Adapter
Field of View
55 Degrees x 43 Degrees
Temp. Range (F) - Infrared
-4 Degrees to 752 Degrees
Thermal Sensitivity
70 mK
Focus Method
Fixed
Visual Light Resolution
1.5 MP
File Formats
JPEG, MPEG4
Includes
Charging Cable, Protective Case
Standards
CE/FCC, CEC-BC, EN62133, RoHS
Spectral Response - Infrared
8 to 14um
Special Features
Capture and Share Thermal Images and Videos On Facebook, Twitter, Instagram and Other Social Media Channels Using the Flir One App, MSX Technology That Adds Visible Spectrum Detail to Create Enhanced Thermal Images Enhancing Image Resolution, OneFit Adjustable Connector, One-Touch Reporting, Enhanced FLIR One App
Thermal And Visible Light Blending
Yes
Emissivity
(4) Presets Matte 95%, Semi-Matte 80%, Semi-Glossy 60%, Glossy 30%
Adapter Weight
1.28 oz
Image Notation
No Notation
NIST Certified
No
Picture In Picture
Yes
Adapter Powered By
Internal Rechargeable Battery
Green Environmental Attribute
Product is Rechargeable
Ambient Temp. Range
0 Degrees to 35 Degrees C
Detector Resolution - Infrared
160 x 120 Pixels
Data Logging - Instrument
Yes
Field of View - IR Camera
55.0 Degrees Horizontal x 43.0 Degrees Vertical
Frame Rate - IR Camera
9 Hz
Drop Tested
6.0 ft
Temp. Range (C) - Infrared
-20 Degrees to 400 Degrees
Temp. Accuracy (F) - Infrared
+/-5 Degrees
Thermal and Visible Light Blending
Yes
Thermal Sensitivity - IR Camera
150 mK
Number of Color Palettes
8
Thermal Resolution
19,200 px
Item - IR Camera for Smart Phone
Infrared Smart Phone Adapter
Compatible Smart Phones
iOS Devices
Focus Range - Infrared
0.10m to Infinity
Focus Distance - Infrared
Minimum of 0.10m
Maximum Temperature Measured Degrees F
752 Degrees F
Minimum Focus Distance
15 cm
Maximum Emissivity Setting
0.95
Calibration Certificate Type
Not Certified
Series
FLIR ONE
Emissivity Adjustability
Adjustable
Accuracy Degrees C
+/-5.0% of Reading or +/-3.0 Degrees Whichever is Greater
Minimum Temperature Measured Degrees C
-20 Degrees C
Minimum Operating Temperature Degrees F
32 Degrees F
Maximum Operating Temperature Degrees F
95 Degrees F
Power Source
Internal Battery
Frame Rate
8.7 Hz
Minimum Temperature Measured Degrees F
-4 Degrees F
Maximum Temperature Measured Degrees C
400 Degrees C
Infrared Resolution
160 x 120
Weight
1.28 oz
Minimum Emissivity Setting
0.30
Compatible Operating System
iOS

Description

IR Smart Phone Adapter, Infrared Resolution 160 x 120, Field of View 55 Degrees x 43 Degrees , Frame Rate 8.7 Hz, Minimum Operating Temperature Degrees F 32 Degrees F, Maximum Operating Temperature Degrees F 95 Degrees F, Emissivity Adjustability Adjustable, Minimum Focus Distance 15 cm, Thermal Sensitivity 70 mK, Maximum Temperature Measured Degrees F 752 Degrees F, Minimum Temperature Measured Degrees F -4 Degrees F, Focus Method Fixed, Maximum Emissivity Setting 0.95
