  9. Electronic Flowmeter, 1", FNPT, 6.75" L
Shop All Flowmeters
Flomec

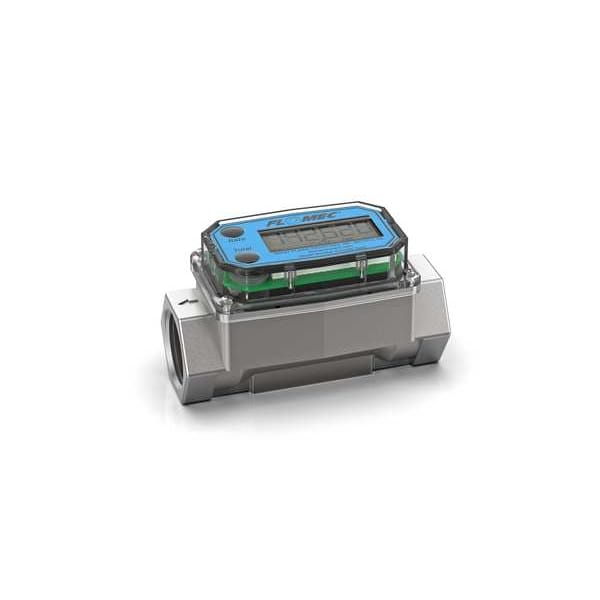

Electronic Flowmeter, 1", FNPT, 6.75" L

product price: $965.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material Stainless Steel
  • Type Turbine
  • For Pipe Size 1 in
  • Flow Material Chemicals, Corrosive Fluids, Fuels, Solvents, Water, Water-Like Liquids
  • Connection Size 1 in
See all product information

Product Information

  • Brand Flomec
  • MFR # G2S10NQ9GMA
  • Zoro # G000690093
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 1 in
Connection Size 1 in
Height (In.) 2 31/50 in
Width (In.) 2 in
Length (In.) 4 1/2 in
Overall Length 4.5 in
Manufacturer Warranty Length 1 yr
Overall Height 2.6 in
Overall Width 2 in

Details

Item Electronic Flowmeter
Housing Material Stainless Steel
Type Turbine
Flow Material Chemicals, Corrosive Fluids, Fuels, Solvents, Water, Water-Like Liquids
Connection Type FNPT
Max. Pressure 1,500 psi
Frequency Range (Hz) 47 to 470
Wetted Materials 316 Stainless Steel, Alumina Ceramic, PVDF, Stainless Steel, Tungsten Carbide
Max. Viscosity 20 cps
Flow Range 5 to 50 gpm
Fluid Temp. Range 14 Degrees to 140 Degrees F
Display Type Digital
Accuracy (%) +/- 1.0
Sensor Type Turbine
Rotor Type PVDF Turbine
Flow Range (GPM) 5 to 50
Flow Range (LPM) 19 to 190
Flow Range @ GPH 300 to 3000
Power Requirement 2-AAA Alkaline Batteries
Display Units gal
Output Type 4-20 mA
Standards ATEX, CE Certified, FM Approved, IECE
Shaft Material Tungsten Carbide
Frequency - Minimum 47 Hz
Unit Of Measure Gallons, Liters
Compatible Flow Material Chemicals, Fuels, Water
O-Ring Material 316 Stainless Steel
Media Temperature - Minimum 0 Degrees F
Flowmeter Type Electromagnetic
Product Type Industrial Grade Electronic Meter
Operating Pressure - Maximum 1,500 psi
Rotor Material PVDF
Wetted Material 316 Stainless Steel, Alumina Ceramic, PVDF, Tungsten Carbide
Includes Totalizer Yes
Media Temperature - Maximum 140 Degrees F
Flow Rate - Minimum 50 gpm
Accuracy +/-1%
Mounting Orientation Universal
Frequency - Maximum 470 Hz
Viscosity - Maximum 100 cps
Flow Rate - Maximum 75 gpm

Description

Electronic Flowmeter, Product Type Industrial Grade Electronic Meter, Flowmeter Type Electromagnetic, Accuracy +/-1 Percent, Connection Size 1 in, Connection Type FNPT, Compatible Flow Material Chemicals, Fuels, Water, Media Temperature - Maximum 140 Degrees F, Media Temperature - Minimum 0 Degrees F, Viscosity - Maximum 100 cps, Housing Material Stainless Steel, Rotor Material PVDF, O-Ring Material 316 Stainless Steel, Shaft Material Tungsten Carbide
