Shop FLOMEC

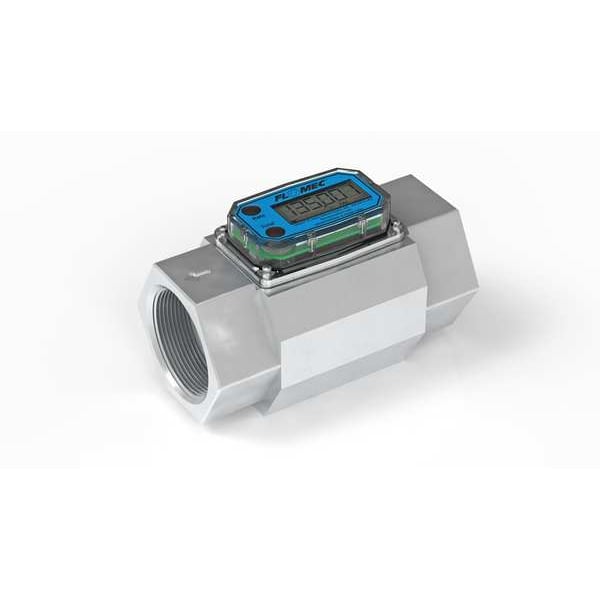

Electronic Flowmeter, 2", FNPT, 5.3" L

  • Mfr # G2A20NQ9GMB

  • Zoro # G400690075

product price:
$
1,239.00
/ea
Free Shipping & Returns

Key Features

Type
Turbine
Housing Material
Aluminum
For Pipe Size
2 in
Connection Size
2 in
Flow Material
Fuels, Solvents
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
G2A20NQ9GMB
Zoro #
G400690075
UPC #
-
Country of Origin
United States
Item
Electronic Flowmeter
Type
Turbine
Housing Material
Aluminum
Flow Material
Fuels, Solvents
Connection Type
FNPT
Max. Pressure
300 psi
Wetted Materials
316 Aluminum, Alumina Ceramic, PVDF, Stainless Steel, Tungsten Carbide
Frequency Range (Hz)
33 to 330
Max. Viscosity
20 cps
Flow Range
20 to 200 gpm
Fluid Temp. Range
14 Degrees to 140 Degrees F
Power Requirement
2-AAA Alkaline Batteries
Display Units
gal
Flow Range @ GPH
1200 to 12000
Display Type
Digital
Standards
ATEX, CE Certified, FM Approved, IECE
Sensor Type
Turbine
Flow Range (GPM)
20 to 200
Shaft Material
Tungsten Carbide
Accuracy (%)
+/-0.75
Rotor Type
PVDF Turbine
Output Type
4-20 mA
Flow Range (LPM)
76 to 760
Includes Totalizer
Yes
Mounting Orientation
Universal
Accuracy
+/-0.75% (With Computer), +/-1% (Body Only)
Product Type
Fuel Meter
Viscosity - Maximum
20 cps
Unit Of Measure
Gallons, Liters
Wetted Material
316 Stainless Steel, Alumina Ceramic, Aluminum, PVDF, Tungsten Carbide
Media Temperature - Minimum
-40 Degrees F
Frequency - Minimum
33 Hz
Operating Pressure - Maximum
300 psi
Flowmeter Type
Turbine
Compatible Flow Material
Diesel, Fuels, Petroleum Fluids
Rotor Material
PVDF
Frequency - Maximum
330 Hz
Flow Rate - Maximum
200 gpm
Flow Rate - Minimum
20 gpm
Media Temperature - Maximum
250 Degrees F

Description

Electronic Flowmeter, Product Type Electronic Meter, Flowmeter Type Turbine, Accuracy +/-0.75 Percent (With Computer), +/-1 Percent (Body Only), Connection Size 2 in, Connection Type FNPT, Compatible Flow Material Diesel, Fuels, Petroleum Fluids, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 20 cps, Housing Material Aluminum, Rotor Material PVDF, Shaft Material Tungsten Carbide
