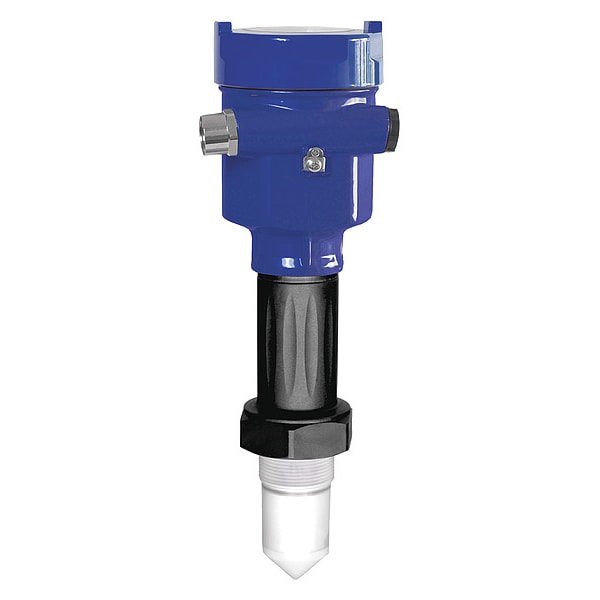

Noncontact Ultrasonic Level Sensor, 3.9"W
- Mfr # LR10-0010
- Zoro # G3012514
product price:Â
$
1,801.99
/ea
Free Shipping & Returns
Key Features
Connection Size
1 1/2 in
Connection Type
NPT
Input Voltage
16 to 26V DC
Accuracy
+/-5 mm
Gasket Material
Silicone
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LR10-0010
- Zoro #
- G3012514
- UPC #
- -
- Country of Origin
- China
- Item
- Noncontact Ultrasonic Level Sensor
- Connection Type
- NPT
- Input Voltage
- 16 to 26V DC
- Accuracy
- +/-5 mm
- Gasket Material
- Silicone
- Standards
- CE Certified, cTUVus, FCC, RoHS
- Output
- 4 to 20mA, 2-Wire
- Display Type
- LCD
- Mounting
- 1-1/2 in NPT
- Enclosure Rating
- IP67
- Output Wire Configuration
- 2-Wire
- Operating Pressure - Maximum
- 43.5 psi
- Range
- 393.6 in
- Dead Band
- 12 in
- Output Voltage Range
- 4 to 20mA
- Media Temperature - Minimum
- -40 Degrees F
- Voltage - Maximum
- 26V DC
- For Media Type
- Chemicals, Oil, Wastewater, Water
- Media Temperature - Maximum
- 266 Degrees F
- Spatial Resolution
- 0.019 in
- Enclosure Material
- Aluminum
- Operating Frequency
- 26 kHz
- Beam Angle
- 22 Degrees
Dimensions
- Connection Size
- 1 1/2 in
- Width
- 3.9 in
- Antenna Diameter
- 3 7/8 in
- Overall Diameter
- 3 7/8 in
- Overall Width
- 3.9 in
- Overall Height
- 12.7 in
Description
Noncontact Ultrasonic Level Sensor, For Media Type Chemicals, Oil, Wastewater, Water, Antenna Diameter 3 7/8 in, Range 393.6 in, Connection Size 1 1/2 in, Connection Type NPT, Accuracy +/-5 mm, Voltage - Maximum 26V DC, Dead Band 12 in, Beam Angle 22 Degrees , Operating Frequency 26 kHz, Spatial Resolution 0.019 in, Operating Pressure - Maximum 43.5 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 266 Degrees F, Output Wire Configuration 2-Wire
