Flowline

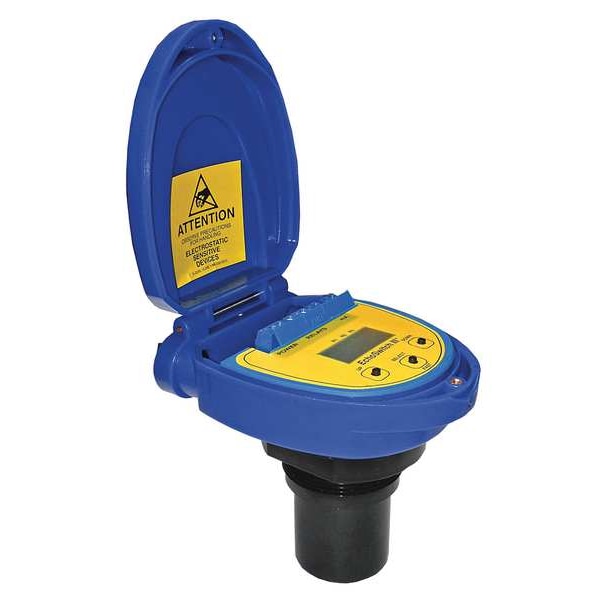

Ultrasonic Level Sensor, 26.2 Ft

product price: $1,051.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Height 5.5 in
  • Mounting 2 in NPT
  • Width 4.1 in
  • Overall Length 5.2 in
  • Material PVDF
See all product information

Product Information

Dimensions

Height 5.5 in
Width 4.1 in
Overall Length 5.2 in
Beam Width 3 in
Overall Height 5.5 in
Overall Width 4.1 in
Connection Size 2 in
Antenna Diameter 2 3/8 in
Overall Diameter 5 1/4 in

Details

Mounting 2 in NPT
Material PVDF
Item Noncontact Ultrasonic Level Sensor
Display 6-digit, LCD
Classification General Purpose
Max. Pressure 30 psi
Configuration Push Button
Gasket Material Viton
Input Voltage 95 to 250V AC
Range 314.4 in
Dead Band 8 in
Output (3) SPDT Relays
Enclosure Rating NEMA 4X
Enclosure Material Polycarbonate
Temp. Range -4 to 140 Degrees F
Standards CE Certified, RoHS
Connection Type NPT
Accuracy 0.25 in
Display Type LCD
Output Voltage Range 4 to 20mA
For Media Type Corrosive Liquid, Sticky/Dirty Liquid
Operating Frequency 50 kHz
Media Temperature - Minimum -7 Degrees F
Spatial Resolution 0.25 in
Voltage - Maximum 250V DC
Media Temperature - Maximum 140 Degrees F
Output Wire Configuration 4-Wire
Operating Pressure - Maximum 30 psi

Description

Noncontact Ultrasonic Level Sensor, For Media Type Corrosive Liquid, Sticky/Dirty Liquid, Antenna Diameter 2 3/8 in, Range 314.4 in, Connection Size 2 in, Connection Type NPT, Accuracy 0.25 in, Voltage - Maximum 250V DC, Dead Band 8 in, Operating Frequency 50 kHz, Spatial Resolution 0.25 in, Beam Width 3 in, Operating Pressure - Maximum 30 psi, Media Temperature - Minimum -7 Degrees F, Media Temperature - Maximum 140 Degrees F, Output Wire Configuration 4-Wire, Output Voltage Range 4 to 20mA
