Shop FLOWLINE

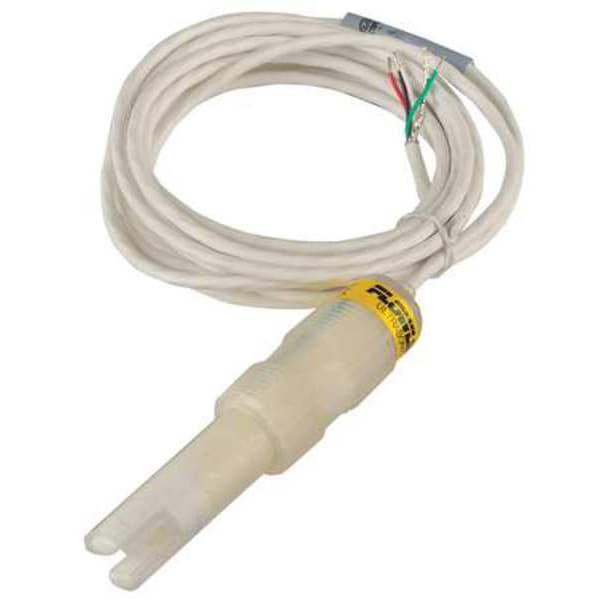

Ultrasonic Level Switch, Universal, PFA

  • Mfr # LU10-2405

  • Zoro # G4140841

product price:  $519.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
12-32V DC
Contact Rating
60 VA, 1A max
Mounting
3/4 in NPT
Cable Length
10 ft
Accuracy
+/-1 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LU10-2405
Zoro #
G4140841
UPC #
634746303721
Country of Origin
United States

Dimensions

Cable Length
10 ft
Height
1.05
Length
4.5
Width
1.05
Overall Length
4.5 in
Connection Size
3/4 in
Float Diameter
1.05 in
Float Length
4.5 in

Details

Input Voltage
12-32V DC
Contact Rating
60 VA, 1A max
Mounting
3/4 in NPT
Item
Level Switch
Accuracy
+/-1 mm
Output
4 or 20 mA or relay
Type
Point Level Sensor
Cable Type
4-conductor, PFA
Temp. Range
F: -40 Degrees to 176 Degrees C: -40 Degrees to 80 Degrees
Repeatability
+/-0.5mm in Water
Orientation
Universal
Contact Type
SPST Relay
Material
PFA
Max. Pressure
150 psi @ 25 Degrees C
Standards
CE
Sensor Rating
Intrinsically Safe
Probe Material
PFA
Body Material
PFA
Product Type
Liquid Level Switch
Operating Pressure - Maximum
150 psi
Number of Outputs - Analog
1
Mounting Orientation
Horizontal, Vertical
For Media Type
Corrosive Liquids
Float Material
PFA
Stem Material
PFA
Nameplate Voltage
12/36V DC
Output Voltage Range
4 to 20mA
Number of Outputs - Digital
1
Media Temperature - Maximum
176 Degrees F
Enclosure Rating
NEMA 6
Output Wire Configuration
4-Wire
Connection Type
NPT

Description

Level Switch, 3/4 in NPT Mounting, Max. Pressure 150 psi @ 25 Degrees C, Overall Length 4.5 in, Float Material PFA, Float Length 4.5 in, Stem Material PFA, Stem Length Not Applicable, Height 1.05, Width 1.05, Body Material PFA, Standards CE
