  9. Ultrasonic Level Transmitter, 18.0 Ft
Shop All Flow Rate Sensors
Flowline

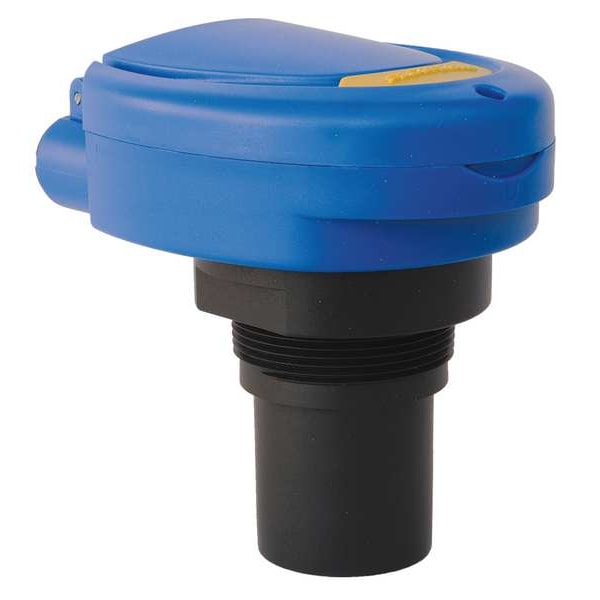

Ultrasonic Level Transmitter, 18.0 Ft

product price: $919.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting 2 in NPT
  • Height 5.5 in
  • Width 4.1 in
  • Overall Length 5.2 in
  • Material PVDF
See all product information

Product Information

Dimensions

Height 5.5 in
Width 4.1 in
Overall Length 5.2 in
Beam Width 3 in
Overall Height 5.5 in
Overall Width 4.1 in
Connection Size 2 in
Overall Diameter 5 1/4 in
Antenna Diameter 2 3/8 in

Details

Mounting 2 in NPT
Material PVDF
Item Noncontact Ultrasonic Level Sensor
Gasket Material Viton
Resolution 0.039 in
Configuration Push Button
Range 216 in
Enclosure Rating NEMA 4X
Standards CE Certified, RoHS
Dead Band 8 in
Enclosure Material Polycarbonate
Classification General Purpose
Accuracy +/-0.2% of Range
Temp. Range -4 to 140 Degrees F
Output 4 to 20mA, 2-wire
Input Voltage 14 to 28V DC
Max. Pressure 30 psi
Display 6-digit, LCD
Connection Type NPT
Voltage - Maximum 28V DC
Output Wire Configuration 2-Wire
For Media Type Corrosive Liquid, Sticky/Waste Liquid, Ultrapure Liquid
Output Voltage Range 4 to 20mA
Media Temperature - Maximum 140 Degrees F
Display Type LCD
Media Temperature - Minimum -7 Degrees F
Operating Frequency 50 kHz
Operating Pressure - Maximum 30 psi
Spatial Resolution 0.039 in

Description

Noncontact Ultrasonic Level Sensor, For Media Type Corrosive Liquid, Sticky/Waste Liquid, Ultrapure Liquid, Antenna Diameter 2 3/8 in, Range 216 in, Connection Size 2 in, Connection Type NPT, Accuracy +/-0.2 Percent of Range, Voltage - Maximum 28V DC, Dead Band 8 in, Operating Frequency 50 kHz, Spatial Resolution 0.039 in, Beam Width 3 in, Operating Pressure - Maximum 30 psi, Media Temperature - Minimum -7 Degrees F, Media Temperature - Maximum 140 Degrees F, Output Wire Configuration 2-Wire
