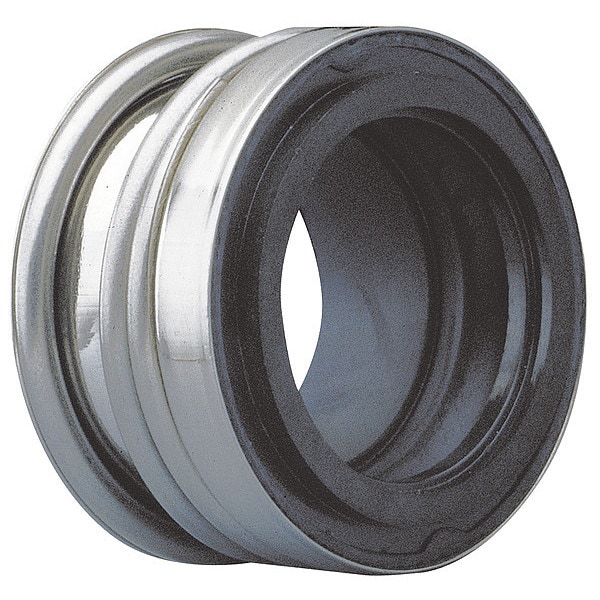

Seal, Pump Shaft, 5/8 In

  • Mfr # 16-062-03

  • Zoro # G1883786

product price:  $4.69
/ea

Key Features

Shaft Size (In.)
5/8 in
Nominal Working Length (In.)
0.718 in
Seat Bore
1.25 in
Seat Thickness
0.2125 in
Standard Industry Seal Number
200
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16-062-03
Zoro #
G1883786
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Size (In.)
5/8 in
Nominal Working Length (In.)
0.718 in
Seat Thickness
0.2125 in
For Shaft Diameter
5/8 in
Working Length
0.72 in
Seat Outside Diameter
1.25 in
Seal Head Outside Diameter
1.19 in
Seal Head Inside Diameter
0.625 in
Seal Head Thickness
0.082 in
Seat Inside Diameter
0.625 in

Details

Seat Bore
1.25 in
Standard Industry Seal Number
200
Item
Replacement Pump Shaft Seal
Min. Temp. (F)
-40 Degrees F
Max. Temp. (F)
225 Degrees F
Seal Type
16
Replacement For
5P405, 5P406
Material Content Code
BMFJF
Minimum Temperature
-40 Degrees F
Shaft Seal Type
Mechanical
Seal Type Designation
16
Maximum Temperature
205 Degrees F
Spring Type
Single Spring
Spring Material
Stainless Steel
Standards
ISO 9001, TS16949
Gasket Material
Buna-N
Compatible with Media Type
Water
Shut Off Pressure (Maximum)
150 psi
Product Type
Component Mechanical Seal
Seal Arrangement
Single
Chemical Compatibility
Water
Compatible with Pump Type
Centrifugal Pump, Straight Centrifugal Pump
Shut Off Pressure - Maximum
150 psi
Shaft Speed - Maximum
82 fps
Temperature (Minimum)
-40 Degrees F
Bellows Material
Buna-N
Temperature (Maximum)
205 Degrees F
Spring Configuration
Single Spring
Ring Material
Carbon/Graphite

Description

Unitized Rotary Replacement Pump Shaft Seal, For Shaft Diameter 5/8 in, Gasket Material Rubber, Compatible with Media Type Water, Replaces Grainger Seal 5P405, 5P406, Seal Type Designation 16, Shaft Seal Type Mechanical Shaft Seal, Shut Off Pressure (Maximum) 150 psi, Spring Material Stainless Steel, Spring Type Single Spring, Standards ISO 9001, TS16949, Maximum Temperature 205 Degrees F, Minimum Temperature -40 Degrees F, Working Length 0.72 in
