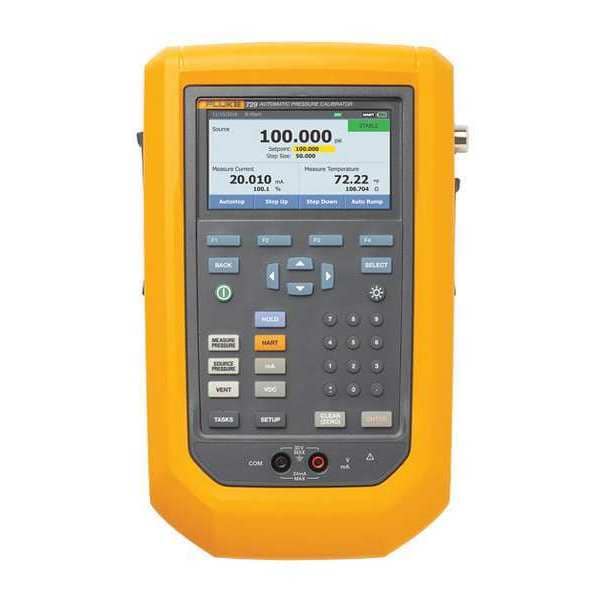

Fluke Automatic Pressure Calibrator, USB, LCD FLK-729 30GFC/WWG - main

Automatic Pressure Calibrator, USB, LCD

  • Mfr # FLK-729 30GFC/WWG

  • Zoro # G7718807

original price: $13,186.99
5% off
new price: $12,494.99
/ea
Free Shipping & Returns

Key Features

Includes
AC175 Alligator Clips, AC280 Sure Grip Hook Set, Stackable Test Leads, TP220 Test Probes (Red, Black), USB Cable
Display
Multiline LCD
Standards
IEC 60529, IEC 61010-1, Pollution Degree 2, IEC 61010-2-030: 30 V max, IEC 62133
Interface
USB
Loop Supply Voltage
24 V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLK-729 30GFC/WWG
Zoro #
G7718807
UPC #
095969840330
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Automatic Pressure Calibrator
Includes
AC175 Alligator Clips, AC280 Sure Grip Hook Set, Stackable Test Leads, TP220 Test Probes (Red, Black), USB Cable
Display
Multiline LCD
Standards
IEC 60529, IEC 61010-1, Pollution Degree 2, IEC 61010-2-030: 30 V max, IEC 62133
Interface
USB
Loop Supply Voltage
24 V DC
RTD Type
Pt100 (385)
Powered By
14.5 V Lithium Battery
Current Measurement Range
0 to 24mA DC
Displayed Pressure Units
atm, bar, cm wc, ft wc, g/sq cm, in Hg, in wc, kg/sq cm, kPa, m Hg, m wc, mbar, mm Hg, mm wc, mPa, Pa, psi
RTD Temperature Range
-50 Degrees to 150 Degrees C
Internally Generated Pressure Range
0 to 30 psi
Safety Rating
IEC 61010-1, Pollution Degree2, IEC 61010-2-030: 30
Pressure Source
Internal Electric Pump
Source Current
0 to 24mA DC
Internal Pressure Range Accuracy
+/-0.02% Full Scale
Pressure Modules
750P Series (50 Ranges)
Measurement Functions
mA DC, Pressure
Calibration Certificate
Traceable to International System of Units (SI)
Pressure Range with External Modules
-15 psi to 10,000 psi
Voltage Measurement Range
0 to 30V DC
Internal Pressure Measurement Range
0 to 30 psi
Pressure Measurement - Maximum
30 psi
Source Current - Minimum
0 mA
Digital Display Screen Type
LCD
Source Current - Maximum
24 mA
Calibration Certificate Type
Traceable with data
Current Measurement - Minimum
0 mA
IP Rating
IP54
Pressure Measurement - Minimum
-12 psi
Voltage Measurement - Minimum
0 V DC
Current Measurement - Maximum
24 mA
Parameters Measured
AC Current, DC Current, DC Voltage, Pressure, RTD
Parameters Sourced
AC Current, DC Current, DC Voltage, Pressure
Communication Protocol
HART
Voltage Measurement - Maximum
30 V DC
Pressure Measuring Units
psi
RTD Temperature - Maximum
302 Degrees F
RTD Temperature - Minimum
-50 Degrees F
Battery Chemistry
Lithium
Intrinsic Safety
Not Specified Intrinsically Safe
Pressure Measurement Accuracy
0.02% Full Scale
Includes Batteries
Batteries Included

Description

Automatic Pressure Calibrator, Internal Electric Pump Pressure Source, Measurement Functions mA DC, Pressure, Internal Pressure Measurement Range 0 to 30 psi, Internally Generated Pressure Range 0 to 30 psi, Pressure Range with External Modules -15 psi to 10,000 psi, Loop Supply Voltage 24 V DC, Current Measurement Range 0 to 24mA DC, Source Current 0 to 24mA DC, Voltage Measurement Range 0 to 30V DC, RTD Temperature Range -50 Degrees to 150 Degrees C, Display Multiline LCD

Restrictions

Hazardous material
