Fluke Battery Capacity Analyzer, LCD Display FLUKE-BT520ANG - main

Battery Capacity Analyzer, LCD Display

  • Mfr # FLUKE-BT520ANG

  • Zoro # G5846712

product price:  $7,789.99
/ea
Free Shipping & Returns

Key Features

Accuracy
0.09% + 5 (6 VDC); 0.09% + 5 (60 VDC); 0.09% + 5 (600 VDC); 0.5% + 8 (Frequency); 0.8% + 6 (300 milliohm); 0.8% + 6 (3000 milliohm); 0.8%+12 (30 milliohm); 1% +68 (3 milliohm); 2% + 10 (600 VAC); 3% + 10 (AC Voltage Ripple); 3% + 20 (AC Voltage Ripple)
Display
LCD

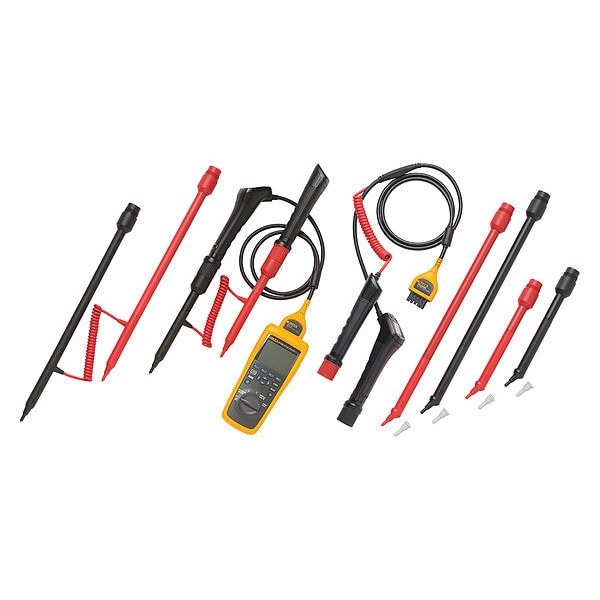

Includes
(2) Spare Fuses, 4-Wire Test Pin Set, Battery Tags, BC500 AC Charger, Belt Strap, BTL10 Basic Test Lead (Set), BTL20 Intelligent Test Probe Set with Extender (no Temperature Sensor), Carrying Case, Magnetic Hanging Strap, Mini-USB Cable, Shoulder Strap, TL175 Twistguard Test Leads with Adapter, Zero Ohm Calibration Resistor
Works With
Batteries From 600 to 1000V
Manufacturers Warranty Length
3 yr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-BT520ANG
Zoro #
G5846712
UPC #
-
Country of Origin
China

Dimensions

Manufacturers Warranty Length
3 yr

Details

Accuracy
0.09% + 5 (6 VDC); 0.09% + 5 (60 VDC); 0.09% + 5 (600 VDC); 0.5% + 8 (Frequency); 0.8% + 6 (300 milliohm); 0.8% + 6 (3000 milliohm); 0.8%+12 (30 milliohm); 1% +68 (3 milliohm); 2% + 10 (600 VAC); 3% + 10 (AC Voltage Ripple); 3% + 20 (AC Voltage Ripple)
Display
LCD
Item
Battery Capacity Analyzer
Includes
(2) Spare Fuses, 4-Wire Test Pin Set, Battery Tags, BC500 AC Charger, Belt Strap, BTL10 Basic Test Lead (Set), BTL20 Intelligent Test Probe Set with Extender (no Temperature Sensor), Carrying Case, Magnetic Hanging Strap, Mini-USB Cable, Shoulder Strap, TL175 Twistguard Test Leads with Adapter, Zero Ohm Calibration Resistor
Works With
Batteries From 600 to 1000V
Includes Tester Batteries
Batteries Included
Tester Battery Chemistry
Lithium Ion
Digital Display Screen Type
LCD
Testing Functions
AC Current, AC Voltage, Battery Discharge, DC Current, DC Voltage, Frequency, Resistance, Ripple Voltage
Calibration Certificate Type
Not Certified
Input Voltage - Minimum
6 V
Input Voltage - Maximum
600 V
Batteries Tested
Lithium-Ion
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance
Tester Number of Batteries Required
1
Calibration Certificate Included
No Certification Included
Tester Battery Voltage
7.4V

Description

Battery Capacity Analyzer
