Shop FLUKE

Cable Tester Kit, 2625 ft Max cable L

  • Mfr # DSX2-8000OI/GLD

  • Zoro # G021909013

product price:
$
41,044.99
/ea
Free Shipping & Returns

Key Features

Maximum DC Voltage Measured
60 V DC
Connector Type
GG45, LC, RJ45, TERA
Maximum Resistance Measured
100 ohm
Battery Chemistry
Lithium Ion
Calibration Certificate
Traceable Included; NIST Available Separately
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DSX2-8000OI/GLD
Zoro #
G021909013
UPC #
195112144756
Country of Origin
Lithuania

Dimensions

Maximum Cable Length
2,625 ft
Display Size
5.7 in
Minimum Cable Length
3.2 ft

Details

Maximum DC Voltage Measured
60 V DC
Connector Type
GG45, LC, RJ45, TERA
Maximum Resistance Measured
100 ohm
Battery Chemistry
Lithium Ion
Calibration Certificate
Traceable Included; NIST Available Separately
Product Type
Cable Tester Kit
Display Screen Type
LCD Touchscreen
Display Type
Digital
Port Number Display
Yes
Wire Mapping Detections
Crossed Pairs, Opens, Reversed Pairs, Shorts, Split Pairs
Maximum Impedance Measured
100 ohm
Fault Location Pulse Duration
30 nsec
Minimum Operating Temperature
-0.4 Degrees F
Backlit Digital Display
Yes
Testing Functions
Cable Certification, Cable Length Display, PoE/PoE+ Detection, Wire Mapping
Waterproof
No
Item
Cable Tester Kit
Includes

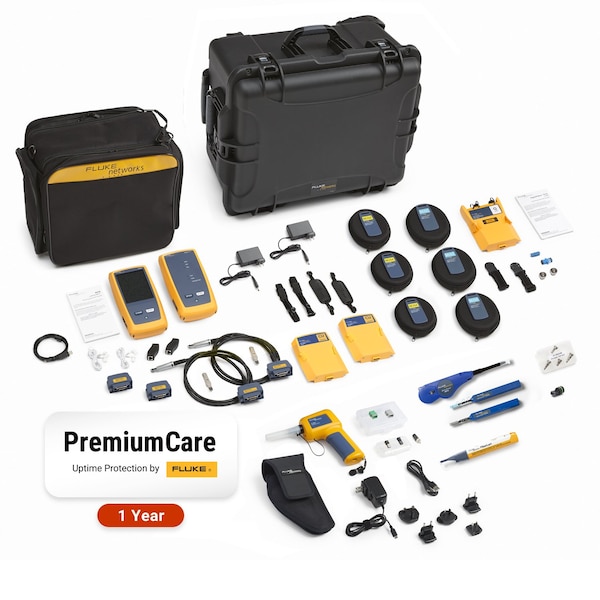

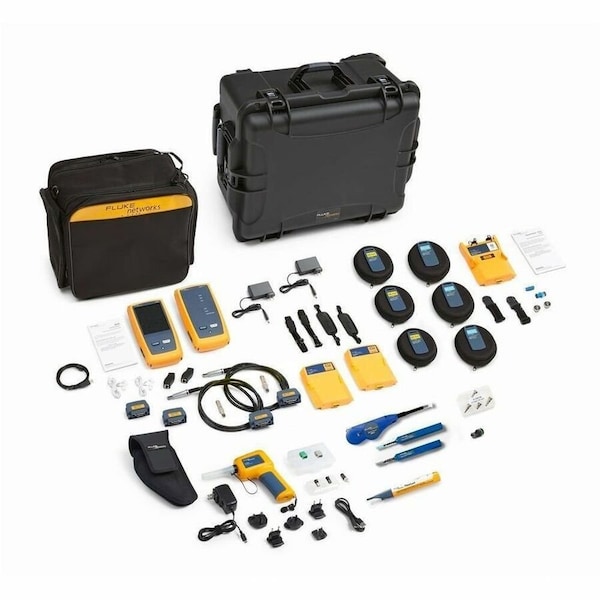

(2) Axtalk Terminators, (2) Channel Adapters, (2) Cu Modules, (2) Fiber Adapters, (2) Hand Straps, (2) Hang Straps, (2) Headsets, (2) Magnets, (2) MTP Couplers, (2) PLA Cables, (2) RJ45 Couplers, (2) Small Plastic Divided Boxes, (2) Versiv Power Supplies, (3) Fiber Click Cleaners, (4) Fiber Couplers (2 Types), (6) Launch Fibers, Cube Case, FI-3000 Camera, FI-3000 Camera Power Supply with Adapters, Fiberlert, Holster, Large Hard Case, OFP QUAD Module, Soft Case, Tip Kit with Plastic Case, USB-C Cable, USB-Micro Cable, Versiv Main, Versiv Remote, Wrist Strap
For Use With
Copper LAN Cables (CAT3 to CAT8), Single-Mode and Multimode Fiber
Data Logger
Yes
Maximum Speed Measured
100 GBps
Compatible Cable Type
CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, CAT7, CAT8, LAN, Multi-Conductor
Communication Protocol
Ethernet, USB, Wi-Fi
Maximum Operating Temperature
113 Degrees F
Alert Type
Digital Display, Sound
Digital Memory Capacity
12,000 Results
Includes Software
Yes
Adapters Included
CAT8 Channel Adapters, CAT8 Permanent Link, Fiber, MPO Couplers
Maximum Operating Humidity
90 %
Auto Power Off
Yes
Number of Results Stored
12,000

Description

Cable Tester Kit, CAT Safety Rating Not Applicable, Testing Functions Cable Certification, Cable Length Display, PoE/PoE+ Detection, Wire Mapping, Adapters Included CAT8 Channel Adapters, CAT8 Permanent Link, Fiber, MPO Couplers, Connector Type GG45, LC, RJ45, TERA, Maximum Speed Measured 100 GBps, Data Safe Monitor Not Applicable, Display Screen Type LCD Touchscreen, For Use With Copper LAN Cables (CAT3 to CAT8), Single-Mode and Multimode Fiber
