  9. Digital Clamp Meter, Backlit LCD, 600 A, 1.2 in (30 mm) Jaw Capacity

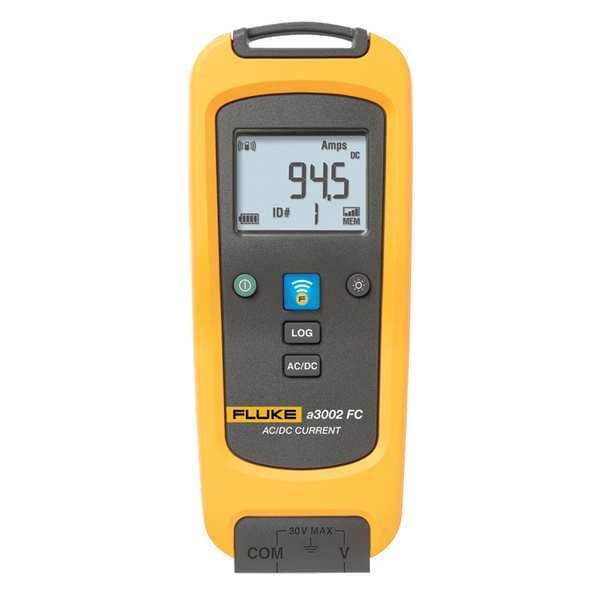

Fluke Digital Clamp Meter, Backlit LCD, 600 A, 1.2 in (30 mm) Jaw Capacity FLK-A3002FC - main

Digital Clamp Meter, Backlit LCD, 600 A, 1.2 in (30 mm) Jaw Capacity

  • Mfr # FLK-A3002FC

  • Zoro # G7609734

product price: $182.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Jaw Capacity
1.2 in (30 mm)
Safety Rating
CAT III 1000V, CAT IV 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLK-A3002FC
Zoro #
G7609734
UPC #
095969756990
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr
Overall Height
6.3 in
Overall Width
2.6 in
Battery Size
AA

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Jaw Capacity
1.2 in (30 mm)
Safety Rating
CAT III 1000V, CAT IV 600V
Display
Backlit LCD
Jaw Opening
1.2 in
Max. DC Amps
1,000
Calibration Frequency
1 yr
Auto Power Off
Yes
Battery Type
AA
Counts
6,000
Auto Ranging
Yes
Special Features
Wireless
AC Current Accuracy
+/-1% + 3 Digits (AC), +/-0.5% + 3 Digits (DC)
Bar Graph
No
Includes
3 1/2 in Display, Banana Jack Connectors, For use with Fluke-i410 (4KF12) or Fluke-i1010 (4KF11) Current Clamps, Magnetic Strap, Quick Start Guide Only
Standards
CE, CSA, FCC: T68-FBLE IC: 6627A-FBLE
AC Response
45 Hz to 1 kHz
Operating Temp.
50 Degrees to 122 Degrees F
Thermometer Type
Type K Thermocouple
Data Logging
Yes
Data Hold
Yes
Audible Continuity
No
Diode Test
No
Memory
65,000 Readings
Time of Day Clock
Yes
Battery Chemistry
Alkaline
Maximum Storage Temperature
140 Degrees F
AC Response Calculation
TRMS
Software Included
Yes
Elapse Time Clock
Yes
DC Current Measurement Resolution
0.1 A
Thermal Imaging
No
Bluetooth Compatible
Yes
Bar Graph Included
No
AC Current Measurement Resolution
0.1 A
Current Leakage Testing
No
Min-Max-Avg Button Included
Yes
Basic DC Current Accuracy
0.5% + 3
Maximum DC Current Measurement
1,000 A
Display Type
Backlit LCD
Calibration Certificate Included
No
Waterproof
No
Intrinsically Safe
No
Battery Voltage
1.5V
IP Rating
IP42
Batteries Included
Yes
Removable Screen
No
Minimum Storage Temperature
-40 Degrees F
Parameters Measured
AC Current, DC Current, Temperature (K)
Minimum Operating Temperature
14 Degrees F
Instrument Counts
6,000
Dustproof
No
Maximum AC Current Measurement
600 A
Maximum Operating Temperature
122 Degrees F
Jaw Style
Clamp-Jaw
Battery Access
Yes
Multiple On-Screen Displays
Yes
Basic AC Current Accuracy
1.0% + 3

Description

Digital Clamp Meter, Audible Continuity No, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement Not Applicable, Current Leakage Testing No, IP Rating IP42, Parameters Measured AC Current, DC Current, Temperature (K), Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No, Bluetooth Compatible Yes
