  9. Digital Clamp Meter, Dual Backlit, 99.9 mA A, 0.2 in (5 mm) Jaw Capacity

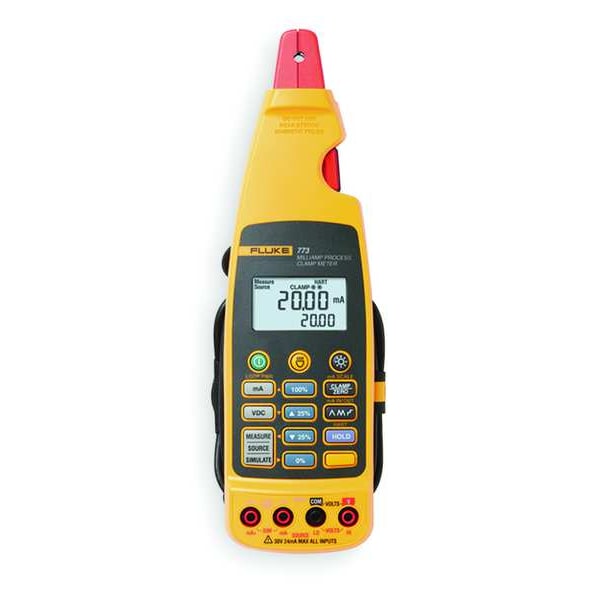

Fluke Digital Clamp Meter, Dual Backlit, 99.9 mA A, 0.2 in (5 mm) Jaw Capacity FLUKE-773 - main

Digital Clamp Meter, Dual Backlit, 99.9 mA A, 0.2 in (5 mm) Jaw Capacity

  • Mfr # FLUKE-773

  • Zoro # G2671733

product price: $1,899.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
99.9 mA
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
30 V
Jaw Capacity
0.2 in (5 mm)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-773
Zoro #
G2671733
UPC #
095969475822
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr for Clamp and Cable,, 3 yr for Electronics
Overall Height
11.6 in
Battery Size
AA
Overall Width
5.8 in

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
99.9 mA
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
30 V
Jaw Capacity
0.2 in (5 mm)
Temp. Range
14 Degrees to 122 Degrees F
Display
Dual Backlit
Jaw Opening
0.2 in
Max. DC Amps
99.9 mA
Max. AC Volts
30 V
Auto Ranging
Yes
AC Current Accuracy
+/-2.0% + 5 Digits
Battery Type
AA
Operating Temp.
14 Degrees to 122 Degrees F
Data Hold
Yes
AC Response
TRMS
Includes
Detachable Clip, Hanging Tool with Hook, Instruction Manual, Loop Strap, Mini Hook Test Leads, Test Leads
Special Features
Non-Contact DC mA
Counts
2,400, 99.9
Standards
CE, CSA, EN61326-1
Data Logging
Yes
Thermometer Type
Type K Thermocouple
Non-Contact Voltage Detector
Yes
Audible Continuity
No
Calibration Certificate Included
No
Battery Access
Yes
Batteries Included
Yes
Maximum DC Voltage Measurement
30 V
Basic DC Current Accuracy
0.2 % + 5 counts (0 to 24.00 mA)1 % + 5 counts (21.0 mA to 100.0 mA)
Maximum AC Current Measurement
100 mA
Waterproof
No
Removable Screen
No
Parameters Measured
AC Current, DC Current, DC Voltage, Temperature (K)
Thermal Imaging
No
Current Leakage Testing
No
Display Type
Dual Backlit
Instrument Counts
2,400
Dustproof
No
Battery Chemistry
Alkaline
Maximum DC Current Measurement
100 mA
IP Rating
IP40
Jaw Style
Clamp-Jaw
Intrinsically Safe
No
AC Response Calculation
TRMS
Minimum Operating Temperature
14 Degrees F
Basic AC Current Accuracy
0.2 % + 5 counts (0 to 24.00 mA)1 % + 5 counts (21.0 mA to 100.0 mA)
Bluetooth Compatible
No
DC Voltage Measurement Resolution
0 V
Maximum Storage Temperature
140 Degrees F
Basic DC Voltage Accuracy
0.2 % + 2 counts
Maximum Operating Temperature
122 Degrees F

Description

Digital Clamp Meter, Audible Continuity No, Safety Rating Not Applicable, AC Response Calculation TRMS, Maximum AC Current Measurement 100 mA, Maximum DC Current Measurement 100 mA, Maximum DC Voltage Measurement 30 V, Current Leakage Testing No, IP Rating IP40, Parameters Measured AC Current, DC Current, DC Voltage, Temperature (K), Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No, Jaw Opening 0.2 in
