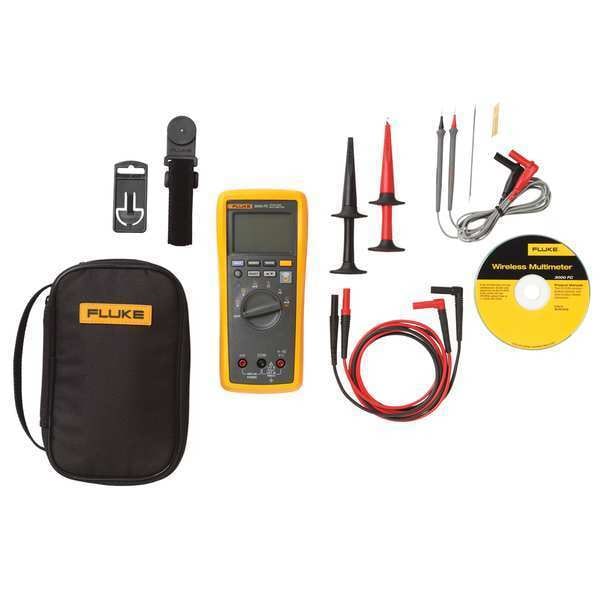

Fluke Digital Multimeter, 1,000 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, LCD 3000FC/EDA2/WWG - main

Digital Multimeter, 1,000 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, LCD

  • Mfr # 3000FC/EDA2/WWG

  • Zoro # G1999676

product price:  $517.99
/ea
Free Shipping & Returns

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
(1 Pair) AC175 Alligator Clips, (1 Pair) TL175 Test Leads, Quick Reference Guide
Standards
CSA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3000FC/EDA2/WWG
Zoro #
G1999676
UPC #
095969807999
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr
Overall Height
1.9 in
Battery Size
AA
Depth
8.1 in
Overall Width
3.7 in

Details

Item
Digital Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
(1 Pair) AC175 Alligator Clips, (1 Pair) TL175 Test Leads, Quick Reference Guide
Standards
CSA
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Max. AC Amps
400 mA
Max. Ohms
50 megohm
Series
FLUKE (R) Fluke-3000FC/EDA2
Basic DC Accuracy
+/-0.09% of Reading +2 Digits
Interface
Wireless
AC Response
45 Hz to 1 kHz
Capacitance Range
2 nF to 9999 uF
Duty Cycle
No
Instrument Safety Rating
CAT IV 600V
Display
LCD
Instrument Frequency Counter Range
0.01 Hz to 100 kHz
Peak Hold
No
Max. DC Amps
400 mA
Multimeter Style
Full Size - General Features
Auto Ranging
Yes
Calibration Certificate Included
No
Intrinsically Safe
No
Current Leakage Testing
No
Maximum DC Voltage Measurement
1,000 V
AC Response Calculation
TRMS
Basic DC Current Accuracy
0.5% + 3
Basic AC Current Accuracy
1.5% + 3
Maximum Storage Temperature
140 Degrees F
Frequency Measurement Accuracy
0.1% + 1
Minimum Frequency Measurement
0.01 Hz
Maximum Operating Temperature
122 Degrees F
Maximum DC Current Measurement
400 mA
Waterproof
No
Maximum AC Current Measurement
400 mA
Maximum Frequency Measurement
100 kHz
Weight
12 oz
Thermal Imaging
No
Frequency Measurement Resolution
0.01 Hz
Computer Interface Connection Type
Wireless
Maximum AC Voltage Measurement
1,000 V
IP Rating
IP54
Minimum AC Current Measurement
0 A
Capacitance Measurement Resolution
2 nF
Capacitance Measurement Accuracy
1.50 %
Dustproof
No
Basic AC Voltage Accuracy
45 Hz to 500 Hz:1.0% + 3500 Hz to 1 kHz:2.0% + 3
Minimum Operating Temperature
-40 Degrees F
Battery Chemistry
Alkaline
Minimum Capacitance Measurement
2 nF
Software Included
No
Minimum AC Voltage Measurement
0 V
Maximum Resistance Measurement
50 megaohm
Resistance Measurement Accuracy
+/-1.5%
Parameters Measured
AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
Battery Access
Yes
Minimum DC Current Measurement
0 A
Bluetooth Compatible
Yes
Basic DC Voltage Accuracy
+/-0.09% + 2 Digits
Maximum Capacitance Measurement
9,999 uF
Minimum DC Voltage Measurement
0 V
Minimum Storage Temperature
-40 Degrees F
Batteries Included
Yes
Bar Graph Included
No
Minimum/Maximum Memory
Yes
Removable Screen
No

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy 45 Hz to 500 Hz:1.0 Percent + 3500 Hz to 1 kHz:2.0 Percent + 3, Basic DC Voltage Accuracy +/-0.09 Percent + 2 Digits, Data Hold Yes, Basic DC Current Accuracy 0.5 Percent + 3, Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000, Special Features Wireless, Maximum AC Current Measurement 400 mA
