  9. Digital Multimeter, 600 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, Backlit LCD

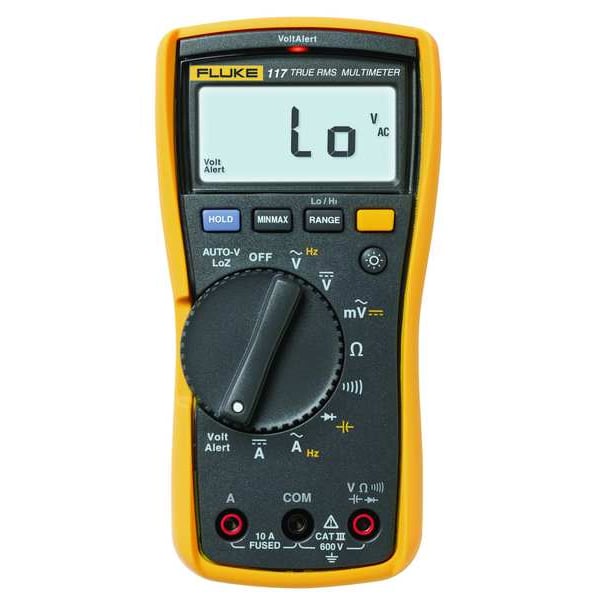

Fluke Digital Multimeter, 600 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, Backlit LCD FLUKE-117-NIST-D - main

Digital Multimeter, 600 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, Backlit LCD

  • Mfr # FLUKE-117-NIST-D

  • Zoro # G8041573

product price: $432.99
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
(1 Pair) 4 mm Silicone Test Lead Set, Holster, Quick Reference Guide
Auto Power Off
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-117-NIST-D
Zoro #
G8041573
UPC #
095969476515
Country of Origin
Malaysia

Dimensions

Manufacturers Warranty Length
3 yr
Overall Width
3.4 in
Overall Height
6.6 in
Depth
1.8 in
Battery Size
9V
Pulse Width
No

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
(1 Pair) 4 mm Silicone Test Lead Set, Holster, Quick Reference Guide
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Max. DC Amps
10
Max. Ohms
40 megohm
Auto Ranging
Yes
Display
Backlit LCD
Instrument Safety Rating
CAT III 600V
Temp. Range
14 Degrees to 122 Degrees F
NIST Certification By
Fluke
Basic DC Accuracy
+/-0.50% of Reading +2 Digits
Series
FLUKE (R) Fluke-117
Instrument Frequency Counter Range
0.01 Hz to 50 kHz
Calibration Certificate Included
Yes
Multimeter Style
Compact - Basic Features
AC Response
TRMS
Capacitance Range
1 nF to 9999 uF
Max. AC Amps
10
Duty Cycle
No
Peak Hold
No
Intrinsically Safe
No
Maximum Frequency Measurement
50 kHz
Maximum DC Voltage Measurement
600 V
Waterproof
No
Minimum Storage Temperature
-40 Degrees F
Basic DC Voltage Accuracy
+/-0.50% + 2 Digits
Maximum Storage Temperature
140 Degrees F
Basic DC Current Accuracy
1.0% + 3
Batteries Included
Yes
Software Included
No
Minimum Capacitance Measurement
1 nF
Battery Chemistry
Alkaline
Maximum Capacitance Measurement
9,999 uF
Maximum AC Voltage Measurement
600 V
Minimum Operating Temperature
14 Degrees F
Minimum DC Current Measurement
0 A
Frequency Measurement Accuracy
0.1% + 2
Minimum AC Voltage Measurement
0 V
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Low Input Impedance, Resistance
Maximum DC Current Measurement
10 A
Maximum Temperature Measurement
122 Degrees F
Bar Graph Included
Yes
Minimum Frequency Measurement
0.01 Hz
Dustproof
No
Removable Screen
No
Fuse Access
Yes
NIST Certification By Manufacturer
Fluke
Maximum Operating Temperature
122 Degrees F
Frequency Measurement Resolution
0.01 Hz
Minimum Resistance Measurement
0.1 ohm
Basic AC Voltage Accuracy
1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)
Battery Access
Yes
Maximum Resistance Measurement
40 megaohm
Capacitance Measurement Resolution
1 nF
Maximum AC Current Measurement
10 A
Min-Max-Avg Button Included
Yes
Capacitance Measurement Accuracy
1.9% + 2
Minimum Temperature Measurement
14 Degrees F
Battery Voltage
9V
Thermal Imaging
No
Minimum/Maximum Memory
Yes
Minimum DC Voltage Measurement
0 V
Bluetooth Compatible
No
Weight
550 g
Basic AC Current Accuracy
1.5% + 3
Resistance Measurement Accuracy
+/-5%
IP Rating
IP42
AC Response Calculation
TRMS
Current Leakage Testing
No
Minimum AC Current Measurement
0 A

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy 1.0 Percent + 3 (DC, 45 Hz to 500 Hz)2.0 Percent + 3 (500 Hz to 1 kHz), Basic DC Voltage Accuracy +/-0.50 Percent + 2 Digits, Data Hold Yes, Basic DC Current Accuracy 1.0 Percent + 3, Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 6,000, Special Features Non-Contact Voltage Detection, Maximum AC Current Measurement 10 A
