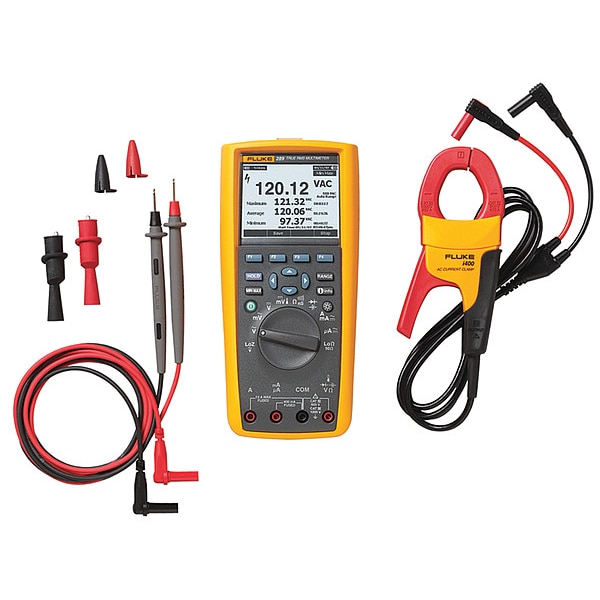

Fluke DigitalMultimeter, TRMS, 400A, 1000VAC/DC FLUKE-289/IMSK - main

DigitalMultimeter, TRMS, 400A, 1000VAC/DC

  • Mfr # FLUKE-289/IMSK

  • Zoro # G503614718

product price: $1,042.99
/ea
Free Shipping & Returns

Key Features

Basic DC Accuracy
0.025% +2 Digits
Special Features
Low Pass Filter for Accurate Voltage and Frequency Measurements, Zoom on Trend Provides Unprecedented Ability to View and Analyze Trend, Capture Data
Max. Ohms
500 megohm
Calibration Certificate Included
No
Duty Cycle
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-289/IMSK
Zoro #
G503614718
UPC #
095969493901
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Overall Height
8.8 in
Pulse Width
Yes
Depth
2.4 in
Overall Width
4 in
True RMS Bandwidth
100 kHz
Battery Size
AA

Details

Item
Digital Multimeter
Basic DC Accuracy
0.025% +2 Digits
Special Features
Low Pass Filter for Accurate Voltage and Frequency Measurements, Zoom on Trend Provides Unprecedented Ability to View and Analyze Trend, Capture Data
Max. Ohms
500 megohm
Calibration Certificate Included
No
Duty Cycle
Yes
Data Hold
Yes
Instrument Frequency Counter Range
99.99 Hz to 999.99 kHz
Battery Type
AA Alkaline
Display
LCD
Max. DC Volts
1,000
Auto Power Off
Yes
Series
FLUKE(R) Fluke-289
NIST Certification By
Not Certified
Min./Max. Memory
Yes
Instrument Counts
6,000
Auto Ranging
Yes
Includes
Alligator Clips, Current Clamp, Test Lead Set
Bar Graph
Yes
Max. DC Amps
400 A
Data Logging
Yes
Diode Test
Yes
Max. AC Volts
1,000
Instrument Safety Rating
CAT IV 600V
Capacitance Range
1 nF to 1000 nF
Max. AC Amps
400 A
Temp. Range
-128 Degrees F to 732 Degrees F (-200 Degrees C to 1350 Degrees C)
Audible Continuity
Yes
Minimum/Maximum Memory
Yes
Elapse Time Clock
Yes
Battery Access
Yes
Minimum DC Current Measurement
0 mA
Resistance Measurement Accuracy
+/-0.05%
AC Response Calculation
TRMS
Capacitance Measurement Accuracy
1.00 %
Maximum Resistance Measurement
500 megaohm
Standards
CE
Minimum DC Voltage Measurement
0 V
Minimum Storage Temperature
-40 Degrees F
Maximum AC Current Measurement
400 A
Basic DC Voltage Accuracy
+/-0.025% + 2 Digits
Maximum Capacitance Measurement
1,000 nF
Parameters Measured
AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
AC Current Measurement Resolution
500 uA
Software Included
No
Minimum AC Current Measurement
0 uA
Minimum Temperature Measurement
-128 Degrees F
Frequency Measurement Resolution
99.999 Hz
Basic AC Current Accuracy
+/-0.6%
Computer Interface Connection Type
USB
Maximum AC Voltage Measurement
1,000 V
Removable Screen
No
Resistance Measurement Resolution
50 ohm
Min-Max-Avg Button Included
Yes
Thermal Imaging
No
Basic DC Current Accuracy
+/-0.05%
DC Current Measurement Resolution
500 uA
Maximum Operating Temperature
131 Degrees F
Maximum DC Current Measurement
400 A
Intrinsically Safe
No
Waterproof
No
Current Leakage Testing
No
Multiple On-Screen Displays
Yes
Maximum Storage Temperature
140 Degrees F
Minimum Frequency Measurement
99.99 Hz
Time of Day Clock
Yes
Basic AC Voltage Accuracy
+/-0.4%
Minimum Capacitance Measurement
1 nF
Capacity
2.24 Ah
Display Type
LCD
Temperature Measurement Accuracy
1.00 %
DC Voltage Measurement Resolution
50 V
Battery Chemistry
Alkaline
Bluetooth Compatible
Yes
AC Voltage Measurement Resolution
50 V
Maximum DC Voltage Measurement
1,000 V
Maximum Temperature Measurement
732 Degrees F
Fuse Access
Yes
Bar Graph Included
Yes
Weight
28 oz
Maximum Frequency Measurement
999.99 kHz
Dustproof
No
Frequency Measurement Accuracy
0.005 %
Capacitance Measurement Resolution
1 nF
NIST Certification By Manufacturer
Not Certified
Minimum Operating Temperature
-4 Degrees F
Minimum AC Voltage Measurement
0 V

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-0.4 Percent, Basic DC Voltage Accuracy +/-0.025 Percent + 2 Digits, Data Hold Yes, Basic DC Current Accuracy +/-0.05 Percent, Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000
