- MFR #
- FLUKE-700G08
- Zoro #
- G4525473
- UPC #
- 095969611091
- Country of Origin
- China
- Item

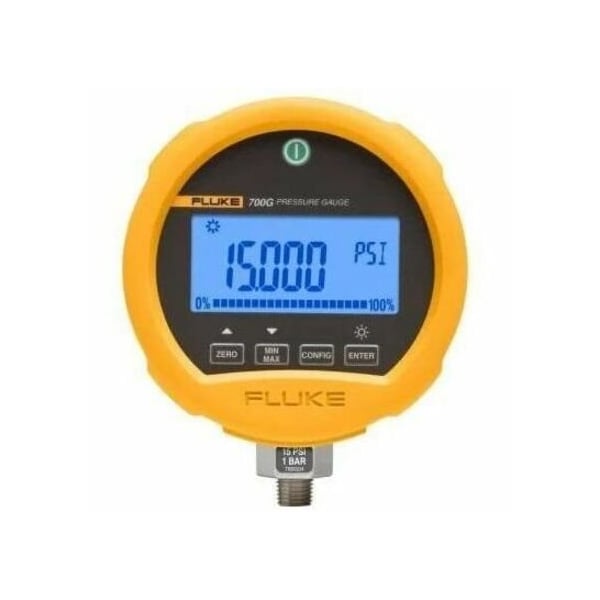

- Digital Test Compound Gauge
- Accuracy
- +/-0.05%
- Process Connection Location
- Bottom
- Process Connection Type
- NPT
- Application
- Hydraulics, Pneumatics
- Gauge Case Material
- Cast Zinc Aluminum
- Series
- 700G
- Primary Pressure Range
- -14 to 0 to 1000
- Primary Scale Units
- psi
- IP/NEMA Rating
- IP67
- Hazardous Location Rating
- Not Rated
- Panel-Mountable
- No
- Blowout Safety Back
- No
- Agency Compliance
- CSA: Class 1, Div2, Groups A-D rating, ATEX: rating II 3 G Ex nA IIB T6
- Socket Material
- Stainless Steel
- Includes
- Manual on CD-ROM in 14 languages
- Case Material
- Cast Znal
- Display
- Multiline LCD
- Case Color
- Silver
- Digital Pressure and Vacuum Gauge Type
- Digital Compound Gauge
- Powered By
- (3) AA Batteries
- Peak Hold
- No
- Calibration Certificate
- NIST Traceable
- Number of Display Digits
- 5
- For Use With
- Any Liquids or Gasses Compatible with 316 Stainless Steel
- Display Units
- bar, psi
- Wetted Materials
- Stainless Steel
- Standards
- ATEX, CSA
- Connection Type
- MNPT
- Compatible Process Media
- Any Clean Dry Non-Corrosive Gas, Any Liquids or Gases Compatible With 316 Stainless Steel, Any Non-Flammable, Non-Toxic, Non-Explosive, Non-Oxidizing Liquid or Gas Compatible With 316 Stainless Steel
- Process Temperature Range
- -14 Degrees to 131 Degrees F
- Primary Display Units
- psi
- Case Shape
- Round
- Pressure Range Type
- Compound
- Number of Digits
- 5
- Power Source
- Battery
- Accuracy Grade Gauge Type
- Process
- Non-Sparking
- No
- Compatible Brand and Series
- Fluke 700 Series
- Display Range
- -14 to 1,000 psi
- Process Connection Gender
- Male
- Includes Calibration Certificate
- NIST with Data
- Includes Mounting Hardware
- No
- Includes Batteries
- No Batteries Included
- Battery Run Time
- 1,500 hr
- Auto-Shutoff
- Yes
- Memory Storage Capacity
- 8493 Readings
- Case Construction
- Rugged
- Ambient Operating Temperature Range
- -10 Degrees to 55 Degrees C, 14 Degrees to 131 Degrees F
- Weatherproof
- No
- Includes Rubber Boot
- No
- Adjustable Set Points
- No
- Low Battery Indicator
- Yes
- Pressure Gauge Type
- Test Pressure Gauge
- Primary Display Range
- -14 to 1,000
- Display Screen Type
- LCD
- Languages
- English
- Compatible Manufacturer Model Number
- 700HTPK, 700PTPK
- Display Resolution
- 0.001 bar
- Bar Graph
- 20 Segments
- Backlit Screen
- Yes
- Burst Pressure
- 4,000 psi
- Sensor Material
- Silicon Substrate
- Automatic Shut-Off Time
- 1 min, 30 min
- Battery Life
- 1,500 hr
- Display Type
- LCD
- Operating Temperature Range
- -14 Degrees to 131 Degrees F
- Compatible with Series
- Fluke 700 Series
- Operating Temperature - Minimum
- 14 Degrees F
- Pressure Measurement - Maximum
- 1,000 psi
- Pressure Measurement - Minimum
- -14 psi
- NEMA Enclosure Rating
- No Enclosure
- Number of Batteries Required
- 3
- Hazardous Location Specification
- Class I, Div 2, Group A, D
- IP Rating
- IP67
- Includes Low Battery Indicator
- Low Battery Indicator
- Compatible with Manufacturer Part Number
- 700HTPK, 700PTPK
- Resistance Properties
- Explosion Proof
- Accuracy Grade
- Not Graded
- Vacuum Measurement - Minimum
- -14 psi
- Process Media Temperature - Minimum
- -14 Degrees F
- Pressure Measuring Units
- bar, psi
- Process Media Temperature - Maximum
- 131 Degrees F
- Vacuum Measurement - Maximum
- 4,000 psi
- Power Source - TS Only
- Battery
- Power Source - old
- Battery
