  5. Digital Test Compound Gauge, -14 to 0 to 5000 psi, 3 3/4 in Dial, 1/4 in NPT, Bottom Location

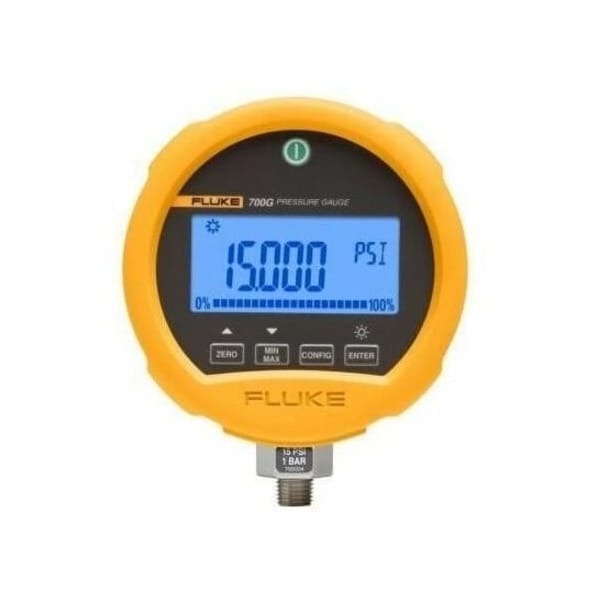

Fluke Digital Test Compound Gauge, -14 to 0 to 5000 psi, 3 3/4 in Dial, 1/4 in NPT, Bottom Location FLUKE-700G30 - main

Digital Test Compound Gauge, -14 to 0 to 5000 psi, 3 3/4 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # FLUKE-700G30

  • Zoro # G4609534

product price:  $1,502.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.05%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
3 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FLUKE-700G30
Zoro #
G4609534
UPC #
095969611114
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 3/4 in
Connection Size
1/4 in
Case Diameter
3.75 in
Nominal Dial Size
3 3/4 in
Digit Height
0.65 in
Display Screen Height
0.65 in
Manufacturer Warranty Length
3 yr
Battery Size
AA

Details

Item
Digital Test Compound Gauge
Accuracy
+/-0.05%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Hydraulics, Pneumatics
Gauge Case Material
Cast Zinc Aluminum
Series
700G
Primary Pressure Range
-14 to 0 to 5000
Primary Scale Units
psi
IP/NEMA Rating
IP67
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Includes
Manual on CD-ROM in 14 languages
Display
Multiline LCD
Calibration Certificate
NIST Traceable
Digital Pressure and Vacuum Gauge Type
Digital Compound Gauge
Powered By
(3) AA Batteries
Case Material
Cast Znal
Agency Compliance
CSA: Class 1, Div2, Groups A-D rating, ATEX: rating II 3 G Ex nA IIB T6
Case Color
Yellow
Peak Hold
No
Socket Material
Stainless Steel
Display Units
bar, psi
Number of Display Digits
5
For Use With
Any Liquids or Gasses Compatible with 316 Stainless Steel
Connection Type
MNPT
Standards
ATEX, CSA
Wetted Materials
Stainless Steel
Compatible Brand and Series
Fluke 700 Series
Primary Display Range
-14 to 5,000
Bar Graph
20 Segments
Number of Digits
5
Battery Run Time
1,500 hr
Primary Display Units
psi
Pressure Range Type
Compound
Auto-Shutoff
Yes
Display Resolution
0.01 bar
Backlit Screen
Yes
Non-Sparking
No
Memory Storage Capacity
8493 Readings
Case Construction
Rugged
Power Source
Battery
Includes Batteries
No Batteries Included
Ambient Operating Temperature Range
-10 Degrees to 55 Degrees C, 14 Degrees to 131 Degrees F
Languages
English
Display Screen Type
LCD
Includes Mounting Hardware
No
Weatherproof
No
Case Shape
Round
Display Range
-14 to 5,000 psi
Low Battery Indicator
Yes
Includes Rubber Boot
No
Burst Pressure
10,000 psi
Adjustable Set Points
No
Pressure Gauge Type
Test Pressure Gauge
Process Temperature Range
-14 Degrees to 131 Degrees F
Compatible Process Media
Any Clean Dry Non-Corrosive Gas, Any Liquids or Gases Compatible With 316 Stainless Steel, Any Non-Flammable, Non-Toxic, Non-Explosive, Non-Oxidizing Liquid or Gas Compatible With 316 Stainless Steel
Includes Calibration Certificate
NIST with Data
Accuracy Grade Gauge Type
Process
Compatible Manufacturer Model Number
700HTPK, 700PTPK
Process Connection Gender
Male
Sensor Material
Silicon Substrate
Battery Life
1,500 hr
Automatic Shut-Off Time
1 min, 30 min
Display Type
LCD
Operating Temperature Range
-14 Degrees to 131 Degrees F
Process Media Temperature - Minimum
-14 Degrees F
Pressure Measuring Units
bar, psi
Hazardous Location Specification
Class I, Div 2, Group A, D
Process Media Temperature - Maximum
131 Degrees F
Operating Temperature - Minimum
14 Degrees F
Compatible with Manufacturer Part Number
700HTPK, 700PTPK
Vacuum Measurement - Maximum
10,001 psi
Pressure Measurement - Minimum
-14 psi
Compatible with Series
Fluke 700 Series
Resistance Properties
Explosion Proof
Includes Low Battery Indicator
Low Battery Indicator
Number of Batteries Required
3
IP Rating
IP67
Accuracy Grade
Not Graded
NEMA Enclosure Rating
No Enclosure
Vacuum Measurement - Minimum
-14 psi
Pressure Measurement - Maximum
5,000 psi

Description

Digital Test Compound Gauge, Accuracy +/-0.05 Percent, Gauge Case Material Cast Zinc Aluminum, Nominal Dial Size 3 3/4 in, Lens Material Not Applicable, IP/NEMA Rating IP67, Hazardous Location Rating Not Rated, Compatible Process Media Any Clean Dry Non-Corrosive Gas, Any Liquids or Gases Compatible With 316 Stainless Steel, Any Non-Flammable, Non-Toxic, Non-Explosive, Non-Oxidizing Liquid or Gas Compatible With 316 Stainless Steel, Sensor Material Silicon Substrate
