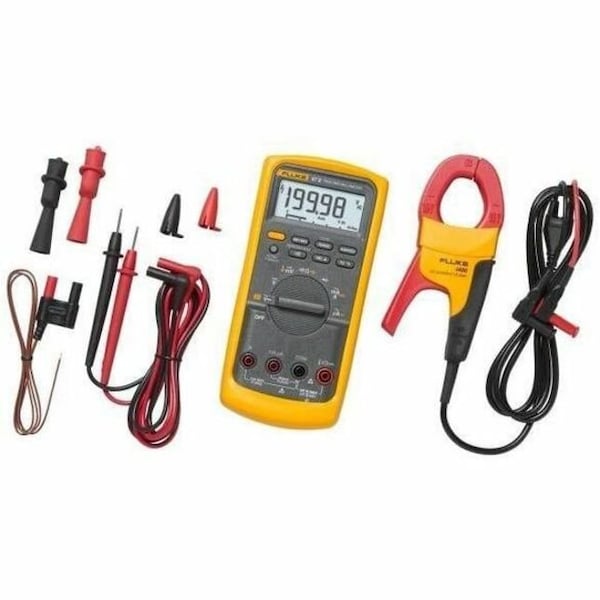

Shop FLUKE

DigitalMultimeter, TRMS, 10A, 1000VAC/DC

  • Mfr # FLUKE 87V/IMSK

  • Zoro # G1477427

product price:  $588.99
/ea
Free Shipping & Returns

Key Features

Includes
Alligator Clips, Current Clamp, Test Leads, Thermocouple Bead Probe
Peak Hold
Yes
Bar Graph
Yes
Duty Cycle
Duty Cycle Test Included
Max. AC Volts
1,000
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FLUKE 87V/IMSK
Zoro #
G1477427
UPC #
095969493802
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
No Warranty (Service Available)
Battery Size
9V
Overall Width
3.85 in
Depth
2.04 in
Overall Height
7.91 in

Details

Item
Digital Multimeter
Includes
Alligator Clips, Current Clamp, Test Leads, Thermocouple Bead Probe
Peak Hold
Yes
Bar Graph
Yes
Duty Cycle
Duty Cycle Test Included
Max. AC Volts
1,000
Temp. Range
-328 Degrees to 2462 Degrees F
Multimeter Style
Full Size
Auto Power Off
Yes
Max. DC Volts
1,000
Max. Ohms
50 megohm
Min./Max. Memory
Yes
Data Logging
Yes
Standards
CSA, EN61010-1, TV, UL, VDE
Battery Type
9V Alkaline
Special Features
Accurate Frequency and Voltage Measurements, Built-In Thermometer, Display Icons, Input Jacks, Latest Electrical Safety Compliance, Optional Magnetic Hanger, Rotary Switch, Tough Design for Industrial Environments
Capacitance Range
10 pF to 9999 uF
Basic DC Accuracy
+/-0.05% of Reading + 1 Digit
AC Response
TRMS
Display
Large Backlit LCD
Max. DC Amps
10
Diode Test
Yes
Max. AC Amps
10
Auto Ranging
Yes
Frequency Measurement Resolution
5 Hz
Maximum Storage Temperature
140 Degrees F
Current Leakage Testing
No
Maximum Capacitance Measurement
9,999 uF
Weight
355 g
Maximum DC Voltage Measurement
1,000 V
Maximum Temperature Measurement
2,462 Degrees F
Capacitance Measurement Accuracy
+/-(1% + 2)
Minimum/Maximum Memory
Min/Max
Battery Access
Yes
Minimum Operating Temperature
-4 Degrees F
Minimum Storage Temperature
-40 Degrees F
Basic AC Voltage Accuracy
+/-(0.7% + 2)
Basic DC Current Accuracy
+/-(0.2% + 2)
Minimum AC Current Measurement
0 A
Software Included
No
Basic DC Voltage Accuracy
+/-0.05% + 1 Digit
Maximum DC Current Measurement
10 A
Minimum Temperature Measurement
-328 Degrees F
AC Response Calculation
TRMS
Removable Screen
No
Waterproof
No
Maximum AC Current Measurement
10 A
Thermal Imaging
No
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
Bar Graph Included
Yes
Bluetooth Compatible
No
Maximum Resistance Measurement
50 megaohm
Audible Continuity
Yes
Display Type
Backlit LCD
Calibration Certificate Included
No Certification Included
Minimum Capacitance Measurement
10 pF
Dustproof
No
Computer Interface Connection Type
None
Maximum AC Voltage Measurement
1,000 V
Maximum Frequency Measurement
200 kHz
Data Hold
Yes
Instrument Counts
6,000
Temperature Measurement Accuracy
+/-2.00%
Basic AC Current Accuracy
+/-(1.0% + 2)
Battery Chemistry
Alkaline
Minimum AC Voltage Measurement
0 V
Resistance Measurement Accuracy
+/-0.2%
Minimum DC Current Measurement
0 A
Intrinsically Safe
No
Instrument Safety Rating
CAT IV 600V
Maximum Operating Temperature
131 Degrees F
Frequency Measurement Accuracy
+/-(0.005% + 1)
Minimum DC Voltage Measurement
0 V
Includes Auto Sensing
No Auto Sensing Included
IP Rating
Not Rated
Current Units
A, mA
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
Battery Voltage
9 V

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-(0.7 Percent + 2), Basic DC Voltage Accuracy +/-0.05 Percent + 1 Digit, Data Hold Yes, Basic DC Current Accuracy +/-(0.2 Percent + 2), Instrument Safety Rating CAT III 1000V, CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000
