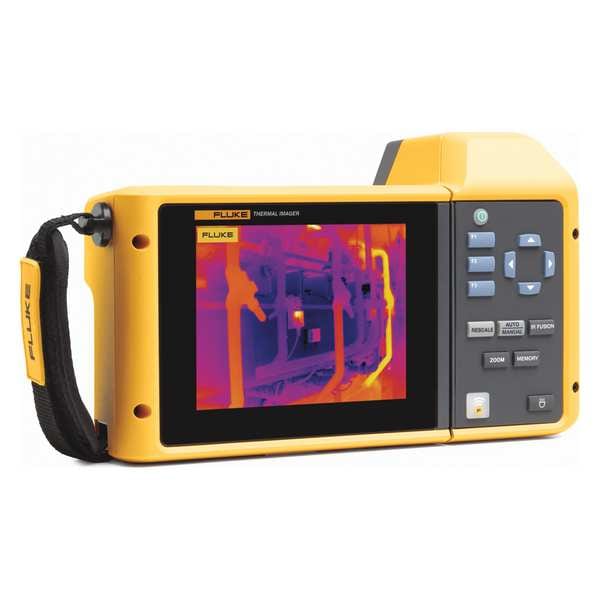

Fluke Infrared Camera, -4 Degrees to 1472 Degrees F, 50 mK, 640 x 480 Display, 5.7 in Color LCD Display FLK-TIX580 - main

Infrared Camera, -4 Degrees to 1472 Degrees F, 50 mK, 640 x 480 Display, 5.7 in Color LCD Display

  • Mfr # FLK-TIX580

  • Zoro # G1457957

product price:  $29,470.99
/ea
Free Shipping & Returns

Key Features

Field of View
34 Degrees x 24 Degrees
Temp. Range (F) - Infrared
-4 Degrees to 1472 Degrees
Features
Data Logging, Image Notation, Image Sketching
Thermal Sensitivity
50 mK
Focus Method
Auto, Manual
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLK-TIX580
Zoro #
G1457957
UPC #
095969835220
Country of Origin
United States

Dimensions

Display Size
5.7 in
Manufacturers Warranty Length
2 yr
Manufacturer Warranty Length
2 yr

Details

Item
Infrared Camera
Field of View
34 Degrees x 24 Degrees
Temp. Range (F) - Infrared
-4 Degrees to 1472 Degrees
Features
Data Logging, Image Notation, Image Sketching
Thermal Sensitivity
50 mK
Focus Method
Auto, Manual
Display Resolution
640 x 480
Visual Light Resolution
5 MP
File Formats
BMP, GIF, JPEG, PNG, TIFF
Removable Memory Card
Not Included
Includes
Battery Charger, Bluetooth Headset, Hard Carrying Case, HDMI Video Cable, Neck and Hand Strap, Power Supply, Universal AC Adapter, USB Cable
Standards
CFR 47, Part 15 Subpart B, CISPR 11: Group 1, Class A, IEC 61010-1: Overvoltage Category II, Pollution Degree 2, IEC 61326-1, IEC 61326-1: Basic EM Environment
Spectral Response - Infrared
7.5 to 14.0um
Data Logging - Instrument
Yes
Focus Range - Infrared
0.15m to Infinity
Thermal and Visible Light Blending
No
Frame Rate - IR Camera
60 Hz
Display Resolution - IR Camera
640 x 480 Pixels
Alarm
yes
Detector Resolution - Infrared
640 x 480 Pixels
Thermal And Visible Light Blending
No
Wireless
Yes
Laser Sighting
Yes
Safety Rating
IEC 61010-1: Overvoltage Category II, Pollution Degree 2
Emissivity
Adjustable 0.01 to 1.00
Drop Tested
1 m
Item - Infrared Camera
Infrared Camera
Temp. Accuracy (C) - Infrared
+/-2.0 Degrees
Multiple Lens Option
Yes
Field of View - IR Camera
34.0 Degrees Horizontal x 24.0 Degrees Vertical
Thermal Sensitivity - IR Camera
50 mK
Image Notation
Text; Voice
Picture In Picture
Yes
NIST Certified
No
Special Features
240 Degrees Rotating Screen, Ergonomic Design, Extended Warranties Are Available, Fluke Connect Smartview Desktop Software, IR Fusion(R) Technology, IR-Photonotes(TM), Lasersharp(R) Auto Focus, MATLAB and LabVIEW Compatibility, Multisharp(TM) Focus Delivers Automatically Focused Images Throughout Your Field of View
Articulating Lens
Yes
Temp. Range (C) - Infrared
-20 Degrees to 800 Degrees
Display - IR Camera
5.7 in Color LCD
Temp. Accuracy (F) - Infrared
+/-2 Degrees or +/-2%
Focus Distance - Infrared
Minimum of 0.15 m
Lens Angles Included
34 Degrees
Calibration Certificate Type
Available Separately
Battery Chemistry
Lithium Ion
Minimum Temperature Measured Degrees C
-20 Degrees C
Emissivity Adjustability
Adjustable
Accuracy Degrees C
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Batteries Included
Yes
Frame Rate
9 Hz, 60 Hz
Minimum Temperature Measured Degrees F
-4 Degrees F
Maximum Temperature Measured Degrees F
1,832 Degrees F
Portability
Handheld
Maximum Operating Temperature Degrees F
122 Degrees F
Data Transfer Type
Wireless
Battery Run Time
3 hr
Alert Type
Digital Display, Sound
Maximum Emissivity Setting
1.00
Minimum Operating Temperature Degrees F
14 Degrees F
Temperature Alerts
High Temperature, Low Temperature
Auto Power Off
No
Digital Display Screen Type
LCD Touchscreen
Accuracy Degrees F
+/-2% of reading or 35.6 Degrees F Whichever is Greater
Minimum Focus Distance
15 cm
Series
Expert
Intrinsic Safety
Not Specified Intrinsically Safe
Minimum Emissivity Setting
0.01
Number of Batteries Required
2
Interface
SD Card, USB, Wireless
Infrared Resolution
640 x 480
Maximum Temperature Measured Degrees C
50 Degrees C

Description

Infrared Camera, Temperature Alerts High Temperature, Low Temperature, Frame Rate 9 Hz, 60 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Available Separately, Alert Type Digital Display, Sound, Data Transfer Type Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 50 mK, Minimum Focus Distance 15 cm, Minimum Operating Temperature Degrees F 14 Degrees F

Restrictions

Hazardous material
