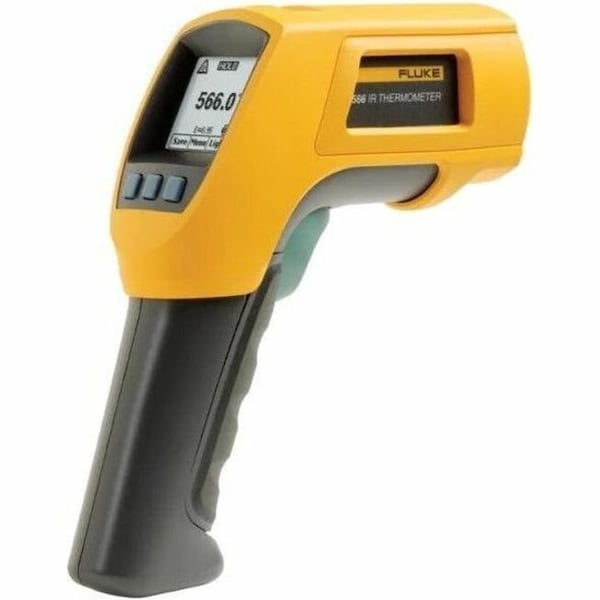

Infrared Thermometer, Single Dot Laser Sighting Adjustable 0.10 to 1.00, Dot Matrix LCD

  • Mfr # FLUKE-566

  • Zoro # G1872507

product price:
$
570.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Focus Spot Size and Distance - Infrared
1 in @ 30 in
Temp. Range (F) - Infrared
-40 Degrees to 1202 Degrees
Emissivity
Adjustable 0.10 to 1.00
Temp. Accuracy (F) - Infrared
+/-1.0% or +/-2.0 Degrees Whichever is Greater
Temp. Accuracy (C) - Infrared
+/-1.0%
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLUKE-566
Zoro #
G1872507
UPC #
095969780148
Country of Origin
China

Dimensions

Focus Spot Size and Distance - Infrared
1 in @ 30 in
Manufacturers Warranty Length
2 yr
Focus Spot Size and Distance
1" @ 30"
Battery Size
AA
Manufacturer Warranty Length
2 yr

Details

Item
Infrared Thermometer
Temp. Range (F) - Infrared
-40 Degrees to 1202 Degrees
Emissivity
Adjustable 0.10 to 1.00
Temp. Accuracy (F) - Infrared
+/-1.0% or +/-2.0 Degrees Whichever is Greater
Temp. Accuracy (C) - Infrared
+/-1.0%
Laser Sighting
Single Dot
Calibration Certificate Included
No
Data Logging - Instrument
Yes
Display - IR Camera
Dot Matrix LCD
Accuracy
+/-2 Degrees F or +/-1%
Data Logging
Yes
Battery Type
(2) AA
Standards
Class II Laser
Temp. Range (F)
-40 Degrees to 1202 Degrees F
Spectral Response
8.0 to 14 uM
Temperature Alarm - Thermometer
High, Low
Special Features
Data Logs 20 Points
Memory
Max/Min/Avg/Dif
Trigger
Yes
Alarm
High/Low
Memory - Instrument
Avg., Dif., Max., Min
Data Hold
Yes
Includes
Hard Carrying Case, Thermocouple K Bead Probe
Spectral Response - Infrared
8.0 to 14.0um
Repeatability
+/-0.5% of Reading
Temp. Range (C) - Infrared
-40 Degrees to 650 Degrees
Display
Dot Matrix LCD
Laser Sighting - Infrared
Single Dot
Item - Infrared Thermometer
Infrared Thermometer
Operating Temp. Range
32 Degrees to 122 Degrees F
Response Time
500 msec
Resolution
0.1 Degrees C
Alarm Indication
High/Low
Temp. Range (C)
-40 Degrees to 650 Degrees C
Temp. Range
-40 Degrees to 1200 Degrees F
Environmental Applications - Air Conditioners and Heat Pumps
Non-Medical
Intrinsic Safety
Not Specified Intrinsically Safe
Maximum Temperature Measured Degrees C
650 Degrees C
Maximum Operating Temperature Degrees F
122 Degrees F
Secondary Measuring Method
Type K Thermocouple
Calibration Certificate Type
Not Certified
Maximum Emissivity Setting
1.00
Laser Sighting Type
Single Dot
Digital Display Screen Type
LCD
Testing Functions
Average, Difference, Maximum Temperature, Minimum Temperature
Accuracy Degrees F
+/-1.0% of Reading or +/-2.0 Degrees Whichever is Greater
Minimum Temperature Measured Degrees C
-40 Degrees C
Minimum Emissivity Setting
0.10
Maximum Temperature Measured Degrees F
1,202 Degrees F
Accuracy Degrees C
+/-1.0% of Reading or +/-1.0 Degrees Whichever is Greater
Resolution Degrees F
0.1 Degrees F
Minimum Temperature Measured Degrees F
-40 Degrees F
Emissivity Adjustability
Adjustable
Battery Run Time
12 hr
Temperature Alerts
High Temperature, Low Temperature
Includes Work Light
Work Light Included
Minimum Operating Temperature Degrees F
32 Degrees F
Alert Type
Digital Display, Light, Sound
Body Style
Pocket Size
Number of Batteries Required
2
Mounting Style
Tripod
Distance To Spot Ratio
30:1
Resolution Degrees C
0.1 Degrees C

Description

Infrared Thermometer, Laser Sighting Type Single Dot, Secondary Measuring Method Type K Thermocouple, Emissivity Adjustability Adjustable, Distance To Spot Ratio 30:1, Alert Type Digital Display, Light, Sound, Field of View Not Applicable, Minimum Emissivity Setting 0.10, Maximum Emissivity Setting 1.00, Minimum Temperature Measured Degrees F -40 Degrees F, Maximum Temperature Measured Degrees F 1,202 Degrees F, Minimum Operating Temperature Degrees F 32 Degrees F
