  5. Insulation Meter, CAT III 1000V, CAT IV 600V, Insulation Resistance .01 megaohm to 2 gigohm, Backlit

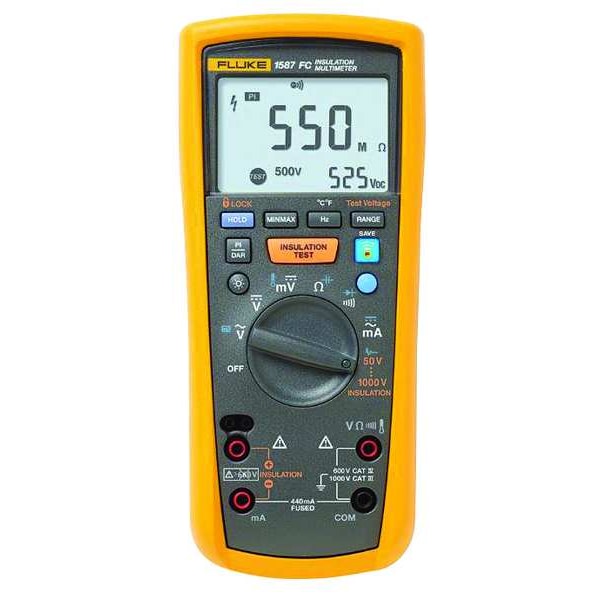

Fluke Insulation Meter, CAT III 1000V, CAT IV 600V, Insulation Resistance .01 megaohm to 2 gigohm, Backlit FLUKE-1587 FC/WWG - main

Insulation Meter, CAT III 1000V, CAT IV 600V, Insulation Resistance .01 megaohm to 2 gigohm, Backlit

  • Mfr # FLUKE-1587 FC/WWG

  • Zoro # G2268281

product price:  $1,134.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Alligator Clip, Hard Case, K-Type Thermocouple, Remote Probe, Test Leads
Insulation Resistance Range
0.01 megaohm to 2 gigohm
Max. AC Volts
1,000
Max. DC Volts
1,000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FLUKE-1587 FC/WWG
Zoro #
G2268281
UPC #
095969797313
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr
Tool Height
8 in
Battery Size
AA
Tool Width
3.9 in
Manufacturer Warranty Length
3 yr
Tool Length
2 in

Details

Item
Insulation Multimeter
Power Source
Battery
Includes
Alligator Clip, Hard Case, K-Type Thermocouple, Remote Probe, Test Leads
Insulation Resistance Range
0.01 megaohm to 2 gigohm
Max. AC Volts
1,000
Max. DC Volts
1,000
Resistance Range
0 to 50 megohm
Interface
Bluetooth
Auto Power Off
Yes
Display
Digital LCD with Backlit
Calibration Certificate
None
Temp. Range
-40 Degrees to 998 Degrees F
Max. AC Amps
400 mA
Features
Insulation Resistance Test Results Wirelessly with Your Smartphone
Max. DC Amps
400 mA
Data Logging
6000
Auto Ranging
Yes
Output Test Voltage
50/100/250/500/1000V DC
Live Circuit Detection
Greater Than 30V
Capacitance Range
1000 nF to 9999 uF
Diode Test
Yes
Safety Rating
CAT III 1000V, CAT IV 600V
Standards
IEC 61326-1, IEC 61326-2-2 CISPR 11
Display Type
Digital
Parameters Measured
Insulation Resistance
Communication Protocol
Bluetooth
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Number of Digits
5
Number of Records Stored
6,000
Operating Voltage
1,000V
Bluetooth Compatible
Yes
Includes Batteries
Yes
IP Rating
IP40
Capacitance Auto Discharge
Yes
Maximum Operating Temperature
998 Degrees F
PI/DAR Testing
Yes
Dustproof
No
Leakage Current Range
1.0 mA
Minimum AC Current Measured
0.1 mA
Testing Functions
Insulation
Minimum AC Voltage Measured
600 mV
Maximum AC Current Measured
400 mA
Data Logger
Yes
Input Impedance
10 megaohm
Battery Chemistry
Alkaline
Maximum Insulation Resistance
2 gigohm
Greater Than 30V Warning
Yes
Number of Batteries Required
4
Pass/Fail Selection Limits
No
Insulation Resistance Resolution
0.01 megaohm to 2 gigaohm
Timed Ramp Voltage Test
Yes
USB Data Download Included
No
Test Voltage
1,000V DC, 100V DC, 250V DC, 500V DC, 50V DC
Remote Test Probe Included
Yes
Backlit Digital Display
Yes
Minimum Insulation Resistance
0.01 megaohm
Test Current
400 mA
Insulation Limit Alarm
No
Minimum Capacitance Measured
1,000 nF
Minimum DC Voltage Measured
6 V
Maximum Capacitance Measured
9,999 nF
Maximum DC Voltage Measured
1,000 V
Minimum Operating Temperature
-40 Degrees F
Maximum DC Current Measured
400 mA
Waterproof
No
Maximum AC Voltage Measured
1,000 V
Resistance Accuracy
+/-3.00% +5 digits
Display Screen Type
LCD
Live Circuit Voltage
Greater Than30V

Description

Insulation Multimeter, Backlit Digital Display Yes, Bluetooth Compatible Yes, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate None, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Includes Alligator Clip, Hard Case, K-Type Thermocouple, Remote Probe, Test Leads, Insulation Limit Alarm No, Maximum Insulation Resistance 2 gigohm, Minimum Insulation Resistance 0.01 megaohm, PI/DAR Testing Yes
