  9. Irradiance Meter, 1,400 W/sq m, -90 -90

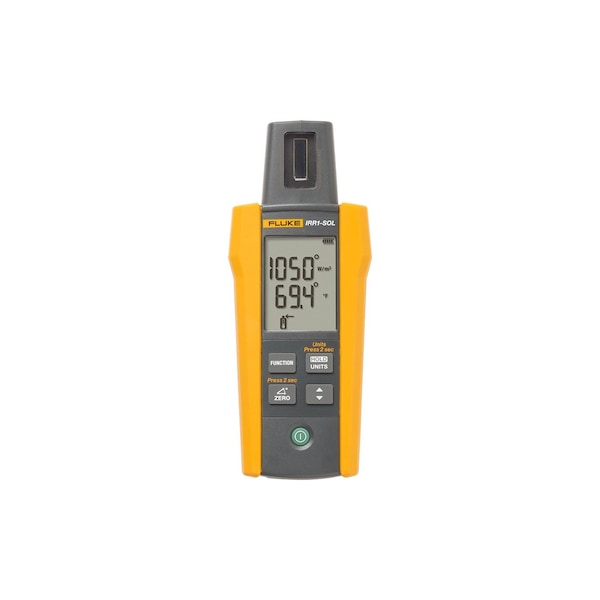

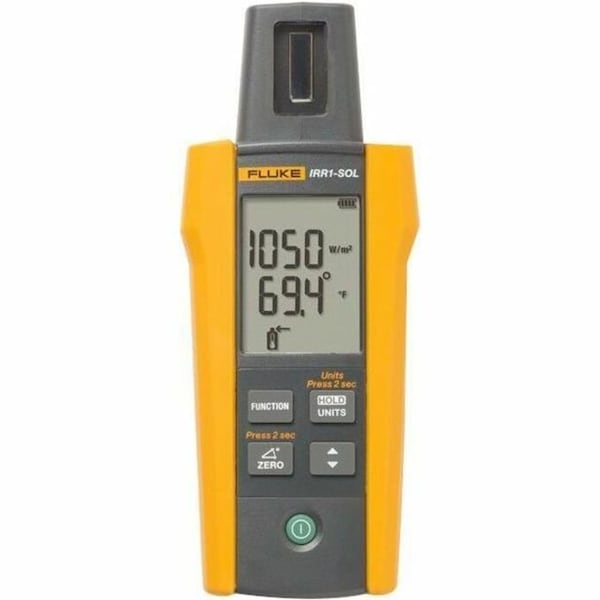

Fluke Irradiance Meter, 1,400 W/sq m, -90 -90 FLK-IRR1-SOL - main

Irradiance Meter, 1,400 W/sq m, -90 -90

  • Mfr # FLK-IRR1-SOL

  • Zoro # G800919752

product price: $439.99
/ea
Free Shipping & Returns

Key Features

Power Source
(4) AAA Batteries
Interface
LCD Display
Auto Power Off
Yes
Data Logging
No
Irradiance Range
0 to 1400 W/m²
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLK-IRR1-SOL
Zoro #
G800919752
UPC #
095969983440
Country of Origin
China

Dimensions

Recommended Battery Size
AA
L x W x H
150 x 80 x 35 mm (5.90 x 3.14 x 1.37 in)

Details

Item
Solar Irradiance Meter
Power Source
(4) AAA Batteries
Interface
LCD Display
Auto Power Off
Yes
Data Logging
No
Irradiance Range
0 to 1400 W/m²
Display
LCD
Features
Measure solar irradiance, ambient and PV module temperature, array orientation and tilt angles
Includes
Carry Case with Shoulder Strap
Temp. Range
-20 to 50 Degrees C
Compass Bearing Range
0 Degrees to 360 Degrees
Inclinometer Range
-90 to 90 Degrees
Inclination Resolution
1 Degrees
Irradiance Accuracy
+/-5% + 5 Digit
Irradiance Measurement - Maximum
1,400 W/sq m
Temperature Measurement - Maximum
212 Degrees F
Minimum Operating Temperature
-4 Degrees F
Inclination Measurement - Minimum
-90 Degrees
Irradiance Measurement - Minimum
100 W/sq m
Irradiance Resolution
1 W/sq m
Maximum Operating Temperature
122 Degrees F
Number of Batteries
4
Temperature Resolution
0.1 Degrees C
Includes Batteries
No
Temperature Measurement - Minimum
-22 Degrees F
Inclination Measurement - Maximum
90 Degrees
Battery Life (typical)
50 hours (≤9000 readings)
Resolution (Inclination Angle)
0.1°
Measuring Range (Irradiance)
100 to 1400 W/m²
Measuring Range (Compass)
0° to 360°
Measuring Range (Inclination Angle)
-90° to +90°
Resolution (Temperature)
0.1 °C (0.2 °F) / 1 °F @>100 °F
IP Protection
IP40
Measuring Accuracy (Irradiance)
± (5 % + 5 Digit)
Measuring range (°C)
-30 °C to 100 °C (-22 °F to 212 °F)
Resolution (Compass)
1°
Measuring Accuracy (typical)
± 1.5°@ -50° to +50°±2.5° @ -85° to -50° and +50° to +85°±3.5° @ -90° to -85° and +85° to +90°
Measuring Accuracy (Compass)
±7°
Operating Temperature 80PR-IRR
-30 °C to +100 °C
Altitude
0 m to max. 2000 m
Storage temperature
-30 °C to 60 °C (humidity <80%)
Resolution (Irradiance)
1 W/m²
Measuring Accuracy (Temperature)
"±5 °C (±9 °F)@ -10 °C to 75 °C (14 °F to 167 °F),±8 °C (±14.5 °F)@ -30 °C to -10 °C (-22 °F to 14 °F), and75 °C to 100 °C (167 °F to 212 °F)"
International
IEC 61326-1: Portable Electromagnetic Environment
Operating Temperature IRR1-SOL
-20 °C to 50 °C (humidity <80%), noncondensing
Batteries
4 AA Alkaline Batteries

Description

Irradiance Meter, Irradiance Measurement - Minimum 100 W/sq m, Irradiance Measurement - Maximum 1,400 W/sq m, Compass Bearing Range 0 Degrees to 360 Degrees , Inclination Measurement - Minimum -90 Degrees , Inclination Measurement - Maximum 90 Degrees , Display LCD, Datalogging No, Includes Carry Case with Shoulder Strap, Temperature Resolution 0.1 Degrees C, Number of Batteries 4, Irradiance Resolution 1 W/sq m, Temperature Measurement - Maximum 212 Degrees F
