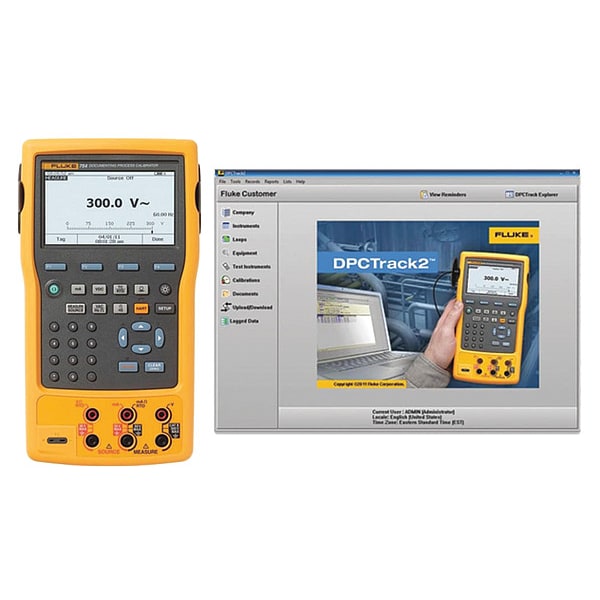

Fluke Multifunction Calibrator FLUKE-754/750SW BU - main

Multifunction Calibrator

  • Mfr # FLUKE-754/750SW BU

  • Zoro # G8044977

product price: $13,875.99
/ea
Free Shipping & Returns

Key Features

Includes
(2) AC280 Hook Clips, (3) Extended Tooth Alligator Clips, (3) TP220 Test Probes, 754HHC HART Communications Cable, Battery Charger, Carrying Case, USB Cable
Standards
ASNI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1-92, EN 610-1:1993, UL3111
Interface
USB
Loop Supply Voltage
26 V
Powered By
Rechargeable Battery Pack
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-754/750SW BU
Zoro #
G8044977
UPC #
095969724166
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Multifunction Calibrator
Includes
(2) AC280 Hook Clips, (3) Extended Tooth Alligator Clips, (3) TP220 Test Probes, 754HHC HART Communications Cable, Battery Charger, Carrying Case, USB Cable
Standards
ASNI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1-92, EN 610-1:1993, UL3111
Interface
USB
Loop Supply Voltage
26 V
Powered By
Rechargeable Battery Pack
Current Measurement Range
0 to 24mA DC
Thermocouple Temperature Range
-25 Degrees to 250 Degrees C
Voltage Measurement Range
0 to 300V AC/V DC
Basic DC Accuracy
+/- 0.05% + 0.05V
Source Current
0 to 24mA DC
Intrinsically Safe
No
Measurement Functions
F, mA, Ohms, P, T, V
Thermocouple Type
B, BP, C, E, J, K, L, N, R, S, T, U, XK
Pressure Modules
All Fluke 700 Series modules
Shop By
Hot Buys
Source Frequency - Maximum
50 kHz
Frequency Measurement - Minimum
11.01 kHz
Voltage Measurement - Minimum
3 V AC/DC
Voltage Measurement - Maximum
300 V AC/DC
Communication Protocol
HART
Frequency Measurement - Maximum
50 kHz
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance
Thermocouple Temperature - Maximum
1,472 Degrees F
Intrinsic Safety
Not Specified Intrinsically Safe
Current Measurement - Maximum
110 mA
Current Measurement - Minimum
30 mA
Calibration Certificate Type
NIST
Source Voltage - Minimum
1 V
Loop Current - Maximum
25 mA
Source Resistance - Minimum
1 kiloohm
Battery Chemistry
Lithium Ion
Includes Batteries
Batteries Included
Source Voltage - Maximum
15 V
Source Current - Maximum
22 mA
IP Rating
IP52
Resistance Measurement - Minimum
1 kiloohm
Source Frequency - Minimum
22 kHz
Thermocouple Temperature - Minimum
482 Degrees F
Source Resistance - Maximum
10 kiloohm
Source Current - Minimum
0 mA
Resistance Measurement - Maximum
10 kiloohm

Description

Multifunction Calibrator, Voltage Measurement Range 0 to 300V AC/V DC, Loop Supply Voltage 26 V, Intrinsically Safe No, Pressure Modules All Fluke 700 Series modules, Measurement Functions F, mA, Ohms, P, T, V, Source Current 0 to 24mA DC, Current Measurement Range 0 to 24mA DC, Basic DC Accuracy +/- 0.05 Percent + 0.05V, Thermocouple Temperature Range -25 Degrees to 250 Degrees C, Powered By Rechargeable Battery Pack
