Fluke Networks Cable Analyzer Quad OTDR OLTS Inspc V2 DSX2-8QOI-NW - main

Cable Analyzer Quad OTDR OLTS Inspc V2

  • Mfr # DSX2-8QOI-NW

  • Zoro # G812788247

product price: $44,327.99
/ea
Free Shipping & Returns

Key Features

For Use With
Copper Cabling
Connector Type
RJ45
Includes

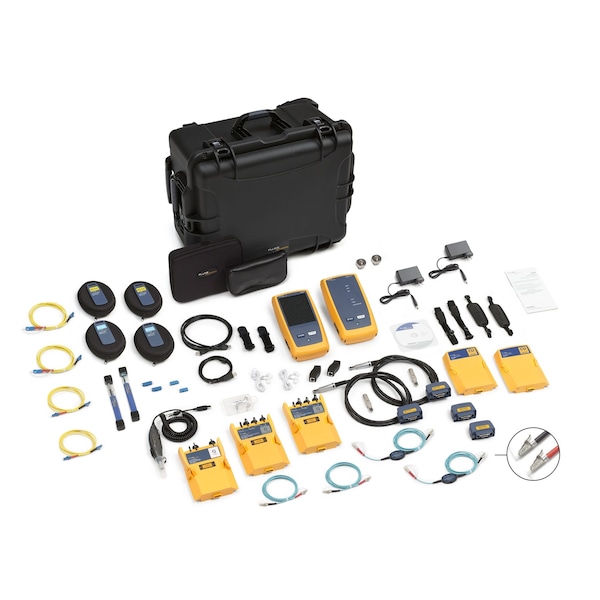

(2) 50 micron m SC/LC Multimode Launch Cables, (2) 9 micron m SC/LC Singlemode Launch Cables, (2) AC Chargers, (2) AxTalk Terminators, (2) CertiFiber Quad OLTS Modules, (2) DSX-8000 CableAnalyzer Modules, (2) Hand Straps, (2) Headsets, (2) Quick Clean Cleaners (1.25/2.50 mm), (2) Shoulder Straps, (2) Universal Couplers, 50 micron m SC/LC EF-Compliant MM TRC Kit, Hard Sided Carrying Case, OptiFiber Pro Quad OTDR Module, SC/LC SM TRC Kit, TRC Carrying Case, USB Fiber Inspection Video Probe with 4 Tips, USB Interface Cable, Versiv Mainframe & Remote
Calibration Certificate
Included
Output Amplitude
15 V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DSX2-8QOI-NW
Zoro #
G812788247
UPC #
0754082147060
Country of Origin
United States

Dimensions

Display Size
5.7 in
Battery Size
7.2V
Maximum Cable Length
2,600 ft
Minimum Cable Length
1 m
Manufacturer Warranty Length
1 yr

Details

Item
Cable Analyzer
For Use With
Copper Cabling
Connector Type
RJ45
Includes
(2) 50 micron m SC/LC Multimode Launch Cables, (2) 9 micron m SC/LC Singlemode Launch Cables, (2) AC Chargers, (2) AxTalk Terminators, (2) CertiFiber Quad OLTS Modules, (2) DSX-8000 CableAnalyzer Modules, (2) Hand Straps, (2) Headsets, (2) Quick Clean Cleaners (1.25/2.50 mm), (2) Shoulder Straps, (2) Universal Couplers, 50 micron m SC/LC EF-Compliant MM TRC Kit, Hard Sided Carrying Case, OptiFiber Pro Quad OTDR Module, SC/LC SM TRC Kit, TRC Carrying Case, USB Fiber Inspection Video Probe with 4 Tips, USB Interface Cable, Versiv Mainframe & Remote
Calibration Certificate
Included
Output Amplitude
15 V DC
Standards
ANSI/TIA-1152-A, ANSI/TIA/EIA-568, IEC 61935-1 Ed. 5 Level VI, ISO/IEC 11801, TCL and ELTCTL
Waterproof
No
Data Safe Monitor
Yes
Auto Power Off
Yes
IP Rating
Not Rated
Adapters Included
Cat 8/Class I Channel Adapters, Cat 8/Class I Permanent Link Adapters, LC/LC Simplex Adapters, SC/SC Simplex Adapters
Number of Batteries Required
1
Alert Type
Digital Display
Digital Memory Capacity
¿ 5,000 Cat 8 with plots
Wire Mapping Detections
Opens, Shorts
Maximum Speed Measured
40 GBps
Testing Functions
Cable Certification, Endpoint Testing, Wire Mapping
Data Logger
Yes
Product Type
Copper Cable Tester
Includes Software
Yes
Number of Results Stored
12,000
Fault Location Pulse Duration
750 nsec
Maximum Operating Humidity
90 %
Communication Protocol
USB
Maximum Impedance Measured
540 ohm
Compatible Cable Type
CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, CAT8
Display Type
Digital
Includes Batteries
Yes
Maximum Operating Temperature
113 Degrees F
Maximum Resistance Measured
540 ohm
Battery Chemistry
Lithium Ion
Port Number Display
Yes
Display Screen Type
LCD
Backlit Digital Display
Yes
Minimum Operating Temperature
32 Degrees F

Description

Cable Analyzer Quad OTDR OLTS Inspc V2
