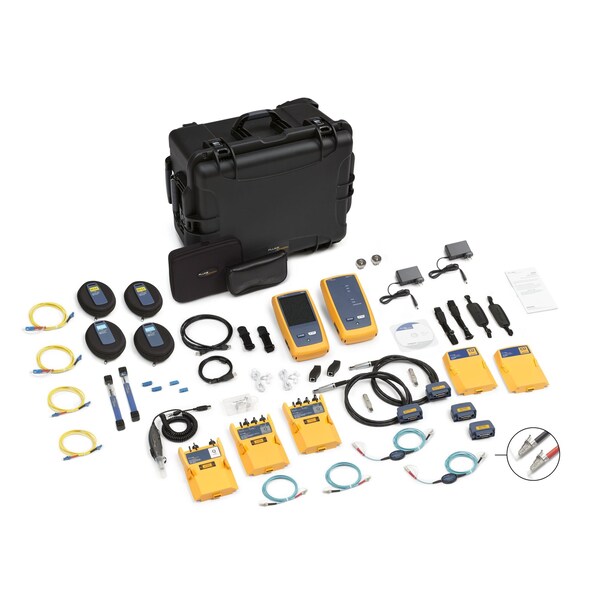

Fluke Networks Cable Analyzer w/Quad OTDR, OLTS, Inspec DSX2-8QOI/GLD-NW - main

Cable Analyzer w/Quad OTDR, OLTS, Inspec

  • Mfr # DSX2-8QOI/GLD-NW

  • Zoro # G512798607

product price:  $50,915.99
/ea
Free Shipping & Returns

Key Features

For Use With
Copper Cabling
Connector Type
RJ45
Includes
(2) 50 micron m SC/LC Multimode Launch Cables, (2) 9 micron m SC/LC Singlemode Launch Cables, (2) AC Chargers, (2) AxTalk Terminators, (2) CertiFiber Quad OLTS Modules, (2) DSX-8000 CableAnalyzer Modules, (2) Hand Straps, (2) Headsets, (2) Quick Clean Cleaners (1.25/2.50 mm), (2) Shoulder Straps, (2) Universal Couplers, 50 micron m SC/LC EF-Compliant MM TRC Kit, Hard Sided Carrying Case, OptiFiber Pro Quad OTDR Module, SC/LC SM TRC Kit, TRC Carrying Case, USB Fiber Inspection Video Probe with 4 Tips, USB Interface Cable, Versiv Mainframe & Remote
Calibration Certificate
Included
Waterproof
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DSX2-8QOI/GLD-NW
Zoro #
G512798607
UPC #
0754082147077
Country of Origin
United States

Dimensions

Battery Size
7.2V
Display Size
5.7 in
Minimum Cable Length
1 m
Manufacturer Warranty Length
1 yr
Maximum Cable Length
2,600 ft

Details

Item
Cable Analyzer
For Use With
Copper Cabling
Connector Type
RJ45
Includes
(2) 50 micron m SC/LC Multimode Launch Cables, (2) 9 micron m SC/LC Singlemode Launch Cables, (2) AC Chargers, (2) AxTalk Terminators, (2) CertiFiber Quad OLTS Modules, (2) DSX-8000 CableAnalyzer Modules, (2) Hand Straps, (2) Headsets, (2) Quick Clean Cleaners (1.25/2.50 mm), (2) Shoulder Straps, (2) Universal Couplers, 50 micron m SC/LC EF-Compliant MM TRC Kit, Hard Sided Carrying Case, OptiFiber Pro Quad OTDR Module, SC/LC SM TRC Kit, TRC Carrying Case, USB Fiber Inspection Video Probe with 4 Tips, USB Interface Cable, Versiv Mainframe & Remote
Calibration Certificate
Included
Waterproof
No
Data Safe Monitor
Yes
Standards
ANSI/TIA-1152-A, ANSI/TIA/EIA-568, IEC 61935-1 Ed. 5 Level VI, ISO/IEC 11801, TCL and ELTCTL
Output Amplitude
15 V DC
Maximum Impedance Measured
540 ohm
Number of Batteries Required
1
IP Rating
Not Rated
Display Type
Digital
Port Number Display
Yes
Backlit Digital Display
Yes
Display Screen Type
LCD
Number of Results Stored
12,000
Maximum Resistance Measured
540 ohm
Data Logger
Yes
Includes Software
Yes
Wire Mapping Detections
Opens, Shorts
Maximum Operating Temperature
113 Degrees F
Product Type
Copper Cable Tester
Adapters Included
Cat 8/Class I Channel Adapters, Cat 8/Class I Permanent Link Adapters, LC/LC Simplex Adapters, SC/SC Simplex Adapters
Maximum Operating Humidity
90 %
Auto Power Off
Yes
Battery Chemistry
Lithium Ion
Testing Functions
Cable Certification, Endpoint Testing, Wire Mapping
Fault Location Pulse Duration
750 nsec
Communication Protocol
USB
Alert Type
Digital Display
Maximum Speed Measured
40 GBps
Compatible Cable Type
CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, CAT8
Includes Batteries
Yes
Digital Memory Capacity
¿ 5,000 Cat 8 with plots
Minimum Operating Temperature
32 Degrees F

Description

Cable Analyzer w/Quad OTDR,OLTS,Inspec
