Item
Cable Network Tester
Primary Function
Copper Cable Qualification
Display
800 x 480 color capacitive multi-touch
For Use With
Industrial Ethernet Cabling
Instrument Display
Touchscreen
Includes
(7) Remote IDs, AC Charger, Duffle Bag Carrying Case, Hanging Strap with Remote ID Holder, IntelliTone Pro 200 Probe, LinkIQ(TM) Main Unit, RJ45/M12D Patch Cord, RJ45/M12X Patch Cord, RJ45/M8D Patch Cord, RJ45 Patch Cord
Connector Type
RJ11, RJ45
Calibration Certificate
Not Included
Adapter Type
M12D, M12X, M8, RJ45
Cable Speed Qualification
Yes
Standards
RoHS Compliant Directive 2002/95/EC
Ethernet Service Detection
Yes
Telephone Service Detection
No
Opens/Shorts Detection
Yes
Data Line Polarity Indicator
No
Product Type
Cable Network Tester
Product Name
LinkIQ Industrial Ethernet Cable+Network Test Kit
Package Contents

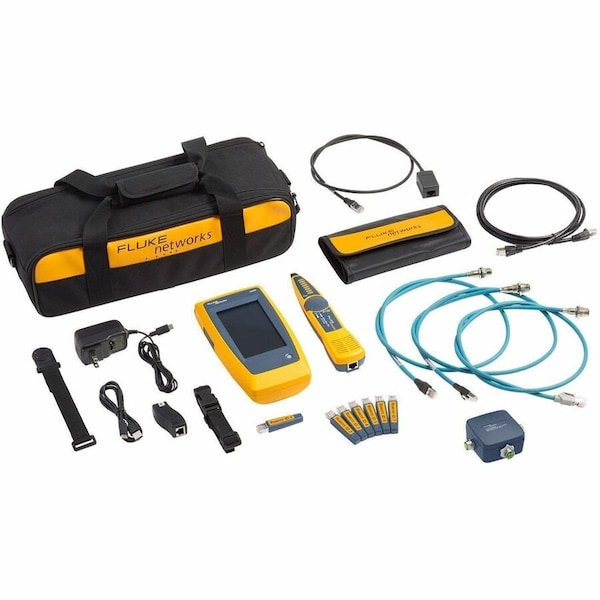

LinkIQ™ Main Unit, Remote ID #1-7, IntelliTone(TM) Pro 200 Probe, RJ45-RJ45 patch cord (M-F), Quick Reference Guide, AC charger, RJ45/11 universal coupler, RJ45/M12X patch cord, RJ45/M12D patch cord, RJ45/M8D patch cord, RJ45/11 Modular Adapter, Hanging strap with Remote ID holder, Duffle bag carry case
Compatible Cable Type
Twisted Pair
Minimum Operating Temperature
32 Degrees F
Maximum Speed Measured
10 GBps
Battery Chemistry
Lithium Ion
Maximum Operating Humidity
90 %
Alert Type
Digital Display, Sound
Maximum Impedance Measured
540 ohm
Number of Results Stored
1,000
Wire Mapping Detections
Crossed Pairs, Opens, Reversed Pairs, Shorts, Split Pairs
Maximum Operating Temperature
113 Degrees F
Testing Functions
Cable Length Display, Distance to Fault, Ethernet Service Detection, PoE/PoE+ Detection, Tone Generation, Wire Mapping
Number of Batteries Required
1
Communication Protocol
USB
Adapters Included
RJ11, RJ45
Display Screen Type
LCD Touchscreen
Operating Altitude
4,000 m 3,200 m with ac adapter
Port Blink
Blink the light of the connected port
IP Ping Test Results
Four response time results for target, DNS Server(s), Gateway, plus average and number lost
Operating Relative Humidity
0 % to 90 %, 0°C to 35°C 0 % to 70 %, 35°C to 45°C
IP Address Setup
LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP
Cable Types
Balanced twisted-pair cabling Unshielded twisted-pair Screened twisted-pair 2-pair and/or 4-pair
Test Port
Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs.
Power adapter
Input: 100 to 240 VAC ±10%, 50/60Hz Output: 15 VDC, 2 A maximum Class II
Diagnostic Protocols
Link Layer Discovery Protocol (LLDP) Cisco Discovery Protocol (CDP) Fast Link Pulses (FLP) Internet Control Messaging Protocol (ICMP), Dynamic Host Configuration Protocol (DHCP)
Operating temperature
0°C to 45°C
Power Over Ethernet Compatibility
Ethernet Alliance Certified to IEEE 802.3af/at/bt, Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP
Host Interface
USB type C
Languages supported in UI
English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese
Power Over Ethernet Measurements
Loaded Voltage (V) Loaded Power (W)
Storage temperature
-10°C to +60°C
Commissioning Autotests
10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed: 6 seconds for lengths < 70 m
Vibration
Random, 2 g, 5 Hz-500 Hz
Battery
Type: Lithium-ion, 3.6 V, 6400 mAh Life: 8 hours typical Charge time: 4.5 hours Charging temperature range: 0 °C to +40 °C
Remote ID Locators
Use remote ID terminations to identify up to 7 unique ports or office outlets
Operating Voltage
100/240V AC
