Primary Function
Copper Cable Qualification
Display
5. 7 in LCD display with a projected capacitance touchscreen
Instrument Display
Touchscreen

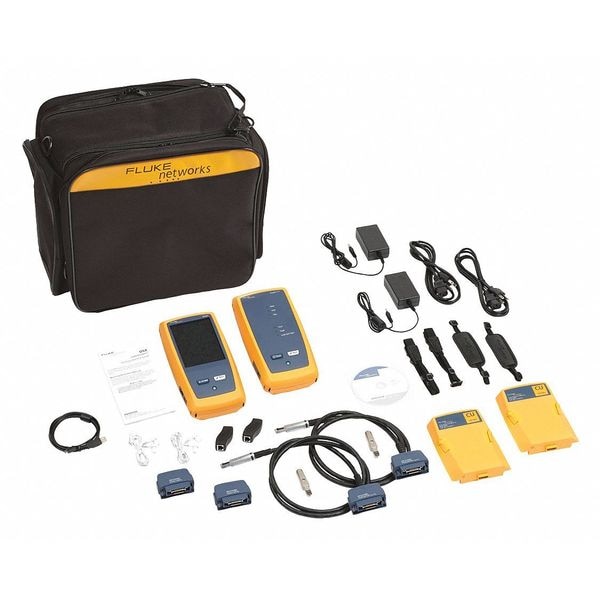

Includes
(2) AC Chargers, (2) DSX-5000 CableAnalyzer Modules, (2) Hand Straps, (2) Headsets, (2) Shoulder Straps, (2) Universal Couplers, Carrying Case, Integrated Wi-Fi, USB Interface Cable, Versiv Mainframe & Remote
Calibration Certificate
Included
Opens/Shorts Detection
Yes
Data Line Polarity Indicator
No
Telephone Service Detection
No
Cable Speed Qualification
Yes
Ethernet Service Detection
No
Resolution
0. 1 m or 1 ft, 0. 1 Ω, 1 ns
Standards
ANSI/TIA-568.2-D, IEC, ISO
Product Type
Cable Network Tester
Fault Location Pulse Duration
750 nsec
Maximum Speed Measured
40 GBps
Number of Results Stored
12,000
Alert Type
Digital Display
Maximum Impedance Measured
540 ohm
Battery Chemistry
Lithium Ion
Maximum Operating Temperature
113 Degrees F
Minimum Operating Temperature
32 Degrees F
Maximum Operating Humidity
90 %
Wire Mapping Detections
Opens, Shorts
Adapters Included
CAT6A/Class EA Channel, CAT6A/Class EA Permanent Link
Testing Functions
Cable Certification, Endpoint Testing, Wire Mapping
Compatible Cable Type
CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, CAT8
Operating Temperature
32°F to 113°F (0°C to 45°C)
Integrated Wi-Fi
Meets IEEE 802. 11 a/b/g/n; dual band (2. 4 GHz and 5 GHz)
Main unit and remote
Lithium ion battery pack, 7. 2 V
Range
150 m (490 ft) || 800 m (2600 ft), 750 ns || 4000 ns, 0 ns to 100 ns, 0 Ω to 540 Ω
TIA
Category 3, 4, 5, 5e, 6, 6A, 8 per ANSI/TIA-568. 2-D
Operating relative humidity
0 % to 70 %, 95°F to 113 °F (35°C to 45°C) || 0 % to 90 %, 32°F to 95 °F (0°C to 35°C)
Storage Temperature
-14°F to +140°F (-10°C to +60°C)
Permanent link adapters
Optional Plug type: Tera || Plug type: shielded RJ45
Input protection
Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
Charge time
Tester off: 4 hours to charge from 10 % capacity to 90 % capacity.
Operating altitude
13,123 ft (4,000 m) || 10,500 ft (3,200 m) with ac adapter
Maximum frequency
DSX-5000: 1000 MHz || DSX-8000: 2000 MHz;
Channel Adapters
Jack type: shielded RJ45 || Optional Jack type: Tera, GG45
Case
High impact plastic with shock absorbing overmold
Safety
CSA 22. 2 No. 61010, IEC 61010-1 3 || Edition
Accuracy
± (1 Ω + 1 %), ± 10 ns, ± (2 ns + 2 %) || ± (2 ns + 2 %); 0 ns to 750 ns || ± (2 ns + 4 %); 750 ns to 4000 ns, ± (0. 3 m + 4 %); 150 m to 800 m || ± (0. 3 m + 2 %); 0 m to 150 m || ± (0. 3 m + 2 %)
Supported test parameters (The selected test standard determines the test parameters and the frequency range of the tests)
Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Pair-to-Pair Resistance Unbalance, Pair Resistance Unbalance, Insertion Loss (Attenuation), Return Loss (RL), Common Mode Return loss (CMRL), Near End Crosstalk (NEXT), Far End Crosstalk (FEXT), Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien NEXT (PS ANEXT), Power Sum Alien Attenuation NEXT Ratio Far End (PS AACR-F), Common Mode to Differential Mode NEXT (CDNEXT),Transverse Conversion Loss (TCL), Equal Level Transverse Conversion Transfer Loss (ELTCTL)
Speed of Autotest
Full 2-way Autotest of Category 8, Full 2-way Autotest of Category 6A/Class E, Full 2-way Autotest of Category 6A/Class EA, Full 2-way Autotest of Category 5e or 6/Class D or E
Overload recovery time
Less than 10 minutes to rated accuracy following an overvoltage. Referencing is required after repeated or prolonged overvoltage.
Vibration
Random, 2 g, 5 Hz-500 Hz
Shielded and unshielded pair LAN cabling
, F, F || TIA Category 3, 4, 5, 5e, 6, 6A, 8: 100 Ω ISO/IEC Class C, D, E, E || and I/II: 100 Ω and 120 Ω
ISO/IEC
Class C and D, E, E || , F, F || and I/II certification per ISO/IEC
Shock
1 m drop test with and without module and adapter
Typical battery life
8 hours
