Cable Tester
|
|
Primary Function
|
Copper Cable Qualification
|
|
Display
|
5. 7 in LCD display with a projected capacitance touchscreen
|
|
Instrument Display
|
Touchscreen
|
|
Includes
|
(2) AC Chargers, (2) AxTalk Terminators, (2) CableAnalyzer Modules, (2) Hand Straps, (2) Headsets, (2) Shoulder Straps, (2) Universal Couplers, Carrying Case, Integrated Wi-Fi, USB Interface Cable, Versiv Mainframe & Remote
|
|
Connector Type
|
RJ45
|
|
Calibration Certificate
|
Included
|
|
Data Line Polarity Indicator
|
No
|
|
PoE/PoE+ Detection
|
Yes
|
|
Pair Tracing
|
Yes
|
|
Endpoint Testing
|
Yes
|
|
Impedance Detection
|
Yes
|
|
Tone Generator
|
No
|
|
Tone Detection
|
Yes
|
|
Cable Certification
|
Yes
|
|
Continuity Testing
|
Yes
|
|
Cable Speed Qualification
|
Yes
|
|
Distance to Fault
|
Yes
|
|
WiFi Capability
|
Yes
|
|
Ethernet Service Detection
|
No
|
|
Telephone Service Detection
|
No
|
|
Opens/Shorts Detection
|
Yes
|
|
Crosstalk Detection
|
Yes
|
|
Service Detection
|
No
|
|
Wiremapping
|
Yes
|
|
Standards
|
ANSI/TIA-568.2-D, IEC, ISO
|
|
Waterproof
|
No
|
|
Output Amplitude
|
15 V DC
|
|
Data Safe Monitor
|
Yes
|
|
Resolution
|
0. 1 m or 1 ft, 1 ns, 0. 1 Ω
|
|
Product Type
|
Cable Network Tester
|
|
Case
|
High impact plastic with shock absorbing overmold
|
|
Maximum frequency
|
DSX-5000: 1000 MHz || DSX-8000: 2000 MHz;
|
|
Permanent link adapters
|
Optional Plug type: Tera || Plug type: shielded RJ45
|
|
Input protection
|
Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
|
|
Vibration
|
Random, 2 g, 5 Hz-500 Hz
|
|
Speed of Autotest
|
|| . Full 2-way Autotest of Category 8: || . Full 2-way Autotest of Category 6A/Class E || . Full 2-way Autotest of Category 6A/Class EA: || : || : Full 2-way Autotest of Category 5e or 6/Class D or E:
|
|
Safety
|
CSA 22. 2 No. 61010, IEC 61010-1 3 || Edition
|
|
Charge time
|
Tester off: 4 hours to charge from 10 % capacity to 90 % capacity.
|
|
Operating Temperature
|
32°F to 113°F (0°C to 45°C)
|
|
Overload recovery time
|
Less than 10 minutes to rated accuracy following an overvoltage. Referencing is required after repeated or prolonged overvoltage.
|
|
Channel Adapters
|
Jack type: shielded RJ45 || Optional Jack type: Tera, GG45
|
|
Shielded and unshielded pair LAN cabling
|
, F, F || TIA Category 3, 4, 5, 5e, 6, 6A, 8: 100 Ω ISO/IEC Class C, D, E, E || and I/II: 100 Ω and 120 Ω
|
|
TIA
|
Category 3, 4, 5, 5e, 6, 6A, 8 per ANSI/TIA-568. 2-D
|
|
Operating relative humidity
|
0 % to 70 %, 95°F to 113 °F (35°C to 45°C) || 0 % to 90 %, 32°F to 95 °F (0°C to 35°C)
|
|
Main unit and remote
|
Lithium ion battery pack, 7. 2 V
|
|
Shock
|
1 m drop test with and without module and adapter
|
|
ISO/IEC
|
Class C and D, E, E || , F, F || and I/II certification per ISO/IEC
|
|
Range
|
0 Ω to 540 Ω, 0 ns to 100 ns, 150 m (490 ft) || 800 m (2600 ft), 750 ns || 4000 ns
|
|
Supported test parameters (The selected test standard determines the test parameters and the frequency range of the tests)
|
Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Pair-to-Pair Resistance Unbalance, Pair Resistance Unbalance, Insertion Loss (Attenuation), Return Loss (RL), Common Mode Return loss (CMRL), Near End Crosstalk (NEXT), Far End Crosstalk (FEXT), Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien NEXT (PS ANEXT), Power Sum Alien Attenuation NEXT Ratio Far End (PS AACR-F), Common Mode to Differential Mode NEXT (CDNEXT),Transverse Conversion Loss (TCL), Equal Level Transverse Conversion Transfer Loss (ELTCTL)
|
|
Storage Temperature
|
-14°F to +140°F (-10°C to +60°C)
|
|
Operating altitude
|
13,123 ft (4,000 m) || 10,500 ft (3,200 m) with ac adapter
|
|
Typical battery life
|
8 hours
|
|
Accuracy
|
± 10 ns, ± (1 Ω + 1 %), ± (0. 3 m + 4 %); 150 m to 800 m || ± (0. 3 m + 2 %); 0 m to 150 m || ± (0. 3 m + 2 %), ± (2 ns + 2 %) || ± (2 ns + 2 %); 0 ns to 750 ns || ± (2 ns + 4 %); 750 ns to 4000 ns
|
|
Integrated Wi-Fi
|
Meets IEEE 802. 11 a/b/g/n; dual band (2. 4 GHz and 5 GHz)
|
|
Ethernet Technology
|
40 Gigabit Ethernet
|
|
Network (RJ-45)
|
Yes
|
|
Product Name
|
DSX2-8000 Cable Analyzer
|
|
Device Function
|
Twisted Pair Cable Testing
|
|
Network Standard
|
40GBase-X
|
|
USB
|
Yes
|
|
Package Contents
|

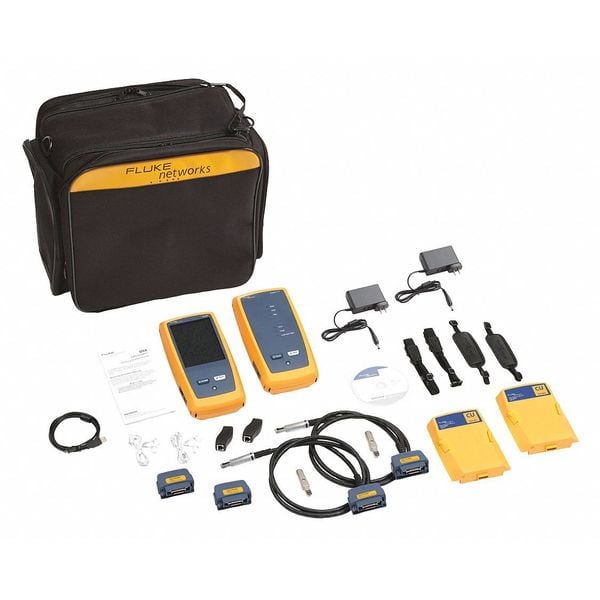

1 x Versiv Mainframe & Remote, 2 x DSX-8000 CableAnalyzer Modules, Set of Cat 8/Class I Permanent Link Adapters, Set of Cat 8/Class I Channel Adapters, 2 x Headsets, 2 x HandStrap, 2 x Shoulder Straps, Carry Case, USB Interface Cable, Versiv Open Source Software CD, 2 x AC Chargers, 2 x Universal Couplers, 2 x AxTalk Terminators, Integrated Wi-Fi, Statement of Calibration, Getting Started Guide
|
|
Media Type Supported
|
Twisted Pair
|
|
Product Line
|
CableAnalyzer
|
|
Battery Chemistry
|
Lithium Ion
|
|
Minimum Operating Temperature
|
32 Degrees F
|
|
Alert Type
|
Digital Display
|
|
Maximum Operating Humidity
|
90 %
|
|
Includes Batteries
|
Yes
|
|
Adapters Included
|
CAT8/Class I Permanent Link
|
|
Fault Location Pulse Duration
|
750 nsec
|
|
Display Screen Type
|
LCD
|
|
Compatible Cable Type
|
CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, CAT8
|
|
Wire Mapping Detections
|
Opens, Shorts
|
|
Maximum Operating Temperature
|
113 Degrees F
|
|
Number of Results Stored
|
12,000
|
|
Port Number Display
|
Yes
|
|
Maximum Speed Measured
|
40 GBps
|
|
Maximum Impedance Measured
|
540 ohm
|
|
Testing Functions
|
Cable Certification, Endpoint Testing, Wire Mapping
|
|
Data Logger
|
Yes
|
