Fluke Networks DSX Quad Olts Inps V2 DSX2-5000QI/GLD - main

DSX Quad Olts Inps V2

  • Mfr # DSX2-5000QI/GLD

  • Zoro # G509615993

product price: $31,663.99
/ea
Free Shipping & Returns

Key Features

Connector Type
RJ45
Includes

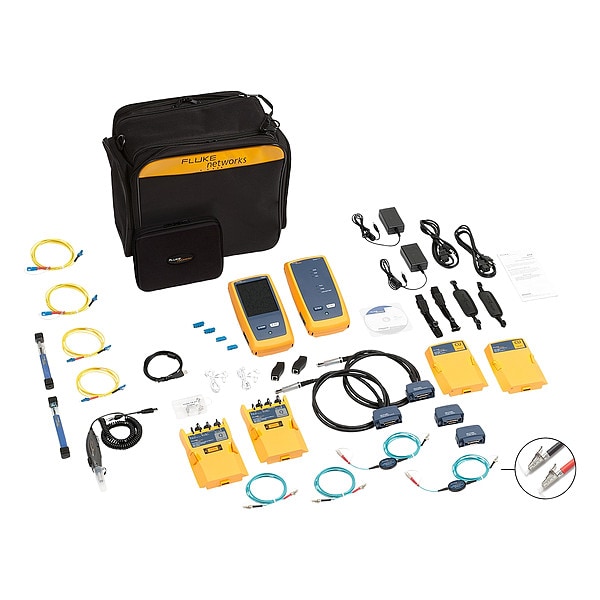

(2) AC Chargers, (2) CertiFiber Quad OLTS Modules, (2) DSX-5000 CableAnalyzer Modules, (2) Hand Straps, (2) Headsets, (2) Quick Clean Cleaners, (2) Shoulder Straps, (2) Universal Couplers, 50 micron m SC/LC EF-Compliant MM TRC Kit, Carrying Case, Integrated Wi-Fi, SC/LC SM TRC Kit, TRC Carrying Case, USB Interface Cable, USB Video Inspection Probe with 4 Tips, Versiv Mainframe & Remote
Calibration Certificate
Included
Data Safe Monitor
Yes
Standards
ANSI/TIA-1152-A, ANSI/TIA/EIA-568, IEC 61935-1 Ed. 5 Level VI, ISO/IEC 11801, TCL and ELTCTL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DSX2-5000QI/GLD
Zoro #
G509615993
UPC #
754082144090
Country of Origin
United States

Dimensions

Maximum Cable Length
2,600 ft
Manufacturer Warranty Length
1 yr
Battery Size
7.2V
Display Size
5.7 in

Details

Item
Cable Tester Kit
Connector Type
RJ45
Includes
(2) AC Chargers, (2) CertiFiber Quad OLTS Modules, (2) DSX-5000 CableAnalyzer Modules, (2) Hand Straps, (2) Headsets, (2) Quick Clean Cleaners, (2) Shoulder Straps, (2) Universal Couplers, 50 micron m SC/LC EF-Compliant MM TRC Kit, Carrying Case, Integrated Wi-Fi, SC/LC SM TRC Kit, TRC Carrying Case, USB Interface Cable, USB Video Inspection Probe with 4 Tips, Versiv Mainframe & Remote
Calibration Certificate
Included
Data Safe Monitor
Yes
Standards
ANSI/TIA-1152-A, ANSI/TIA/EIA-568, IEC 61935-1 Ed. 5 Level VI, ISO/IEC 11801, TCL and ELTCTL
Output Amplitude
15 V DC
Waterproof
No
Maximum Impedance Measured
540 ohm
Number of Results Stored
12,000
Compatible Cable Type
CAT3, CAT4, CAT5, CAT5e, CAT6, CAT6A, CAT8
Maximum Resistance Measured
540 ohm
Communication Protocol
Wi-Fi
Maximum Speed Measured
40 GBps
Data Logger
Yes
Product Type
Cable Tester Kit
Includes Software
Yes
Fault Location Pulse Duration
750 nsec
Maximum Operating Humidity
90 %
Battery Chemistry
Lithium Ion
Minimum Operating Temperature
32 Degrees F
Includes Batteries
Yes
Alert Type
Digital Display
Display Type
Digital
Adapters Included
CAT6A/Class EA Channel, CAT6A/Class EA Permanent Link, LC/LC Simplex
Testing Functions
Cable Certification, Endpoint Testing, Wire Mapping
Port Number Display
Yes
Wire Mapping Detections
Opens, Shorts
Display Screen Type
LCD
Maximum Operating Temperature
113 Degrees F

Description

Cable Tester Kit, Testing Functions Cable Certification, Endpoint Testing, Wire Mapping, Adapters Included CAT6A/Class EA Channel, CAT6A/Class EA Permanent Link, LC/LC Simplex, Connector Type RJ45, Maximum Speed Measured 40 GBps, Data Safe Monitor Yes, Display Screen Type LCD
