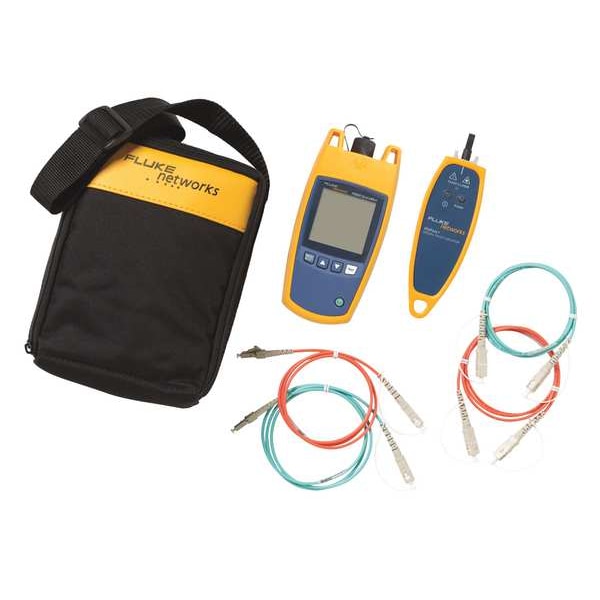

Fluke Networks Fiber Optic Fault Locator, SC Connector FQM-100-M-VFL - main

Fiber Optic Fault Locator, SC Connector

  • Mfr # FQM-100-M-VFL

  • Zoro # G9191415

product price: $3,428.87
/ea
Free Shipping & Returns

Key Features

Display
Yes
Application
Fiber Troubleshooting
For Use With
Multimode Fiber
Measures
Fiber Verification and Fault Location
Features
Works On Multimode Fiber, 9/125micron m and 62.5/125 micron m, Locate Severe Bends, High-Loss Splices, Breaks and Dirty Connectors In Single Mode Fiber, Change The Index of Refraction (IOR) to Improve Fiber Length Accuracy
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FQM-100-M-VFL
Zoro #
G9191415
UPC #
754082137573
Country of Origin
United States

Dimensions

Height
6.9"
Depth
1.5"
Width
3.1"
Output wavelengths
850 nm ± 10 nm
Battery Size Supported
AA
Battery Size
AA
Maximum Wavelength Measurement
850 nm

Details

Item
Fiber Optic Fault Locator
Display
Yes
Application
Fiber Troubleshooting
For Use With
Multimode Fiber
Measures
Fiber Verification and Fault Location
Features
Works On Multimode Fiber, 9/125micron m and 62.5/125 micron m, Locate Severe Bends, High-Loss Splices, Breaks and Dirty Connectors In Single Mode Fiber, Change The Index of Refraction (IOR) to Improve Fiber Length Accuracy
Connector Type
SC
Includes
Adapter, Carrying Case, Patch Cord
Adapter Type
SC
Calibration Certificate
None
Waterproof
No
Line Polarity Indicator
No
Standards
CE, CSA, FCC, N10140
Product Type
Fiber Identifier
Laser safety
Class 1 CDRH Complies to EN 60825-2
Detection of loss incidents5
0. 70 dB default threshold (user-configurable from 0. 5 dB to 6. 1 dB in 0. 2 dB increments)
Certifications and Compliance
Conforms to relevant European Union , Listed by the Canadian Standards Association CSA, Conforms to FCC Rules, Part A, Class A, Conforms to relevant Australian standards, C22. 2 No. 61010. 1. 04, directives
Laser classification
Class 1 CDRH Complies to EN 60825-2
LCD type
Backlit black and white (segments)
Distance accuracy (0 m to 1500 m or 0 ft to 4921 ft)
± (1 m + 0. 1 % x length) for reflective incidents || ± (3 m + 0. 1 % x length) for non-reflective incidents
Fiber types tested
50/125 µm or 62. 5/125 µm multimode
Index of refraction range
1. 45 to 1. 5 (factory default is 1. 496)
Detection of reflective incidents3
-35 dB default threshold (User selectable: -20 dB to -45 dB in 5 dB increments)
Altitude
3000m
Battery life
1500 tests (typical)
Testing speed
< 6 seconds typical
Auto turn off
Automatically turns off after 5 minutes if no keys are pressed. Backlight turns off first.
Battery type
2 AA alkaline batteries (no battery charger)
Non-operating temperature
-20ºC to 60ºC
Live fiber detection
Detects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a signal is there. Looks for a signal every 3 seconds after the first detec-tion. +7 dB maximum input power.
Shock
1 meter drop test
Dynamic range
>11 dB
Connector
Removable/cleanable SC adapter, UPC polish
Vibration
Random, 5 Hz to 500 Hz, MIL-PRF-28800F CLASS 2
Operating relative humidity (without condensation)
95% (10ºC to 35ºC) 75% (35ºC to 40ºC) uncontrolled < 10ºC
Maximum distance
1500 meters or 4921 feet
Reflectance accuracy4
± 4 dB
Operating temperature with the battery
0ºC to 50ºC
Maximum number of incidents shown
9
Maximum reflectance measurement
-20 dB
Product Line
Fiber QuickMap
Product Name
Mulitmode Fiber Distance and Fault Locator
Battery Included
Yes
Number of Batteries Supported
2
Device Function
LAN Cable Testing, Network Testing, Fiber Optic Cable Testing, Cable Fault Testing, Network Traffic Monitoring, Mismatched Wiring Testing
Package Contents
Mulitmode Fiber Distance and Fault Locator, Screw on Interchangeable SC Adapter, UPC-UPC 2-meter Patch Cord, Carrying Case, 4-language Quick Reference Guide, Safety Instruction Manual, Batteries, VisiFault Visual Fault Locator with 2.5 mm Universal Adapter
Battery Chemistry
Alkaline
Media Type Supported
Optical Fiber
Backlit Digital Display
Yes
Fiber Mode Measured
Multi-Mode
Testing Functions
Cable Length Display, Distance to Fault
Auto Power Off
Yes
Includes Batteries
Yes
Adapters Included
SC
Number of Batteries Required
2
Display Screen Type
LCD
Minimum Operating Temperature
32 Degrees F
Alert Type
Digital Display
Maximum Operating Humidity
95 %
Maximum Operating Temperature
122 Degrees F

Description

Fiber Optic Fault Locator, Calibration Certificate None, Connector Type SC, Adapters Included SC, Alert Type Digital Display, Fiber Mode Measured Multi-Mode, IP Rating Not Applicable, Product Type Fiber Identifier, Testing Functions Cable Length Display, Distance to Fault, Auto Power Off Yes, Backlit Digital Display Yes, Battery Chemistry Alkaline, Battery Size AA, Display Screen Type LCD
