  9. Fiber Optic Fault Locator, SC Connector

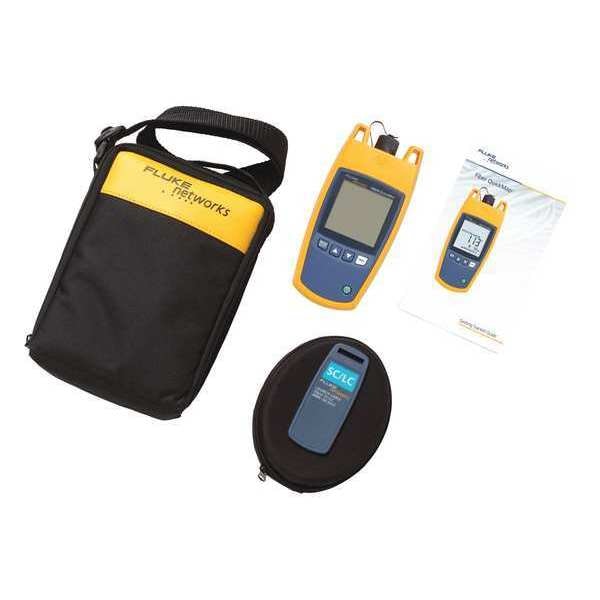

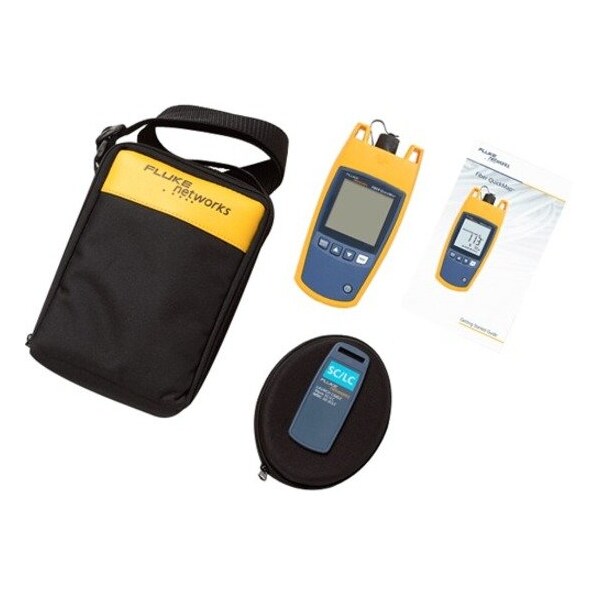

Fluke Networks Fiber Optic Fault Locator, SC Connector FQM-100-M - main

Fiber Optic Fault Locator, SC Connector

  • Mfr # FQM-100-M

  • Zoro # G9191379

product price: $3,180.99
/ea
Free Shipping & Returns

Key Features

For Use With
Multimode Fiber
Application
Fiber Troubleshooting
Display
Yes
Measures
Fiber Verification and Fault Location
Features
Fills The Gap Between a VFL and An OTDR, VFL Simplicity, Identify Live Fiber, Provide Distance and Power Information On High Losses, Breaks At The End of The Fiber
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FQM-100-M
Zoro #
G9191379
UPC #
754082137566
Country of Origin
United States

Dimensions

Battery Size
AA
Maximum Wavelength Measurement
850 nm
Output wavelengths
850 nm ± 10 nm

Details

Item
Fiber Optic Fault Locator
For Use With
Multimode Fiber
Application
Fiber Troubleshooting
Display
Yes
Measures
Fiber Verification and Fault Location
Features
Fills The Gap Between a VFL and An OTDR, VFL Simplicity, Identify Live Fiber, Provide Distance and Power Information On High Losses, Breaks At The End of The Fiber
Connector Type
SC
Includes
Adapter, Carrying Case, Patch Cord
Adapter Type
SC
Calibration Certificate
None
Waterproof
No
Line Polarity Indicator
No
Standards
CE, CSA, FCC, N10140
Product Type
Fiber Optic Tester
Testing Functions
Cable Length Display, Distance to Fault
Backlit Digital Display
Yes
Includes Batteries
Yes
Maximum Operating Temperature
122 Degrees F
Alert Type
Digital Display
Maximum Operating Humidity
95 %
Adapters Included
SC
Auto Power Off
Yes
Battery Chemistry
Alkaline
Minimum Operating Temperature
32 Degrees F
Display Screen Type
LCD
Number of Batteries Required
2
Fiber Mode Measured
Multi-Mode
Package Contents
Multimode fiber fault locator unit, Screw on interchangeable SC adapter, 50 µm SC/LC Multimode Launch Fiber, Carrying case, 4-language Quick Reference Guide (manuals in 9 languages available on-line), Safety instruction manual, Batteries
Battery life
1500 tests (typical)
Operating relative humidity (without condensation)
95% (10ºC to 35ºC) 75% (35ºC to 40ºC) uncontrolled < 10ºC
Shock
1 meter drop test
Detection of reflective incidents3
-35 dB default threshold (User selectable: -20 dB to -45 dB in 5 dB increments)
Maximum distance
1500 meters or 4921 feet
Auto turn off
Automatically turns off after 5 minutes if no keys are pressed. Backlight turns off first.
Certifications and Compliance
Conforms to relevant European Union, Listed by the Canadian Standards Association CSA , Conforms to FCC Rules, Part A, Class A , Conforms to relevant Australian standards , C22. 2 No. 61010. 1. 04 , directives
Index of refraction range
1. 45 to 1. 5 (factory default is 1. 496)
Product Name
Test Kit
Laser classification
Class 1 CDRH Complies to EN 60825-2
Altitude
3000m
Detection of loss incidents5
0. 70 dB default threshold (user-configurable from 0. 5 dB to 6. 1 dB in 0. 2 dB increments)
Live fiber detection
Detects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a signal is there. Looks for a signal every 3 seconds after the first detec-tion. +7 dB maximum input power.
Vibration
Random, 5 Hz to 500 Hz, MIL-PRF-28800F CLASS 2
Testing speed
< 6 seconds typical
Distance accuracy (0 m to 1500 m or 0 ft to 4921 ft)
± (1 m + 0. 1 % x length) for reflective incidents || ± (3 m + 0. 1 % x length) for non-reflective incidents
Battery type
2 AA alkaline batteries (no battery charger)
Reflectance accuracy4
± 4 dB
Operating temperature with the battery
0ºC to 50ºC
Maximum reflectance measurement
-20 dB
Non-operating temperature
-20ºC to 60ºC
Connector
Removable/cleanable SC adapter, UPC polish
Dynamic range
>11 dB
Maximum number of incidents shown
9
LCD type
Backlit black and white (segments)
Laser safety
Class 1 CDRH Complies to EN 60825-2
Fiber types tested
50/125 µm or 62. 5/125 µm multimode

Description

Fiber Optic Fault Locator, Calibration Certificate None, Connector Type SC, Adapters Included SC, Alert Type Digital Display, Fiber Mode Measured Multi-Mode, IP Rating Not Applicable, Product Type Fiber Optic Tester, Testing Functions Cable Length Display, Distance to Fault, Auto Power Off Yes, Backlit Digital Display Yes, Battery Chemistry Alkaline, Battery Size AA, Display Screen Type LCD
