Fiber Optic Fault Locator
Application
Automotive Chassis, Heavy Industrial Applications Where The Ptfe Additive Acts As An Additional Lubrication Barrier Against Metal-to-Metal Contact, Industrial - Machinery Tools, Overhead Garage Door Channels, Fan Motors, Slides, Gearsmarine - Cables, Couplings, Gears, Hitches, Winchesautomotive - Hinges, Electrical Antennas, Latches, Springs, Coilsresidential - Implements, Door Channels, Slides, Locksfood Service - All Areas Without Direct Food Contact.
For Use With
Multimode Fiber
Measures
Fiber Verification and Fault Location
Features
Fills The Gap Between a VFL and An OTDR, VFL Simplicity, Identify Live Fiber, Provide Distance and Power Information On High Losses, Breaks At The End of The Fiber
Includes
FT Adapter, LC Adapter, ST Adapter
Calibration Certificate
None
Line Polarity Indicator
No
Standards
CE, CSA, FCC, N10140
Product Type
Fiber Optic Tester
Certifications and Compliance
Conforms to relevant European Union , Listed by the Canadian Standards Association CSA , Conforms to FCC Rules, Part A, Class A , Conforms to relevant Australian standards, C22. 2 No. 61010. 1.04, directives
Laser classification
Class 1 CDRH Complies to EN 60825-2
Live fiber detection
Detects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a signal is there. Looks for a signal every 3 seconds after the first detec-tion. +7 dB maximum input power.
Laser safety
Class 1 CDRH Complies to EN 60825-2
Reflectance accuracy4
± 4 dB
Detection of loss incidents5
0. 70 dB default threshold (user-configurable from 0. 5 dB to 6. 1 dB in 0. 2 dB increments)
Maximum reflectance measurement
-20 dB
Testing speed
< 6 seconds typical
Detection of reflective incidents3
-35 dB default threshold (User selectable: -20 dB to -45 dB in 5 dB increments)
Index of refraction range
1. 45 to 1. 5 (factory default is 1. 496)
Battery life
1500 tests (typical)
Distance accuracy (0 m to 1500 m or 0 ft to 4921 ft)
± (1 m + 0. 1 % x length) for reflective incidents || ± (3 m + 0. 1 % x length) for non-reflective incidents
Operating relative humidity (without condensation)
95% (10ºC to 35ºC) 75% (35ºC to 40ºC) uncontrolled < 10ºC
Auto turn off
Automatically turns off after 5 minutes if no keys are pressed. Backlight turns off first.
Battery type
2 AA alkaline batteries (no battery charger)
Fiber types tested
50/125 µm or 62. 5/125 µm multimode
Vibration
Random, 5 Hz to 500 Hz, MIL-PRF-28800F CLASS 2
Maximum distance
1500 meters or 4921 feet
LCD type
Backlit black and white (segments)
Connector
Removable/cleanable SC adapter, UPC polish
Maximum number of incidents shown
9
Non-operating temperature
-20ºC to 60ºC
Operating temperature with the battery
0ºC to 50ºC
Package Contents

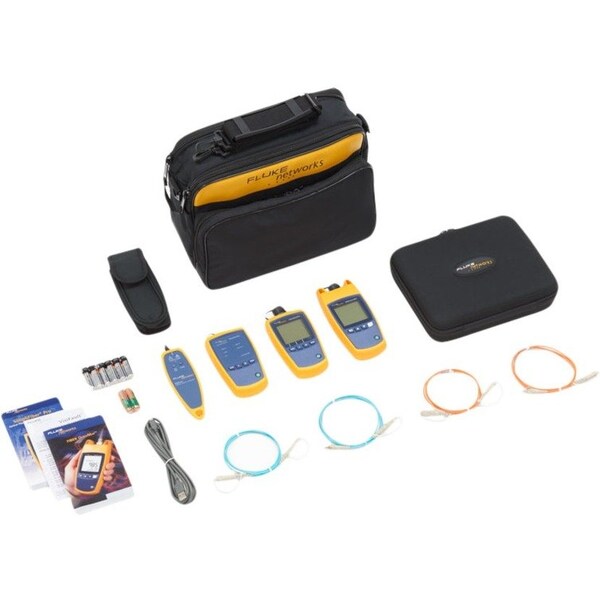

Multimode fiber fault locator unit, Screw on interchangeable SC adapter, UPC-UPC 2-meter patch cord, Carrying case, 4-language Quick Reference Guide (manuals in 9 languages available on-line), Safety instruction manual, Batteries, SimpliFiber Pro optical power meter, Multimode light source, SC adapter
Maximum Operating Humidity
95 %
Battery Chemistry
Alkaline
Alert Type
Digital Display
Fiber Mode Measured
Multi-Mode
Maximum Operating Temperature
122 Degrees F
Backlit Digital Display
Yes
Testing Functions
Cable Length Display, Distance to Fault
Minimum Operating Temperature
32 Degrees F
Adapters Included
FT, LC, ST
Number of Batteries Required
2
