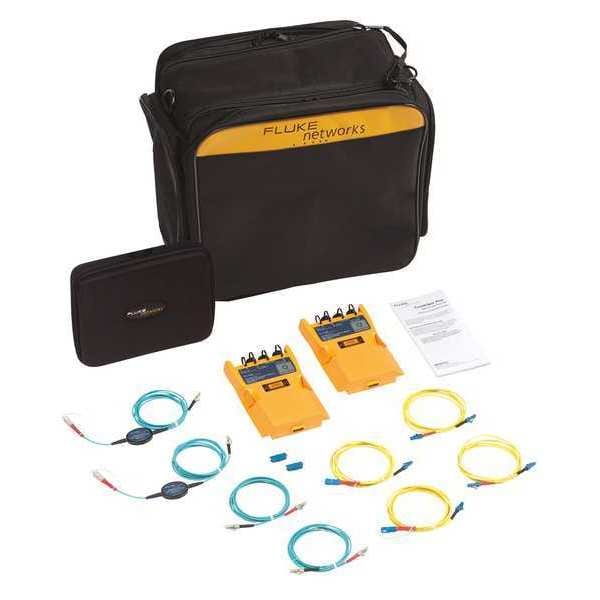

Fluke Networks Fiber Optic Tester, LC Connector CFP-Q-ADD - main

Fiber Optic Tester, LC Connector

  • Mfr # CFP-Q-ADD

  • Zoro # G9871946

product price: $14,459.99
/ea
Free Shipping & Returns

Key Features

Application
Fiber Optic Video Inspection
Display
Yes
Features
Extended Single Mode Distance Range to 130km, Fiber Optic Loss, OTDR Testing and Fiber End Face Inspection, Versiv(TM) Modular Design Supports Copper Certification
Connector Type
FC, SC, ST
Calibration Certificate
Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CFP-Q-ADD
Zoro #
G9871946
UPC #
754082105275
Country of Origin
United States

Dimensions

Source Wavelengths
850 nm, 1300 nm, 1310 nm, 1550 nm
Maximum Length Measurement
12 km || 130 km
Operating wavelength
650 nm nominal
Source Type and Wavelengths
LED source 850 nm ± 30 nm 1300 nm ± 20 nm || Fabry-Perot laser diode 1310 nm ± 20 nm 1550 nm ± 30 nm
Length Measurement Accuracy
± 1. 5 m plus ± 1 % of length
Wavelengths
850 nm, 1300 nm, 1310 nm, 1550 nm
Minimum Wavelength Measurement
850 nm
Maximum Wavelength Measurement
1,550 nm

Details

Item
Fiber Optic Tester
Application
Fiber Optic Video Inspection
Display
Yes
Features
Extended Single Mode Distance Range to 130km, Fiber Optic Loss, OTDR Testing and Fiber End Face Inspection, Versiv(TM) Modular Design Supports Copper Certification
Connector Type
FC, SC, ST
Calibration Certificate
Included
Line Polarity Indicator
No
Waterproof
No
Standards
ANSI/TIA, CSA C22.2 No. 1010.1: 1992, EN 61010-1, EN 61326-1, IEC 61300-3-35, ISO/IEC, ISO/IEC 14763-3
Product Type
Fiber Optic Tester
Output modes
Pulsed mode (2 Hz to 3 Hz blink frequency) || Continuous wave
Output power
>-5 dBm<0 dBmSMF-28 singlemode fiberContinuous waveSC/UPC connector
Connector adapter
2. 5 mm universal
Measurement Linearity3
< ± 0. 1 dB
Output Power Stability3
± 0. 1 dB over 8 hours ± 0. 08 dB over 15 minutes || ± 0. 05 dB over 8 hours ± 0. 03 dB over 15 minutes
Pollution Degree
2
Laser safety
Over operating temperature range || Class II CDRH
Input/Output Connectors
Interchangeable connector adapter (LC standard, SC, ST and FC optional)
Storage Temperature
-10° C to +60° C
Detector Type
InGaAs
Output Power (Nominal)
≥ -24 dBm with EF-TRC || ≥ -4 dBm
Vibration
Random, 2 g, 5 Hz-500 Hz
Shock
1 m drop test with and without module and adapters
Altitude
Operating: 4,000 m; storage: 12,000 m
Operating Temperature
-10° C to 45° C
Testing Speeds (excludes referencing times)
Far End Source mode: ≤2 seconds (2 wavelengths, one direction auto wavelength detection) || Smart Remote mode: < 3 seconds (2 wavelengths, one direction, auto wavelength detection) || Loopback mode: ≤2 seconds (2 wavelengths, one direction auto wavelength detection)
Power Measurement Range
0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths)
Operating Relative Humidity % RH without condensation
% RH without condensation || 0 % to 90 %, 32 °F to 95 °F (0° C to 35° C) || 0 % to 70 %, 95 °F to 113 °F (35° C to 45° C)
Integrated Wi-Fi
Meets IEEE 802. 11 a/b/g/n; dual band (2. 4 GHz and 5 GHz)
Safety
CSA C22. 2 No. 1010. 1: 1992 || EN 61010-1 1st Edition + Amendments 1, 2
Power Measurement Uncertainty1, 2
< +/- 5% +/- 32 pW
Power Measurement Uncertainty1,2
< +/- 5% +/- 32 pW
Input Connector
Interchangeable connector adapter (LC standard, SC, ST and FC optional)
Fiber types tested
50/125 µm or 62. 5/125 µm || singlemode
Display Screen Type
LED
Fiber Mode Measured
Multi-Mode, Single-Mode
Includes Software
Yes
Testing Functions
Optical Power Loss
Minimum Power Measurement
-65 dBm
Adapters Included
2.50 mm, LC
Alert Type
Light
Maximum Operating Temperature
73 Degrees F
Maximum Power Measurement
0 dBm
Maximum Operating Humidity
90 %

Description

Fiber Optic Tester, Calibration Certificate Included, Connector Type FC, SC, ST, Adapters Included 2.50 mm, LC, Alert Type Light, Fiber Mode Measured Multi-Mode, Single-Mode, IP Rating Not Applicable, Product Type Fiber Optic Tester, Testing Functions Optical Power Loss, Display Screen Type LED, Features Extended Single Mode Distance Range to 130km, Fiber Optic Loss, OTDR Testing and Fiber End Face Inspection, Versiv(TM) Modular Design Supports Copper Certification, Includes Software Yes
