Fluke Networks Fiber Optic Tester, LCD, USB FI2-7000 - main

Fiber Optic Tester, LCD, USB

  • Mfr # FI2-7000

  • Zoro # G0250367

product price: $4,815.19
/ea
Free Shipping & Returns

Key Features

Application
Fiber Optic Video Inspection
Display
LCD
For Use With
Fiber Optic Cables
Measures
Power Range, Wavelength
Features
Automated Pass/Fail Acceptance Testing of Fiber End Faces, Large Touchscreen for Pinch and Zoom, Graphical Indication of Problem Areas, Certify to Industry Standards, Eliminates Human Subjectivity From End Face Measurements, Save End Face Views During Certification Process
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FI2-7000
Zoro #
G0250367
UPC #
754082145035
Country of Origin
United States

Dimensions

Minimum detectable particle size
0. 5 µm
Dimensions
Mainframe with module and battery: 2. 625 in x 5. 25 in x 11. 0 in ( 6. 67 cm x 13. 33 cm x 27. 94 cm), Approximately 6. 75 in x 1. 5 in (1175 mm x 35 mm) without adapter tip
Depth
2.6"
Height
11"
Width
5.3"

Details

Item
Fiber Optic Tester
Application
Fiber Optic Video Inspection
Display
LCD
For Use With
Fiber Optic Cables
Measures
Power Range, Wavelength
Features
Automated Pass/Fail Acceptance Testing of Fiber End Faces, Large Touchscreen for Pinch and Zoom, Graphical Indication of Problem Areas, Certify to Industry Standards, Eliminates Human Subjectivity From End Face Measurements, Save End Face Views During Certification Process
Includes

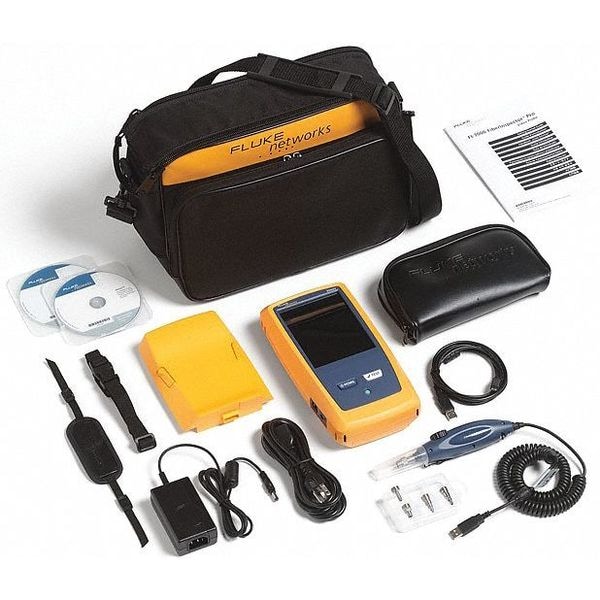

1.25 mm Tip, 2.5 mm Tip, AC Charger, Blank Module, FC/SC Bulkhead, LC Adapter, Shoulder Strap, Carrying Case, USB Interface Cable, USB Video Inspection Camera
Connector Type
FC, LC, MPO, SC
Adapter Type
USB
Calibration Certificate
None
Waterproof
No
Line Polarity Indicator
No
Standards
IEC 61300-3-35
Product Type
Fiber Optic Inspection Camera
Non-operating temperature
-30ºC to 60ºC
2M pixels
Blue LED
Light source
Blue LED
Field of View (FOV)
Horizontal: 425 µm || Vertical: 320 µm
Power source
Versiv mainframe
Storage altitude
12,000 m
Temperature range
Operating: 32°F to 122°F (0 °C to +50 °C) || Storage: -4°F to +158°F (-20°C to +70°C)
Certifications
CE
Operating altitude
4,000 m (13123 ft) || 3200 m (10,500 ft) with ac adapter
Integrated Wi-Fi
Meets IEEE 802. 11 a/b/g/n; dual band (2. 4 GHz and 5 GHz)
Battery life
Eleven hour with Inspection probe attached
Tester On
Six hours to charge from 10% to 90% capacity with the tester on
Battery
Lithium ion battery pack, 7. 2 volts
Operating temperature
-18ºC to 45ºC
Tester Off
Four hours to charge from 10% to 90% capacity
Product Line
FiberInspector Pro
Device Function
Fiber Optic Cable Testing, Twisted Pair Cable Testing, Cable Testing, OTDR Testing
USB
Yes
Battery Chemistry
Lithium Ion
Wireless LAN
Yes
Product Series
FI-7000
Product Name
FI2-7000 FiberInspector Pro Cable Analyzer
Alert Type
Digital Display
Fault Location Pulse Duration
2 sec
Maximum Operating Temperature
122 Degrees F
Testing Functions
Fiber Optic Video Inspection
Number of Batteries Required
1
Includes Software
Yes
Display Screen Type
LED
Auto Power Off
Yes
Fiber Mode Measured
Single-Mode
Minimum Operating Temperature
32 Degrees F
Adapters Included
1.25 mm, 2.50 mm, FC, LC, SC
Includes Batteries
Yes

Description

Fiber Optic Tester, Calibration Certificate None, Connector Type FC, LC, MPO, SC, Adapters Included 1.25 mm, 2.50 mm, FC, LC, SC, Alert Type Digital Display, Fault Location Pulse Duration 2 sec, Fiber Mode Measured Single-Mode, IP Rating Not Applicable, Product Type Fiber Optic Inspection Camera, Testing Functions Fiber Optic Video Inspection, Auto Power Off Yes, Battery Chemistry Lithium Ion, Display Screen Type LED

Restrictions

Hazardous material
