This item is Discontinued.

Fluke Networks

Pocket Toner (Discontinued)

Mfr # PTNX8-VV-PRO
Zoro # G4225392

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Specifications

Product Information

MFR #

PTNX8-VV-PRO

Zoro #

G4225392

UPC #

754082085836

Country of Origin

Malaysia

Dimensions

Cable Length Display

Depth

0.6"

Height

5.4"

Battery Size Supported

AAA

Battery Size

AAA

Maximum Cable Length

1,000 ft

Details

Item

Pocket Toner

Display

8-segment LED

Primary Function

Copper Cable Tracing (Tone)

Application

Continuity, AC and DC Voltage, Shorts, Opens and 50-75 Ohm termination - 8x Faster

For Use With

Voice, Data and Video Cables

Features

Bi-gender toner unit with Speed 81, LED,Low-voltage Circuit Protection,Auto shutoff feature

Instrument Display

None

Includes

(8) ID Caps, Deluxe Case with Belt Clip, Dial Tone Detective(TM)

Connector Type

Alligator Clips

Adapter Type

66 Block, BNC, F-Type, RCA, RJ11, RJ45

Calibration Certificate

Not Included

Standards

CSA C22.2 No. 61010.1.04, N10140, US Listed

PoE/PoE+ Detection

Cable Certification

Line Polarity Indicator

Endpoint Testing

Ethernet Service Detection

Pair Tracing

Service Detection

Data Line Polarity Indicator

Yes

Telephone Service Detection

Yes

Impedance Detection

Distance to Fault

WiFi Capability

Tone Detection

Cable Speed Qualification

Wiremapping

Waterproof

Opens/Shorts Detection

Yes

Continuity Testing

Yes

Crosstalk Detection

Tone Generator

Output Amplitude

3.6 V DC

Data Safe Monitor

Product Type

Tone Generator

Output voltage in continuity mode

3. 6 Vdc (with a new battery)

Auto shut-off

10 minutes

Relative Humidity

5 % to 95 % (non-condensing)

Battery type

1. 5 V AAA alkaline

Toner frequency

Main unit: 2. 7 kHz. Toner cap: 2. 3 kHz

Approximate distance

RG6: 300 m (1,000 ft)

Storage Temperature

-30 °C to +70 °C

Maximum input voltage

60 Vdc

Altitude

3,000 m (10,000 ft) maximum

Operating Temperature

-20 °C to +65 °C

Wireless LAN

Input Voltage

3.6 V DC

Certifications & Standards

CE, CSA C22.2 No. 61010.1.04

Serial Port

USB

Token Ring Port

Status Indicators

Dual audible indicators in the main body

Audio Line Out

HDMI

Serial V.35 Interface

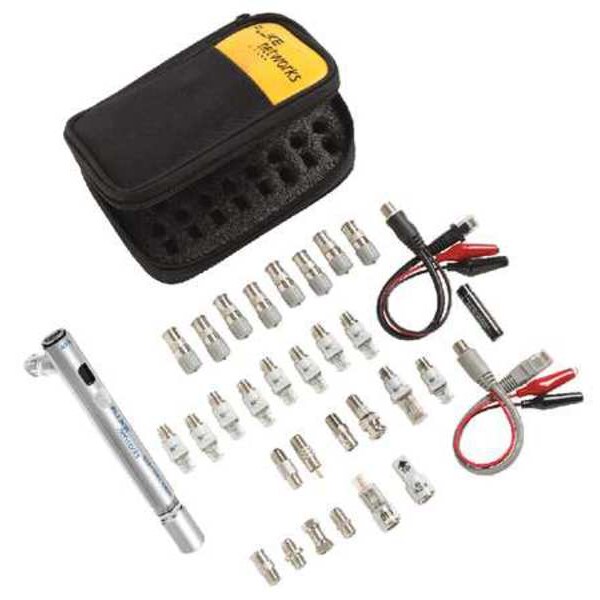

Package Contents

NX8 Unit, Toner, 8 x ID Caps, 66 Block Adapter, 8 x RJ-11 Adapter, Dial Tone Detective, Alligator Clips with RJ-11 Adapter and RJ-45 Adapter, F-type (F, 9-M-Push, M-71, Speed 81) Adapters, RCA (M, F) Adapters, BNC (M, F) Adapters, 1 x AAA Battery, Deluxe Case with Belt Clip

Device Function

Open Circuit Testing, Short Circuit Testing

DVI

VGA

Touchscreen

Product Line

Pocket Toner

Number of Batteries Supported

Product Name

Pocket Toner NX8 Voice and Video Pro Kit

Network (RJ-45)

PoE (RJ-45) Port

Data Logger

Port Number Display

Auto Power Off

Yes

Number of Batteries Required

Maximum Impedance Measured

75 ohm

Compatible Cable Type

Coax

Maximum DC Voltage Measured

3.6 V DC

Testing Functions

Continuity Testing, Line Polarity Indication, Tone Detection

Wire Mapping Detections

Opens, Shorts

Battery Chemistry

Alkaline

Maximum Operating Temperature

149 Degrees F

Includes Batteries

Yes

Display Screen Type

LED

Minimum Operating Temperature

-4 Degrees F

Adapters Included

66 Block, BNC, F-Type, RCA, RJ11, RJ45

Alert Type

Digital Display, Sound, Vibration

Display Type

Digital

Maximum Operating Humidity

95 %

Description

Pocket Toner, Testing Functions Continuity Testing, Line Polarity Indication, Tone Detection, Adapters Included 66 Block, BNC, F-Type, RCA, RJ11, RJ45, Connector Type Alligator Clips, Maximum Speed Measured Not Applicable, Data Safe Monitor No, Display Screen Type LED, For Use With Voice, Data and Video Cables, Includes (8) ID Caps, Deluxe Case with Belt Clip, Dial Tone Detective(TM), Maximum Cable Length 1,000 ft, Fault Location Pulse Duration Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
