Probe Kit, RJ11/RJ45 Connector Type

Probe Kit, RJ11/RJ45 Connector Type

Mfr # PRO3000F60-KIT
Zoro # G2153473

$217.99

Free Shipping & Returns

Key Features

For Use With

Telephone Jacks

Primary Function

Copper Cable Tracing (Tone & Probe Kit)

Instrument Display

None

Connector Type

RJ11

Includes

60 Hz Filter, Carrying Case

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

PRO3000F60-KIT

Zoro #

G2153473

UPC #

754082146025

Country of Origin

Malaysia

Dimensions

Cable Length Display

Battery Size Supported

Proprietary Battery Size

Maximum Cable Length

10 mi

Details

Item

Tone and Probe Kit

For Use With

Telephone Jacks

Primary Function

Copper Cable Tracing (Tone & Probe Kit)

Instrument Display

None

Connector Type

RJ11

Includes

60 Hz Filter, Carrying Case

Adapter Type

RJ11, RJ45

Special Features

(5) Different Cadence, Tones Up to 10 Miles

Calibration Certificate

Not Included

Endpoint Testing

Yes

Impedance Detection

Tone Generator

Yes

Wiremapping

Eithernet Service Detection

Yes

WiFi Capability

Pair Tracing

Yes

Opens/Shorts Detection

Cable Certification

Crosstalk Detection

Endponit Testing

Yes

Data Line Polarity Indicator

Cable Speed Qualification

Telephone Service Detection

Yes

Ethernet Service Detection

Yes

Service Detection

Distance to Fault

Continuity Testing

Yes

Tone Detection

Yes

PoE/PoE+ Detection

Data Safe Monitor

Waterproof

Output Amplitude

8 V DC

Product Type

Tone Generator and Probe Kit

Voltage

60V DC

Solid Frequency

1000 Hz nominal

Alternating Frequency

1000/1500 Hz nominal

User interface

Tone mode LED || Slide switch selects Continuity or Tone Mode || Push button switch selects SOLID, ALT or OFF || Continuity/Polarity LED, Volume dial || ON/OFF push button || 3. 5 mm earphone jack || Replaceable tip

Over Voltage Protection

60 Vdc in Toner/Polarity Mode

Battery

9V alkaline

Output Voltage Level in Continuity Mode

8 Vdc with fresh battery

Output Power in Tone Mode

8 dbm into 600 ohms

Temperature

Operating: -20° C to 60° C, Storage: -40° C to 70° C

Additional Information

Pro 3000 Toner Specifications: User Interface: Slide Switch selects Continuity or Tone Mode Push button switch selects SOLID, ALT, or OFF Tone mode LED Continuity/Polarity LED, Solid Frequency: 1000 Hz nominal, Alternating Frequency: 1000/1500 Hz nominal, Over Voltage: Protection/td> 60 Vdc in Toner/Polarity Mode, Output Power in Tone Mode: 8 dbm into 600 ohms, Output Voltage Level in Continuity Mode: 8 Vdc with fresh battery, Battery: 9V alkaline, Temperature: Operating: -20°C to 60°C, Storage: -40° to 70° C, Dimensions: 2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm) Pro3000F Filtered Probe Specifications: User Interface: ON/OFF button (Push 1 second to activate, Press to turn off, Auto-off after 5 minutes) Filtered/Unfiltered Mode Button with LED (Green = Filtered, Red = Unfiltered) Volume dial Replaceable tip 3.5 mm earphone jack, Frequencies filtered: Pro3000F60 Probe: 60 Hz and its harmonic frequencies Pro3000F50 Probe: 50 Hz and its harmonic frequencies, Battery: 9V alkaline, Temperature: Operating: -20° C to 60° C, Storage: -40° to 70° C, Dimensions: 9.8 in. x 1.6 in. x 1.3 in. (24.9 cm x 4.1 cm x 3.3 cm)

Package Contents

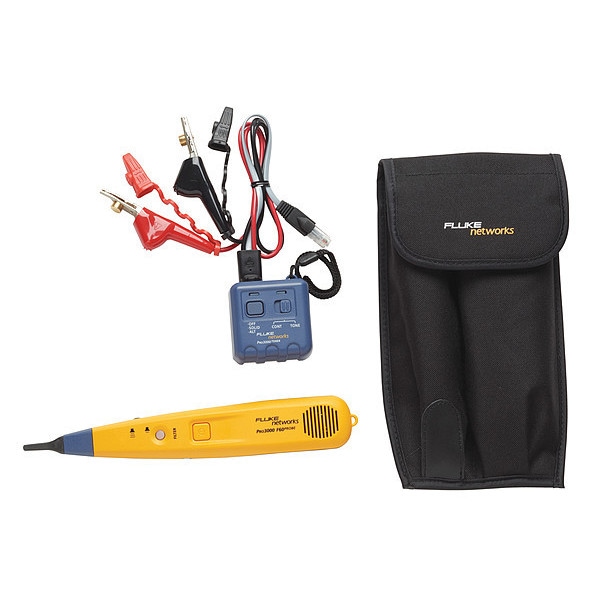

Pro3000F Filtered Probe (60 Hz) and Tone Generator Kit, Nylon Pouch

Product Line

Pro3000

Product Name

Pro3000F Filtered Probe (60 Hz) and Tone Generator Kit

Device Function

Cable Signal Testing, Telephone Cable Testing, Short Circuit Testing, Open Circuit Testing, Continuity Testing

Battery Chemistry

Alkaline

Adapters Included

RJ11

Maximum Impedance Measured

600 ohm

Data Logger

Port Number Display

Maximum Operating Temperature

140 Degrees F

Minimum Operating Temperature

-4 Degrees F

Wire Mapping Detections

Opens, Shorts

Display Screen Type

LED

Includes Batteries

Yes

Testing Functions

Tone Detection, Tone Generation

Alert Type

Light

User interface (Probe)

ON/OFF push button Volume dial Replaceable tip 3.5 mm earphone jack

User interface (Toner)

Slide switch selects Continuity or Tone Mode Push button switch selects SOLID, ALT or OFF Tone mode LED Continuity/Polarity LED

Operating Voltage

60V DC

Description

Tone and Probe Kit, Testing Functions Tone Detection, Tone Generation, Adapters Included RJ11, Connector Type RJ11, Data Safe Monitor No, Display Screen Type LED, For Use With Telephone Jacks, Includes 60 Hz Filter, Carrying Case, Maximum Cable Length 10 mi, Wire Mapping Detections Opens, Shorts, Alert Type Light, Port Number Display No, Waterproof No, Product Type Tone Generator and Probe Kit, Operating Voltage 60V DC, Calibration Certificate Not Included, Maximum Impedance Measured 600 ohm
