Fluke Networks

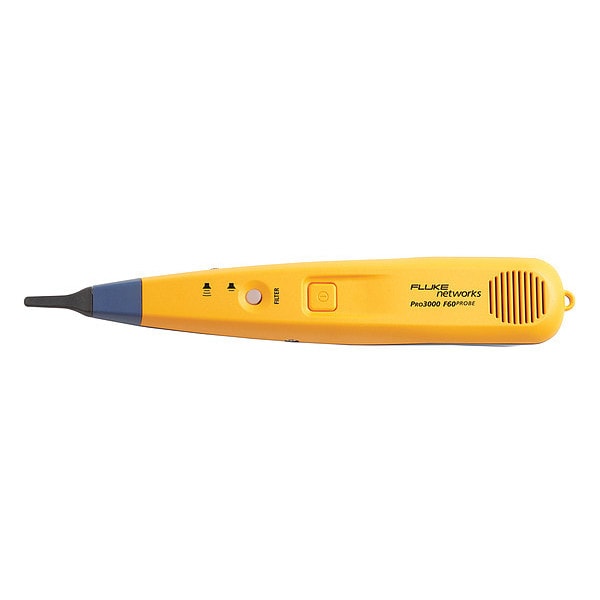

Probe, RJ11/RJ45 Connector Type

product price: $158.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Promotion Restriction Not eligible for promotion
  • For Use With Telephone Jacks
  • Primary Function Copper Cable Tracing (Probe)
  • Instrument Display None
  • Connector Type RJ11
See all product information

Product Information

Dimensions

Cable Length Display No
Maximum Cable Length 10 mi

Details

Promotion Restriction Not eligible for promotion
Item Probe
For Use With Telephone Jacks
Primary Function Copper Cable Tracing (Probe)
Instrument Display None
Connector Type RJ11
Includes 60 Hz Filter
Adapter Type RJ11, RJ45
Special Features (5) Different Cadence, Tones Up to 10 Miles
Calibration Certificate Not Included
Endponit Testing Yes
Pair Tracing Yes
Eithernet Service Detection No
Ethernet Service Detection No
Cable Certification No
Cable Speed Qualification No
Wiremapping No
WiFi Capability No
PoE/PoE+ Detection No
Tone Detection Yes
Tone Generator Yes
Telephone Service Detection Yes
Distance to Fault No
Endpoint Testing Yes
Crosstalk Detection No
Service Detection No
Data Line Polarity Indicator No
Impedance Detection No
Opens/Shorts Detection No
Continuity Testing Yes
Data Safe Monitor No
Waterproof No
Product Type Probe
Output Power in Tone Mode 8 dbm into 600 ohms
User interface Volume dial || ON/OFF push button || 3. 5 mm earphone jack || Replaceable tip, Tone mode LED || Slide switch selects Continuity or Tone Mode || Push button switch selects SOLID, ALT or OFF || Continuity/Polarity LED
Battery 9V alkaline
Temperature Operating: -20° C to 60° C, Storage: -40° C to 70° C
Over Voltage Protection 60 Vdc in Toner/Polarity Mode
Output Voltage Level in Continuity Mode 8 Vdc with fresh battery
Alternating Frequency 1000/1500 Hz nominal
Solid Frequency 1000 Hz nominal
Minimum Operating Temperature -4 Degrees F
Wire Mapping Detections Opens, Shorts
Alert Type Light
Maximum Operating Temperature 140 Degrees F
Display Screen Type LED
Data Logger No
Port Number Display No
Includes Batteries Yes
Battery Chemistry Alkaline
Testing Functions Tone Detection
Adapters Included RJ11

Description

Probe, Testing Functions Tone Detection, Adapters Included RJ11, Connector Type RJ11, Data Safe Monitor No, Display Screen Type LED, For Use With Telephone Jacks, Includes 60 Hz Filter, Maximum Cable Length 10 mi, Wire Mapping Detections Opens, Shorts, Alert Type Light, Port Number Display No, Waterproof No, Product Type Probe, Operating Voltage 60V DC, Calibration Certificate Not Included, Data Logger No, Battery Chemistry Alkaline
